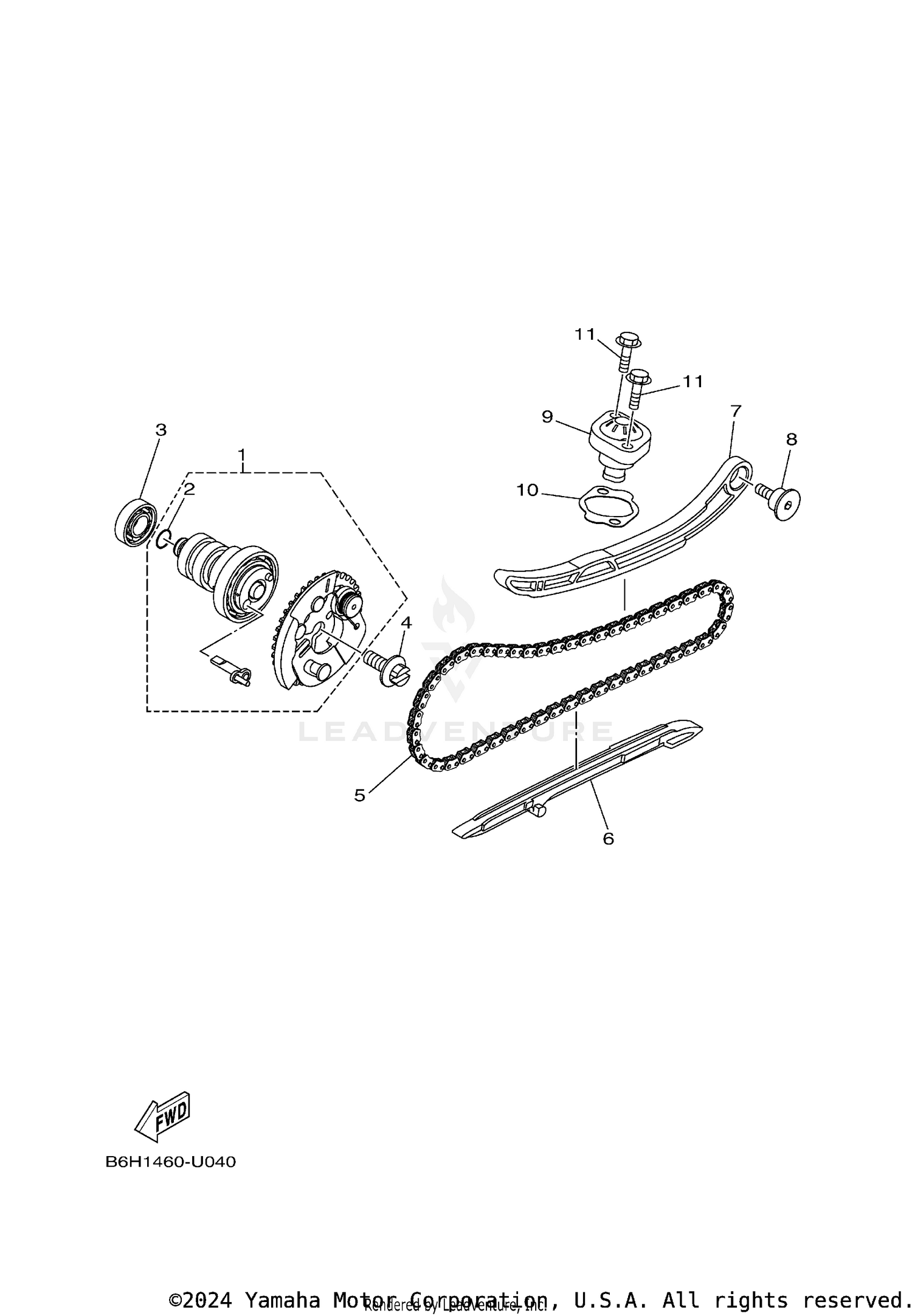

Camshaft & Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT AND DECOMPRESSION SET
BKG-WE228-00-00
|
|||
|
Unavailable |
|||
|
#2
. .O-RING
93210-09806-00
|
$0.60 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-001YM-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
BOLT
5YP-E2157-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
CHAIN
94568-A8096-00
|
$137.99 | ||
|
Unavailable |
|||
|
#6
GUIDE, STOPPER 1
B6H-E2231-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
GUIDE, STOPPER 2
B6H-E2241-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
BOLT
1DB-E2228-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
TENSIONER ASSY, CAM CHAIN
2PV-E2210-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#10
GASKET, TENSIONER CASE
B6H-E2213-00-00
|
$0.80 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE DEEP RE
95E32-06020-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
