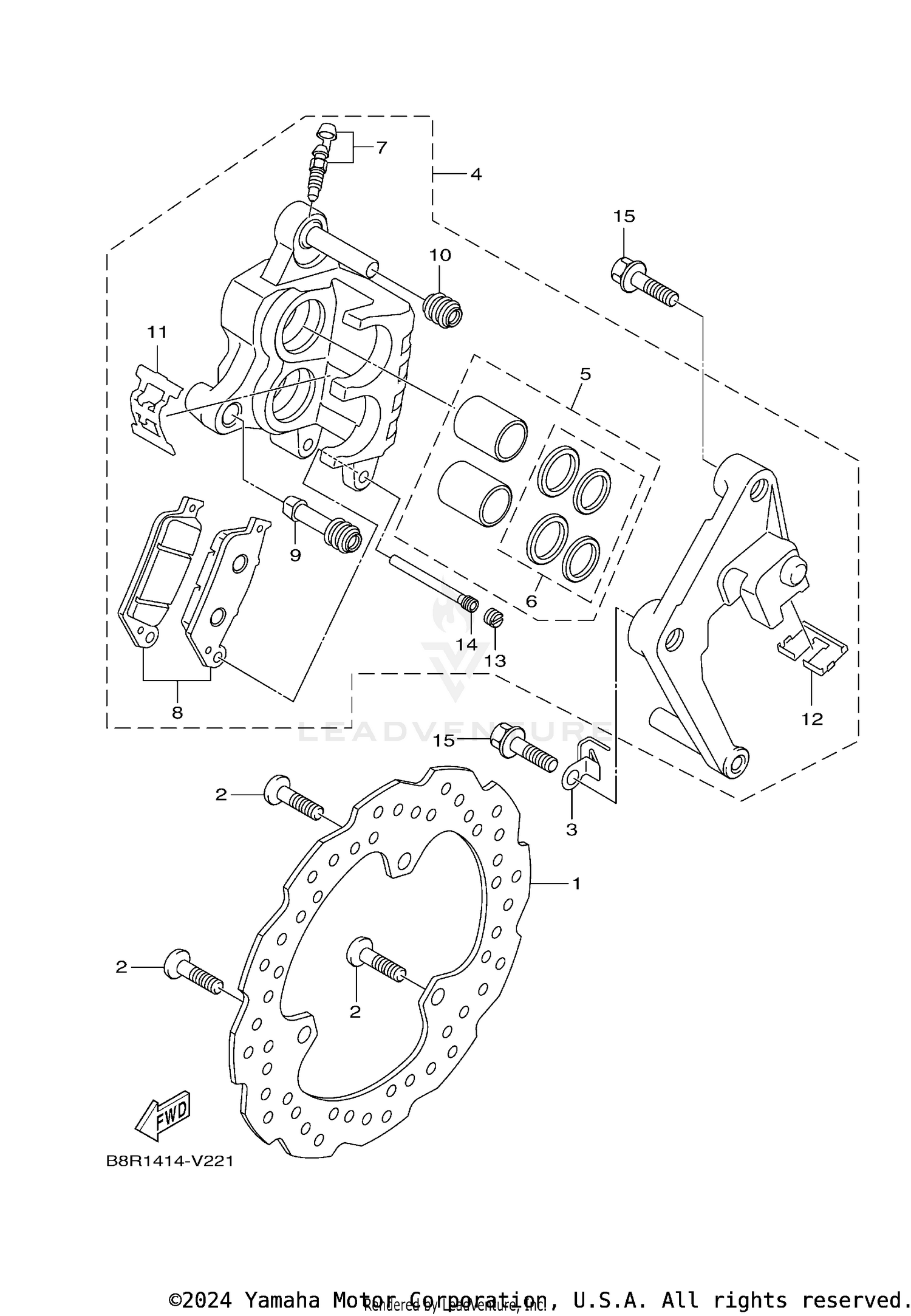

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK, BRAKE (RIGHT
B8R-F582U-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-08232-00
|
$1.60 | ||
|
Unavailable |
|||
|
#3
HOLDER, CABLE
B8R-F3317-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
CALIPER ASSY (RIGH
B8R-F580U-00-00
|
$235.99 | ||
|
Unavailable |
|||
|
#5
PISTON ASSY, CALIP
5NW-W0057-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#6
. . ..CALIPER SEAL KIT
5NW-W0047-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#7
. .BLEED SCREW KIT
2JS-W0048-20-00
|
$2.30 | ||
|
Unavailable |
|||
|
#8
BRAKE PAD KIT
B8R-W0045-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#9
BOOT, CALIPER
5ML-F5927-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT 2
5ML-F5937-00-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUPPORT, PAD
1MS-F5919-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT, PAD
1MS-F5919-10-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, BLIND
2JS-F5139-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SLIDE
2JS-F5914-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WASHER BASED
90105-10638-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
