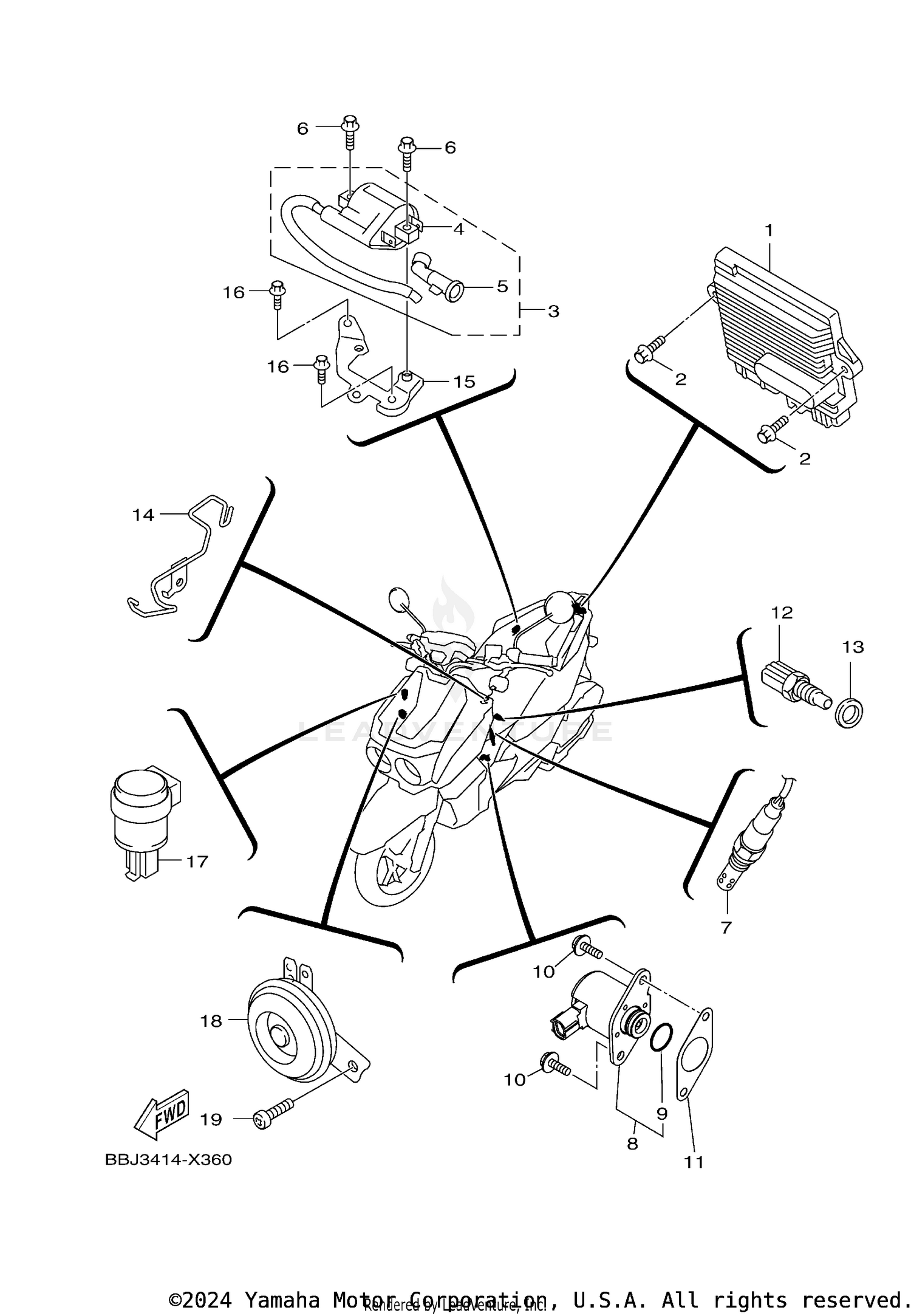

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER GEN. CONT. UNIT ASSY
BJC-H594A-00-00
|
$451.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE DEEP RECESS
95D32-06020-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL SUB
B8R-H2301-00-00
Superseded by B8R-H2301-01-00
|
$72.99 | ||
|
Unavailable |
|||
|
#4
. .IGNITION COIL ASSY
2TS-H2310-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#5
PLUG CAP ASSY
2DP-H2370-00-00
Superseded by 2DP-H2370-10-00
|
$37.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
90105-068C7-00
|
$1.49 | ||
|
Unavailable |
|||
|
#7
SENSOR, OXYGEN
B8R-H592A-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#8
SOLENOID
BK6-H6110-10-00
|
$118.99 | ||
|
Unavailable |
|||
|
#9
O-RING
BK6-H1847-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#10
BLOT, FLANGE DEEP RE
95D32-06016-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
2DP-H1861-00-00
|
$3.60 | ||
|
Unavailable |
|||
|
#12
THERMO UNIT
52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-10806-00
|
$0.60 | ||
|
Unavailable |
|||
|
#14
GUIDE
B8R-E8179-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
STAY 1
B8R-E5544-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-068D4-00
|
$2.05 | ||
|
Unavailable |
|||
|
#17
FLASHER RELAY ASSY
5CA-H3350-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HORN
BH6-H3371-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#19
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
