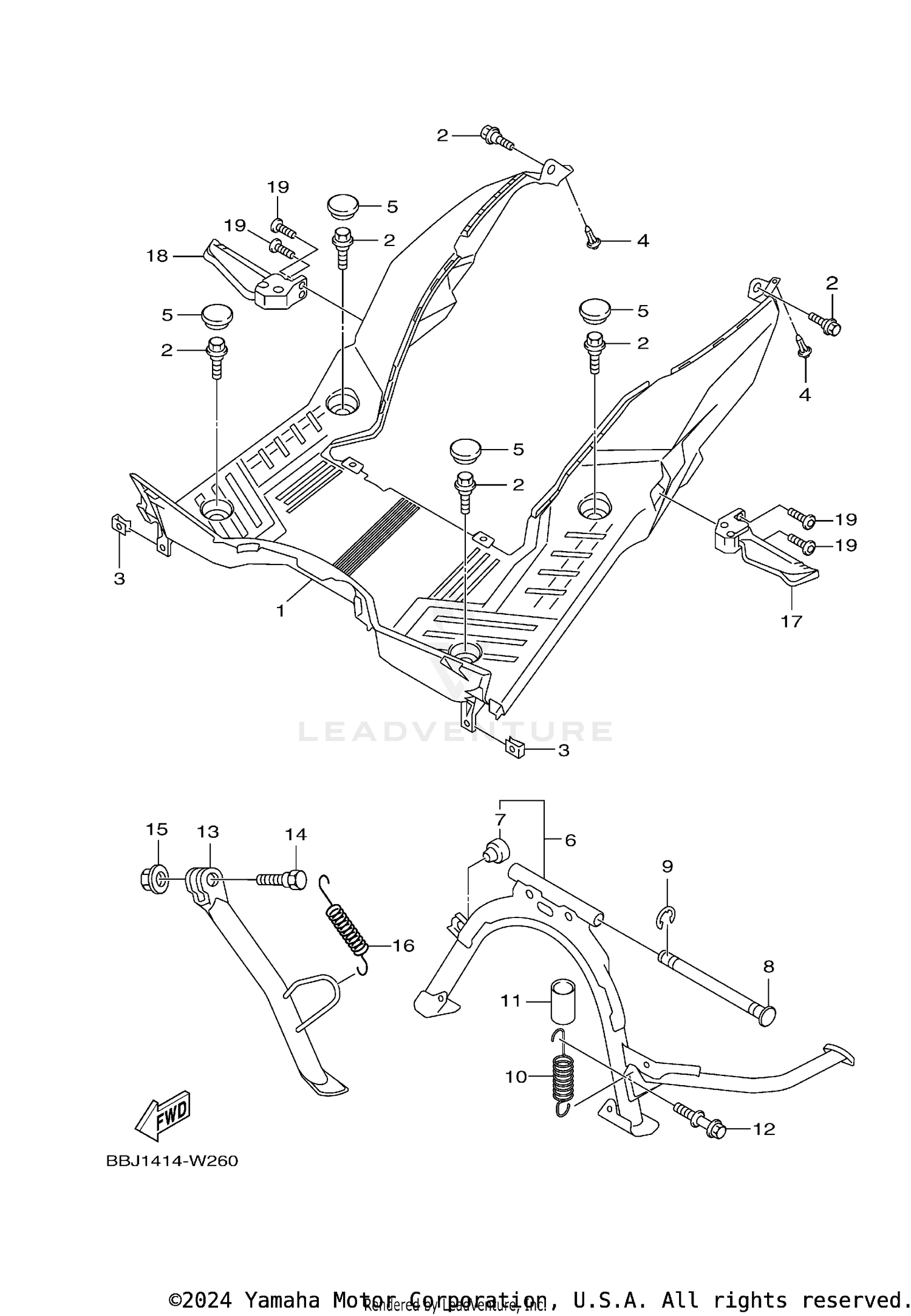

Stand & Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOARD, FOOTREST
BBJ-F7481-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-06885-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIVET
90269-06803-00
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CAP 1
5HK-F7475-00-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAIN STAND
B8R-XF711-01-33
Superseded by B8R-WF711-01-00
|
$109.99 | ||
|
Unavailable |
|||
|
#7
. .STOPPER, MAIN STAND
BKG-F7114-00-00
|
$2.40 | ||
|
Unavailable |
|||
|
#8
SHAFT, MAIN STAND
2BM-F7112-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#9
CIRCLIP (E) (99001-09600-00)
99002-09600-00
Superseded by 99080-09600-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-35807-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
HOSE 3
B8R-F247C-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#12
HOOK
5ML-F7254-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#13
STAND, SIDE
BJC-F7311-00-33
Superseded by BJC-F7311-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90109-10005-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10110-00
Superseded by 90185-10120-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING, TENSION
90506-26815-00
|
$4.80 | ||
|
Unavailable |
|||
|
#17
FOOTREST, REAR 1
BBJ-F7431-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#18
FOOTREST, REAR 2
BBJ-F7441-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#19
BOLT, BUTTON HEAD
92012-08020-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
