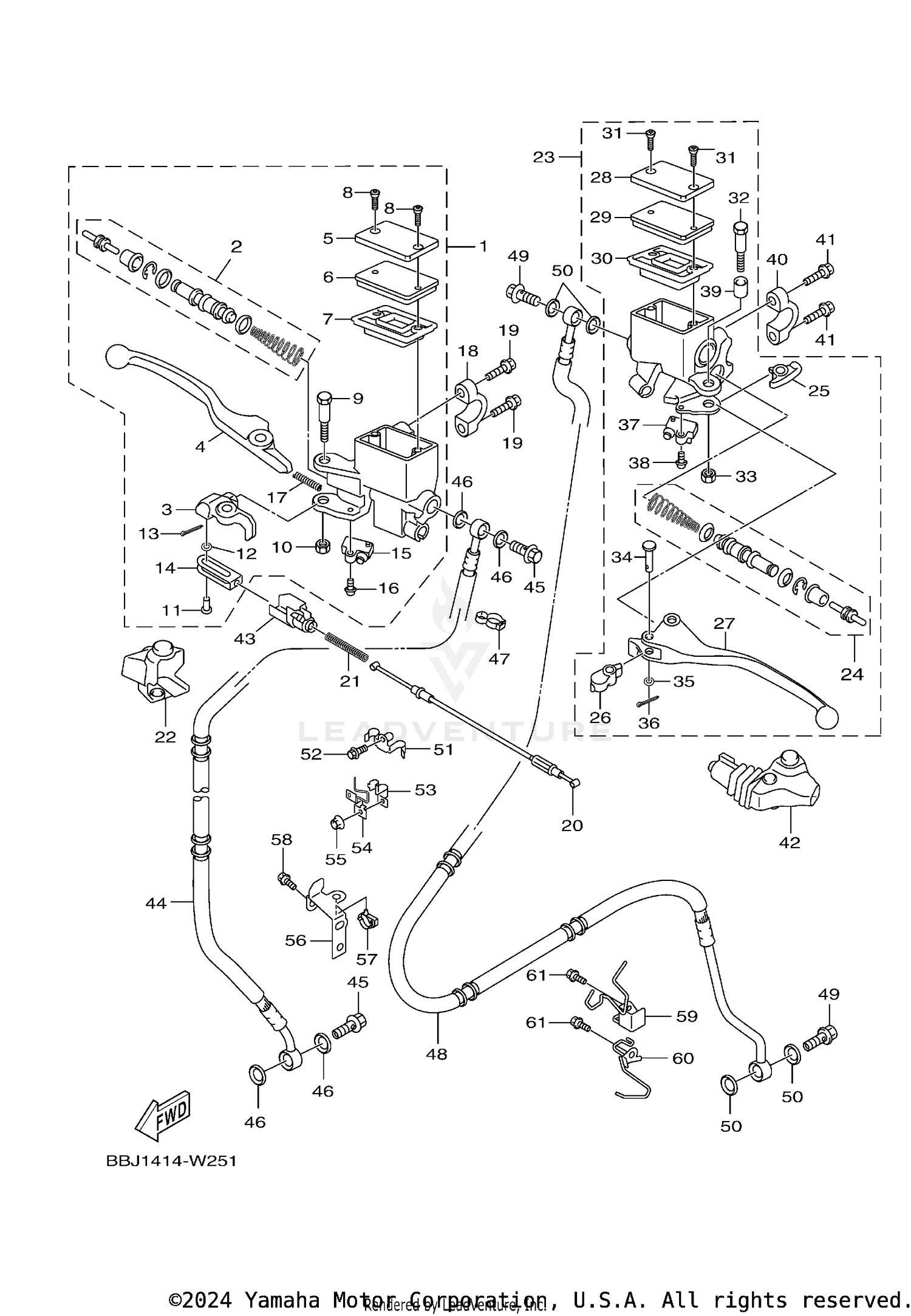

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
BBJ-F5870-00-00
Superseded by BBJ-F5870-01-00
|
$117.99 | ||
|
Unavailable |
|||
|
#2
. .CYLINDER KIT, MASTER
BBJ-W0041-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#3
. .KNOCKER
2CM-F6168-10-00
|
$50.99 | ||
|
Unavailable |
|||
|
#4
LEVER 2
B8R-H3922-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#5
. .CAP, RESERVOIR
2CM-F5852-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#6
. .BUSH,DIAPHRAGM
2CM-F5855-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
. .DIAPHRAGM, RESERVOIR
2CM-F5854-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#8
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
. .BOLT, LEVER
2CM-F589F-10-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN,CLEVIS
90240-06M18-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE (T=0.5)
90201-061H1-00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
. .JOINT, CABLE
2CM-F6347-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
STOP SWITCH ASSY
36Y-82917-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD WITH WASHER
97602-04214-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10312-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BRACKET, MASTER CYLINDER
3GF-F5867-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WIRE, BRAKE 1
BBJ-F6341-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#21
SPRING, COMPRESSIO
90501-08804-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
COVER, HANDLE LEVER 2
BBJ-F637A-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#23
MASTER CYLINDER SUB ASSY
BBJ-F5870-10-00
|
$199.99 | ||
|
Unavailable |
|||
|
#24
. .CYLINDER KIT, MASTER
BBJ-W0041-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#25
. .KNOCKER
2CM-F6168-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#26
. .EQUALIZER, BRAKE
2CM-F5681-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#27
LEVER 1
B8R-H3912-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#28
. .CAP, RESERVOIR
2CM-F5852-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#29
. .BUSH,DIAPHRAGM
2CM-F5855-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
. .DIAPHRAGM, RESERVOIR
2CM-F5854-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#31
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#32
. .BOLT, LEVER
53B-F589F-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
. .NUT, COVER
53B-F586F-00-00
|
$1.40 | ||
|
Unavailable |
|||
|
#34
PIN, CLEVIS
91702-06028-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE (T=0.5)
90201-061H1-00
|
$4.72 | ||
|
Unavailable |
|||
|
#36
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Unavailable |
|||
|
#37
FRONT STOP SWITCH ASSY
36Y-83980-01-00
Superseded by J45-82503-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD WITH WASHER
97602-04214-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
. .COLLAR, LEVER 1
53B-H3913-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#40
BRACKET, MASTER CYLINDER
3GF-F5867-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Unavailable |
|||
|
#42
COVER, HANDLE LEVER 1
BBJ-F6372-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#43
COVER MASTER CYLINDER
BBJ-F585C-00-00
|
$1.10 | ||
|
Unavailable |
|||
|
#44
HOSE, BRAKE 1
BBJ-F5872-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#45
BOLT, UNION
90401-10805-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-16802-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE, BRAKE 2
BBJ-F5873-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#49
BOLT, UNION
90401-10805-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Unavailable |
|||
|
#50
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Unavailable |
|||
|
#51
HOLDER, BRAKE HOSE 4
BBJ-F587A-00-00
|
$3.80 | ||
|
Unavailable |
|||
|
#52
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
HOLDER, BRAKE HOSE 1
BBJ-F5875-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#54
HOLDER, BRAKE HOSE 1
BBJ-F5875-10-00
|
$2.25 | ||
|
Unavailable |
|||
|
#55
NUT, CROWN
90176-06055-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
HOLDER
B8R-F5522-00-00
|
$4.05 | ||
|
Unavailable |
|||
|
#57
CLAMP
90464-16803-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT, FLANGE DEEP
95D02-06012-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#59
HOLDER, BRAKE HOSE 5
B8R-F588F-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#60
HOLDER, BRAKE HOSE 5
B8R-F588F-10-00
|
$9.99 | ||
|
Unavailable |
|||
|
#61
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
