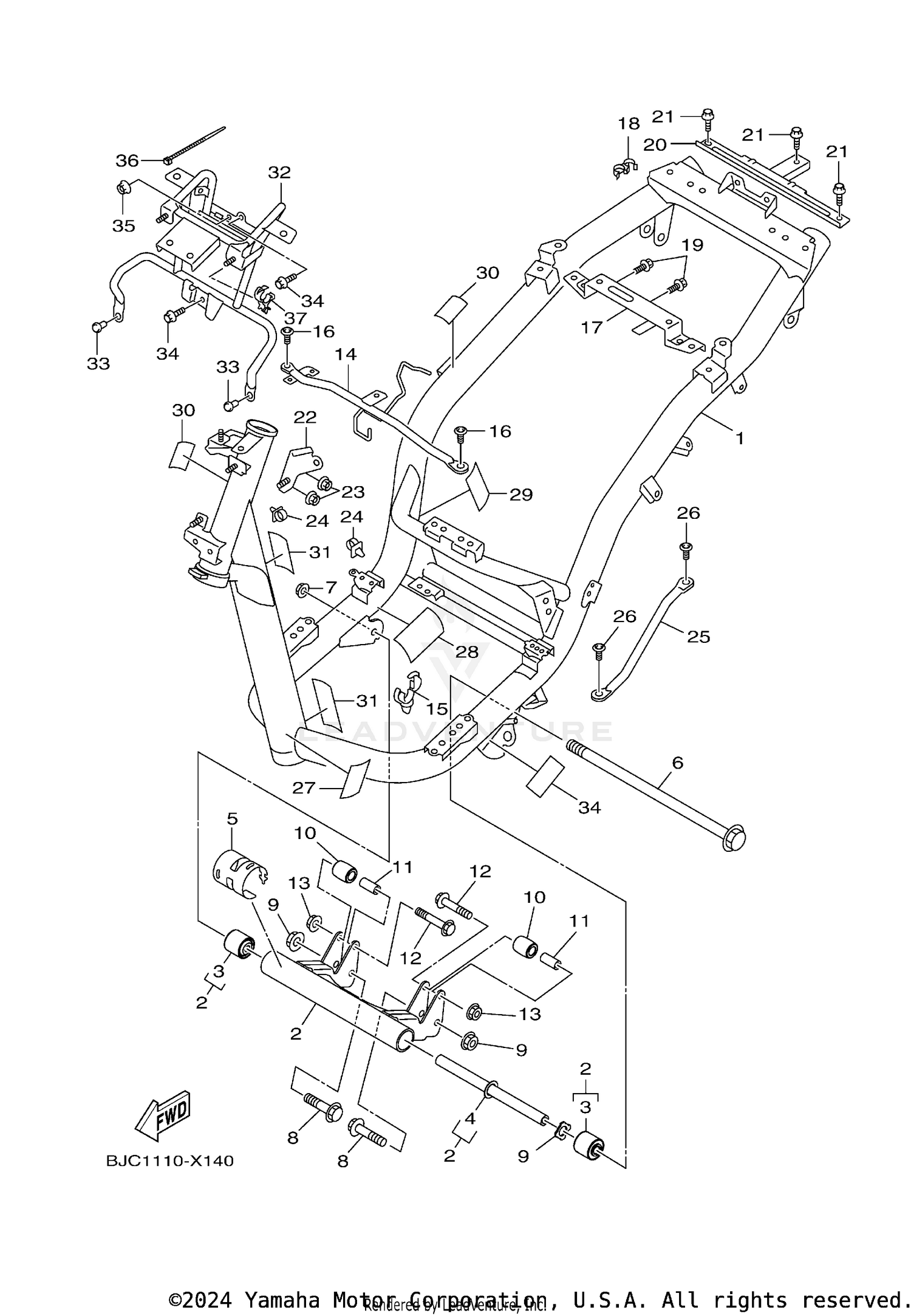

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
BJC-F1110-00-33
|
$371.99 | ||
|
Unavailable |
|||
|
#2
ENGINE BRACKET COMP.
B8R-XF141-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#3
. .DAMPER
90388-10818-00
|
$43.99 | ||
|
Unavailable |
|||
|
#4
. .COLLAR
90387-10855-00
|
$9.49 | ||
|
Unavailable |
|||
|
#5
PROTECTOR
B8R-F117G-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#6
SHAFT, PIVOT
B8R-F2141-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#7
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10283-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Unavailable |
|||
|
#10
STOPPER, MAIN STAND
5P1-F7114-00-00
Superseded by B8R-F7114-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#11
COLLAR
90387-08821-00
|
$2.35 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
90105-088E3-00
|
$1.20 | ||
|
Unavailable |
|||
|
#13
NUT, SELF-LOCKING
95602-08200-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 10
BJC-F116M-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#15
CLAMP
90464-10800-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE DEEP RECESS
95D02-06014-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY 3
BBJ-F8358-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#18
CLAMP
90464-30804-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STAY 1
BBJ-F116A-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#21
BOLT, WITH WASHER
90119-06051-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, FRONT UPPER 1
BBJ-F1415-00-00
|
$4.95 | ||
|
Unavailable |
|||
|
#23
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLAMP
90464-16803-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET 10
B8R-F116M-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#26
BOLT, BUTTON HEAD
92012-08014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PROTECTOR
5ML-F117G-00-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, PLATE
90520-02834-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, PLATE
90520-02821-00
|
$0.45 | ||
|
Unavailable |
|||
|
#30
SEAL
5D9-F414G-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER, SEAT
1P3-F4747-01-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
LEG SHIELD STAY SET
BBJ-F8320-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG, BLIND
BBJ-F6199-00-00
|
$0.80 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE
95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#35
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
Unavailable |
|||
|
#36
CLAMP
90464-50803-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-16803-00
|
$0.85 | ||
|
Unavailable |
|||
