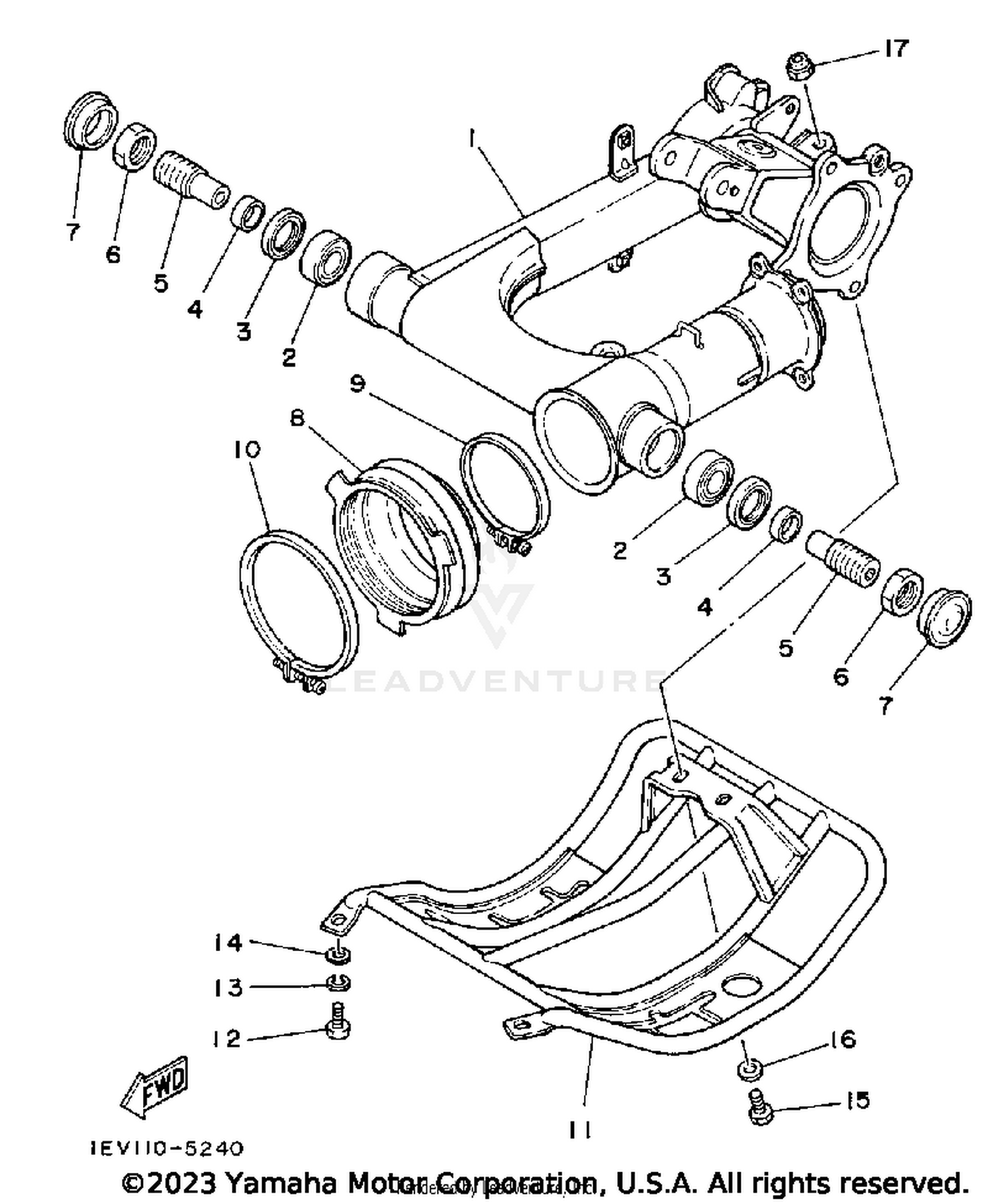

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1EV-22110-00-33
|
$457.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93332-00010-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-25017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-17543-00
Superseded by 90387-17011-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
29U-22141-00-00
Superseded by 4WV-22141-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
1J7-22143-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-34069-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, RUBBER
29U-22189-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-80229-00
|
$9.99 | ||
|
Unavailable |
|||
|
#10
CLAMP, HOSE
90460-99228-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
29U-2219X-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-094G1-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
