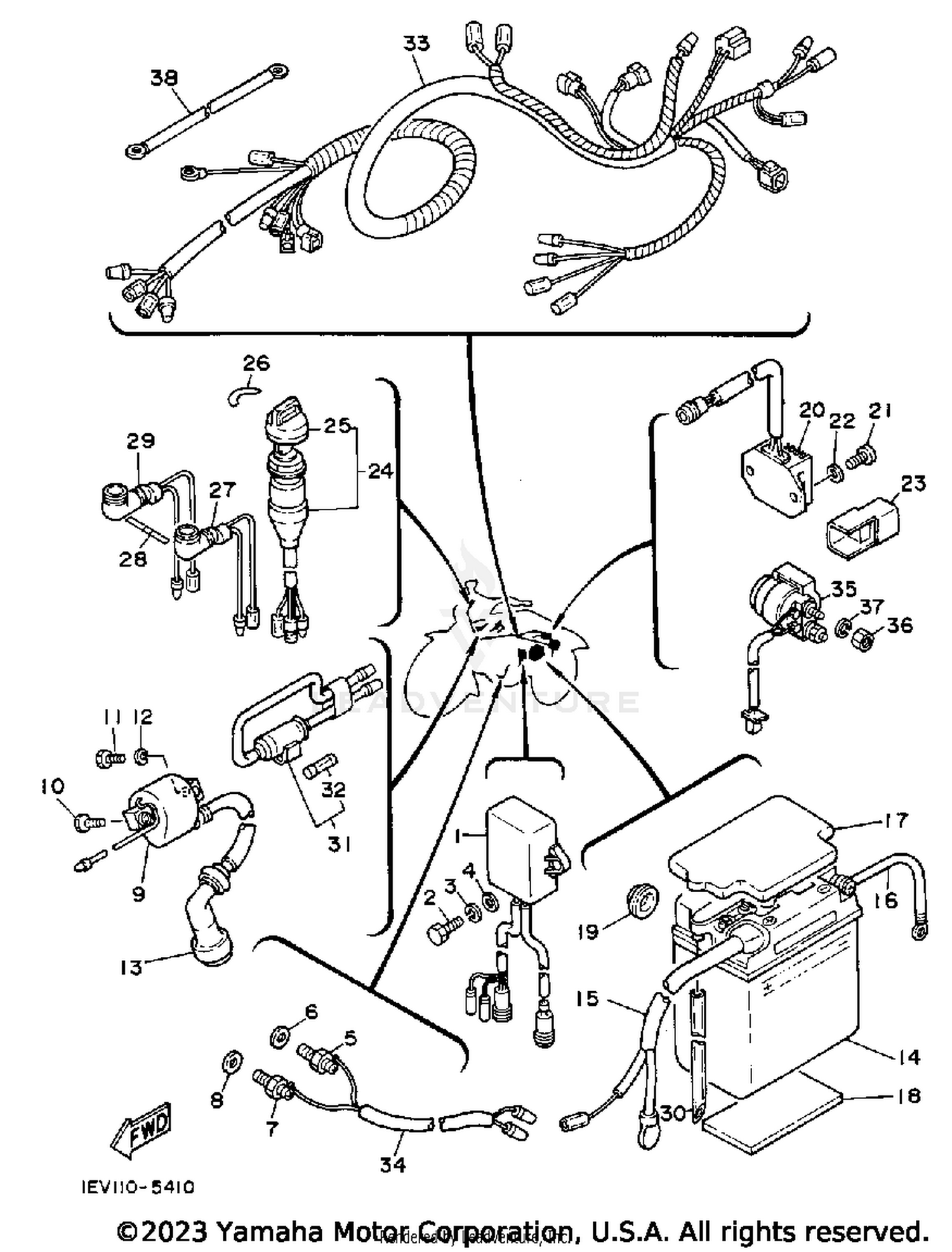

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI UNIT ASY
1EV-85540-20-00
|
$468.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLAIN (646)
92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NEUTRAL SWITCH ASSY
24W-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, UNION
90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-12790-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSEMBLY
1UY-82310-41-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-06723-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#13
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CB14-A2 GS BATTERY
BTG-GM14A-Z4-A0
Superseded by CB1-4A200-00-00
|
$62.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, PLUS LEAD
29U-82115-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#16
WIRE, MINUS LEAD
29U-82116-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, BATTERY
24W-82129-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT, BATTERY
5X2-24183-00-00
Superseded by 5Y1-82122-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PAD, BATTERY
371-82121-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RECTIFIER/REGULATOR ASSEMBLY
29U-81960-90-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLAIN (646)
92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#23
RELAY ASSY (ACA12115-1)
29U-81950-93-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
MAIN SWITCH ASY
2FW-82510-02-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, KEY
24W-82579-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL
29U-83585-10-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT LIGHT ASSY
24W-83530-00-00
Superseded by 24W-83530-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LABEL
52H-83585-00-00
|
$3.78 | ||
|
Unavailable |
|||
|
#29
PILOT LIGHT ASSY
52G-83530-00-00
Superseded by 52G-83530-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE, BREATHER
3L5-82112-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#31
FUSE HOLDER ASSEMBLY
29U-82150-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#32
FUSE (10A)
1E6-82151-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WIRE HARNESS ASY
1EV-82590-60-00
|
$205.99 | ||
|
Unavailable |
|||
|
#34
WIRE, LEAD
52G-82541-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#35
STARTER RELAY ASSY (MS65D-611)
4KD-81940-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#38
WIRE, MINUS LEAD
3WP-82116-00-00
Superseded by 89H-82116-00-00
|
$32.99 | ||
|
Unavailable |
|||
