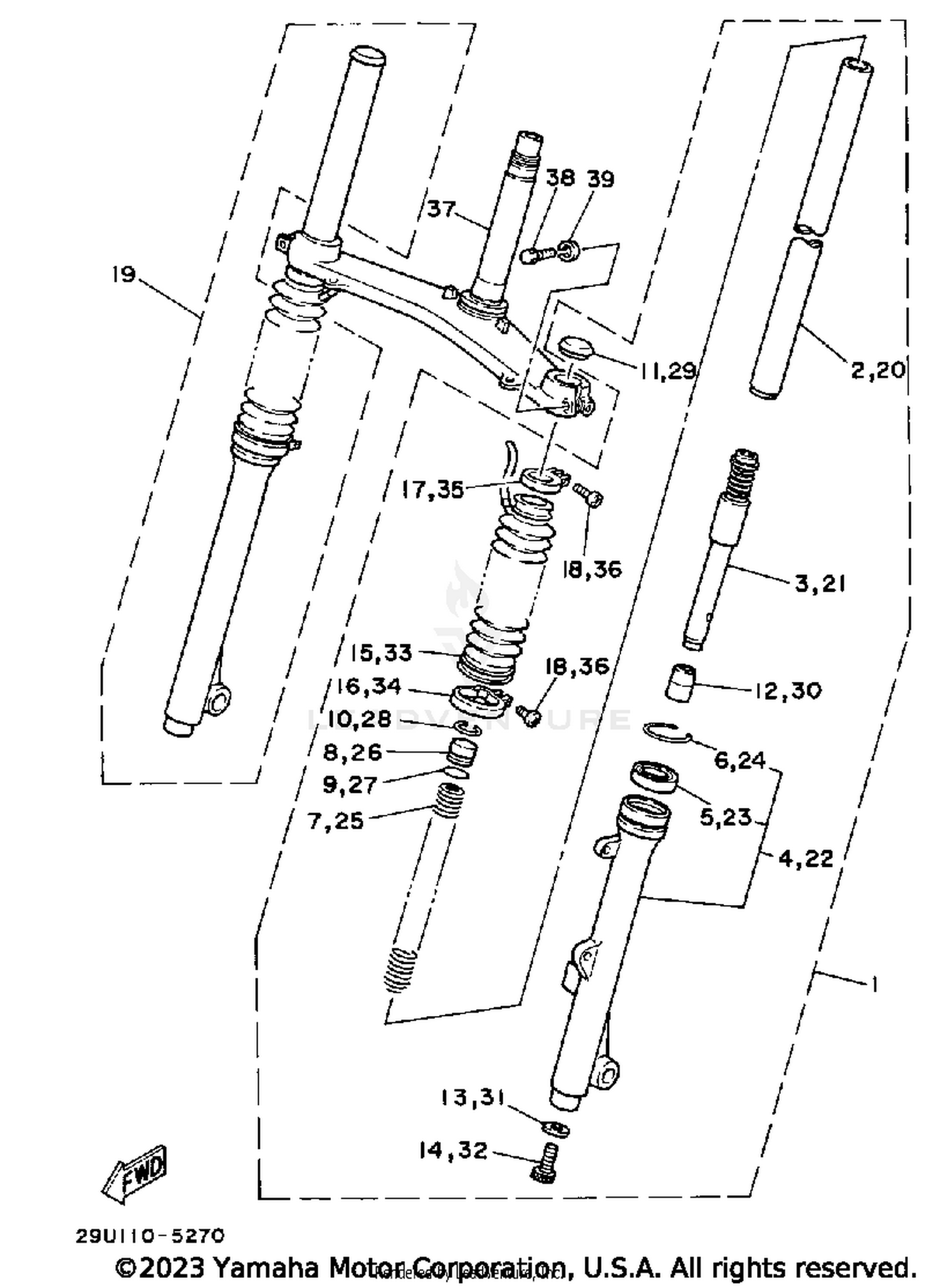

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASY L
29U-23102-00-35
|
$423.99 | ||
|
Unavailable |
|||
|
#1
FRONT FORK ASY L
29U-23102-00-98
|
$408.99 | ||
|
Unavailable |
|||
|
#2
INNER TUBE 1
29U-23110-00-00
|
$160.99 | ||
|
Unavailable |
|||
|
#3
CYLINDER,FRT FORK
29U-23170-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
OUTER TUBE LH
29U-23106-00-35
|
$171.99 | ||
|
Unavailable |
|||
|
#4
OUTER TUBE LH
29U-23106-00-98
|
$156.55 | ||
|
Unavailable |
|||
|
#5
OIL SEAL,SWO-TYPE
93110-30013-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP,INNER
93450-43072-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,FRONT FORK
29U-23141-00-00
|
$22.72 | ||
|
Unavailable |
|||
|
#8
BOLT,CAP
5H5-23111-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP,INNER
93450-27071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG,INNER TUBE
5H5-23154-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPINDLE,TAPER
5H5-23173-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-08155-00
Superseded by 90430-08143-00
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT
29U-2312A-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#16
CLAMP,HOSE
90460-52259-00
|
$5.00 | ||
|
Unavailable |
|||
|
#17
CLAMP,HOSE
90460-35260-00
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FRONT FORK ASY R
29U-23103-00-98
|
$555.99 | ||
|
Unavailable |
|||
|
#19
FRONT FORK ASY R
29U-23103-00-35
|
$413.99 | ||
|
Unavailable |
|||
|
#20
INNER TUBE 1
29U-23110-00-00
|
$160.99 | ||
|
Unavailable |
|||
|
#21
CYLINDER,FRT FORK
29U-23170-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#22
OUTER TUBE R/H
29U-23107-00-35
|
$165.99 | ||
|
Unavailable |
|||
|
#22
OUTER TUBE R/H
29U-23107-00-98
|
$150.18 | ||
|
Unavailable |
|||
|
#23
OIL SEAL,SWO-TYPE
93110-30013-00
|
$29.99 | ||
|
Unavailable |
|||
|
#24
CIRCLIP,INNER
93450-43072-00
|
$10.49 | ||
|
Unavailable |
|||
|
#25
SPRING,FRONT FORK
29U-23141-00-00
|
$22.72 | ||
|
Unavailable |
|||
|
#26
BOLT,CAP
5H5-23111-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#27
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
CIRCLIP,INNER
93450-27071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
PLUG,INNER TUBE
5H5-23154-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#30
SPINDLE,TAPER
5H5-23173-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#31
GASKET
90430-08155-00
Superseded by 90430-08143-00
|
$3.35 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
BOOT
29U-2312A-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#34
CLAMP,HOSE
90460-52259-00
|
$5.00 | ||
|
Unavailable |
|||
|
#35
CLAMP,HOSE
90460-35260-00
|
$4.88 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
UNDER BRACKET
29U-23340-10-00
|
$357.99 | ||
|
Unavailable |
|||
|
#38
BOLT,WITH WASHER
97023-10035-00
Superseded by 97070-10035-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
