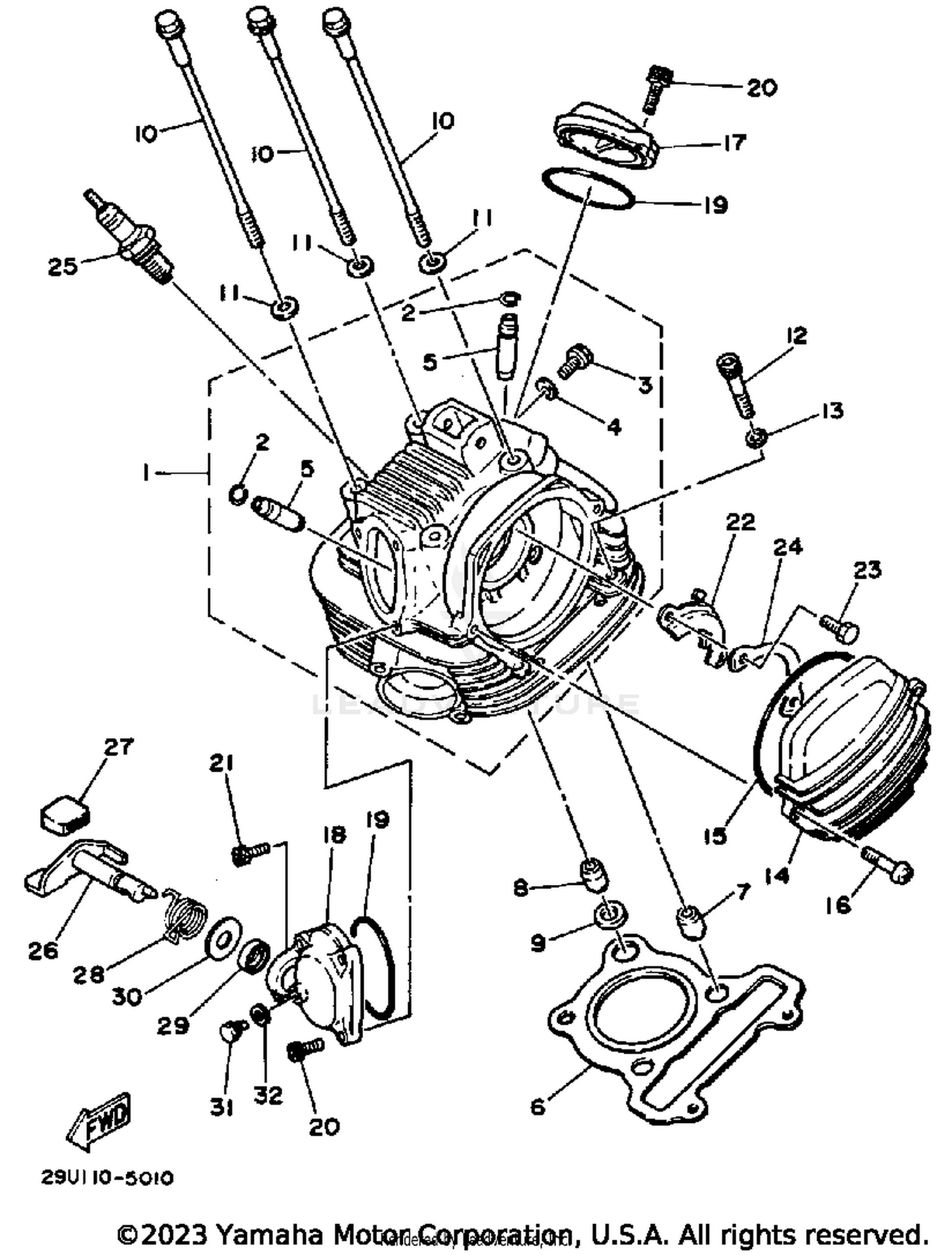

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
15A-11110-01-00
Superseded by 15A-11110-04-00
|
$736.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
93440-10085-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GUIDE, VALVE 1
5H0-11133-10-00
Superseded by 5H0-11133-11-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD 1
59V-11181-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GASKET
90430-12186-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08195-00
Superseded by 90105-08160-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-080L7-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-08045-00
Superseded by 91317-08045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-087K2-00
Superseded by 90201-086M0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CYLINDER HEAD SIDE 3
15A-11185-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93211-05471-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PAN HEAD
98516-06020-00
Superseded by 98517-06020-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD SIDE 2
15A-11186-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD SIDE 3
21V-11187-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-57634-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-06717-00
Superseded by 91317-06018-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
PLATE
5H0-1111F-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (661)
97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, LOCK
90215-06184-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
D7EA NGK SPLUG 10P
NGK-D7EA0-00-00
Superseded by D7E-A0000-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAM
24W-12288-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#27
COVER, LEVER
24W-12275-00-00
|
$4.20 | ||
|
Unavailable |
|||
|
#28
SPRING, TORSION
90508-12610-00
|
$5.99 | ||
|
Unavailable |
|||
|
#29
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-12588-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90109-06418-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
GASKET
90430-06014-00
|
$8.60 | ||
|
Unavailable |
|||
