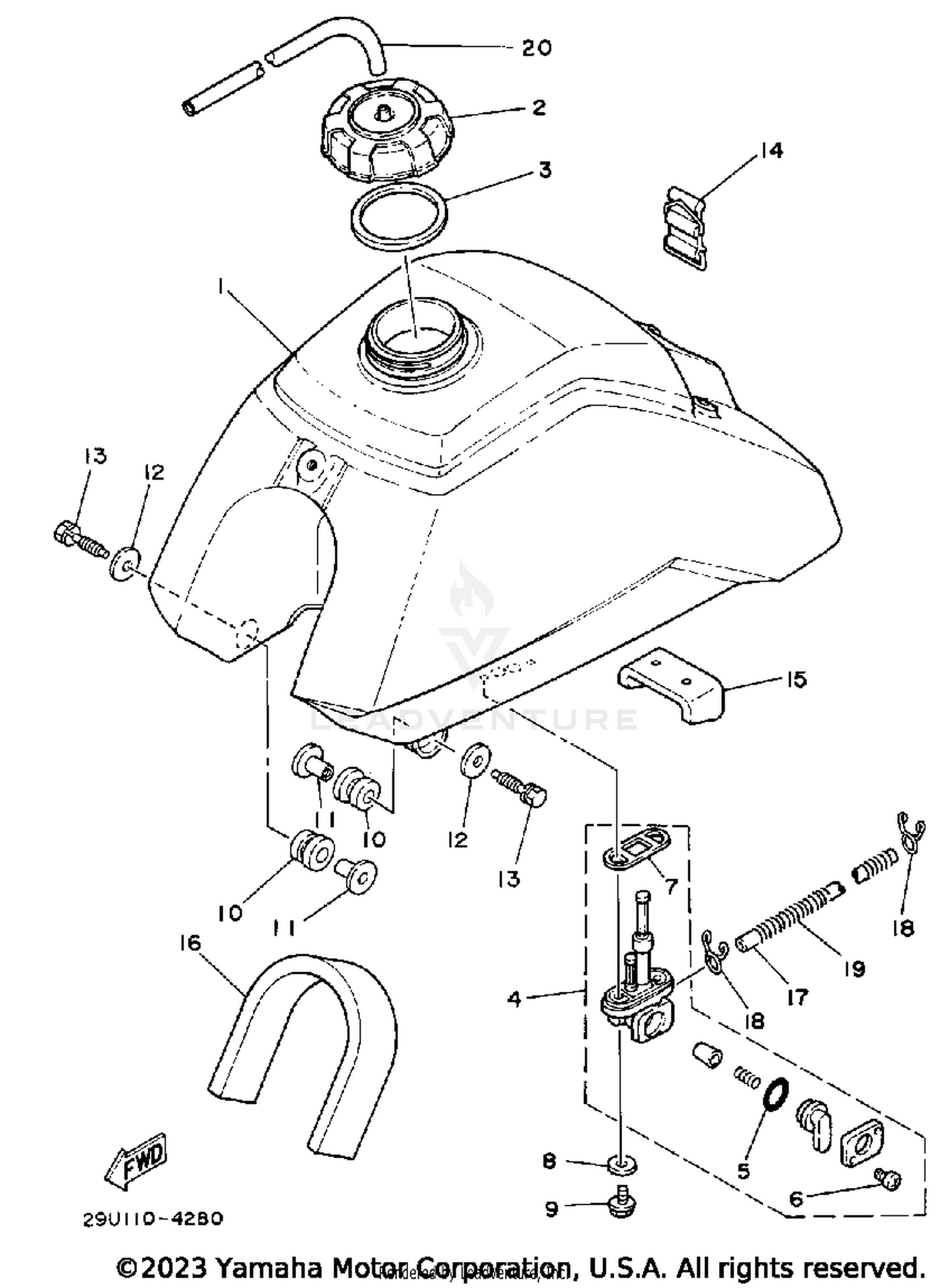

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2FW-24110-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#2
UNAVAILABLE IN PRICE BOOK (3R9-
1UY-24611-00-00
|
|||
|
Unavailable |
|||
|
#3
GASKET, CAP
3R9-24612-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUEL COCK ASSY 1
21V-24500-10-00
Superseded by 21V-24500-20-00
|
$56.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SEAL, COCK
4X8-24534-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-066H4-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06697-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-06073-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, TANK FITTING 1
59V-24173-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
29U-24181-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#16
DAMPER,LOCATING 3
21V-24183-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
HOSE (L400)
90445-11717-00
Superseded by 90445-116K9-00
|
$26.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPRING, COMPRESSION
90501-08728-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
