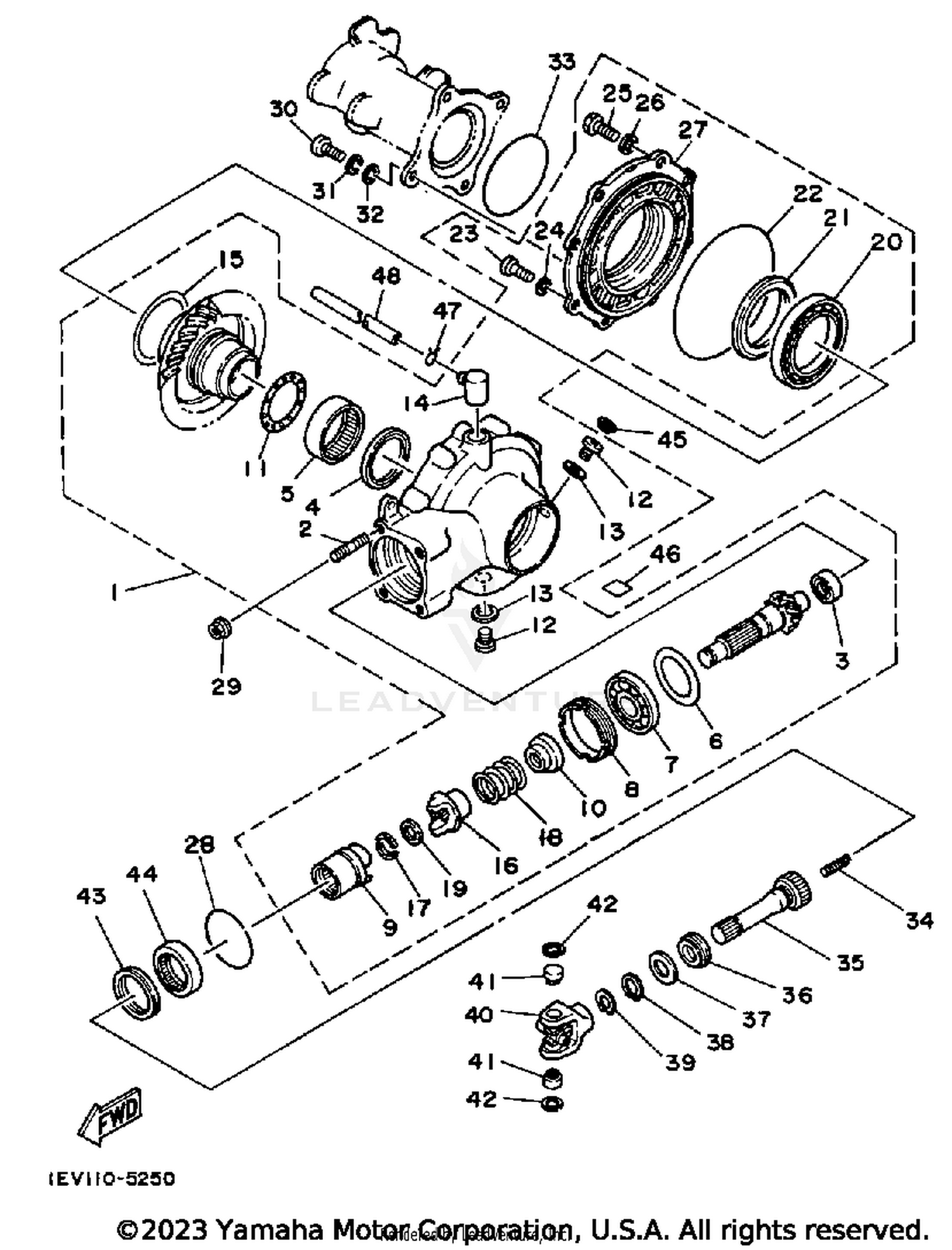

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR AXL GR CASE ASSY
1EV-46101-01-00
|
$905.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08360-00
Superseded by 95617-08620-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING ASSY
24W-46102-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93101-52116-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93317-85569-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, CYLINDER.17
93317-55542-00
|
$52.99 | ||
|
Unavailable |
|||
|
#6
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30560-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER, BEARING
24W-46125-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#9
COUPLING, GEAR (52G-46123-00)
1NU-46123-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#10
HOLDER
52G-17524-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#11
WASHER, THRUST (1.2T)
24W-46118-00-12
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (1.4T)
24W-46118-00-14
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (1.6T)
24W-46118-00-16
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (1.8T)
24W-46118-00-18
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (2.0T)
24W-46118-00-20
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, STRAIGHT SCREW
90340-14046-00
Superseded by 90340-14002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BREATHER
2H7-17591-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, RING GEAR (0.30T)
24W-46117-00-30
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, RING GEAR (0.40T)
24W-46117-00-40
|
$6.49 | ||
|
Unavailable |
|||
|
#15
SHIM, RING GEAR (0.50T)
24W-46117-00-50
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, RING GEAR (0.25T)
24W-46117-00-25
|
$6.49 | ||
|
Unavailable |
|||
|
#16
CAM, DRIVEN
1EV-17527-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST
52G-17529-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
SPRING, COMPRESSION
90501-655A6-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-171J5-00
Superseded by 90201-17682-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93316-01301-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-65277-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING
93211-44348-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, KICK CRANK
97013-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HOUSING, BEARING
29U-46152-00-00
Superseded by 3GC-46152-00-00
|
$195.99 | ||
|
Unavailable |
|||
|
#28
O-RING
93210-59531-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
Unavailable |
|||
|
#33
O-RING
93210-85075-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SPRING, COMPRESSION
90501-132A0-00
|
$0.50 | ||
|
Unavailable |
|||
|
#35
SHAFT, DRIVE
1EV-46172-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#36
OIL SEAL, OSO-TYPE
93108-35012-00
|
$7.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-213J1-00
Superseded by 90201-225M9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP, S-TYPE
93410-20070-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CROSS JOINT COMP.
1EV-46180-00-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, CYLINDER. (1EV)
93311-21059-00
|
$26.99 | ||
|
Unavailable |
|||
|
#42
CIRCLIP
99009-20500-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
OIL SEAL, S-TYPE
93101-40129-00
|
$12.99 | ||
|
Unavailable |
|||
|
#44
BEARING, CYLINDER.#15
93315-64037-00
|
$34.99 | ||
|
Unavailable |
|||
|
#45
CAP, BOLT
341-23469-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
LABEL, OIL CAUTION
4H7-46181-10-00
|
$1.25 | ||
|
Unavailable |
|||
|
#47
CLIP
90467-07029-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE (L1700)
90445-07745-00
Superseded by 90445-070G6-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
