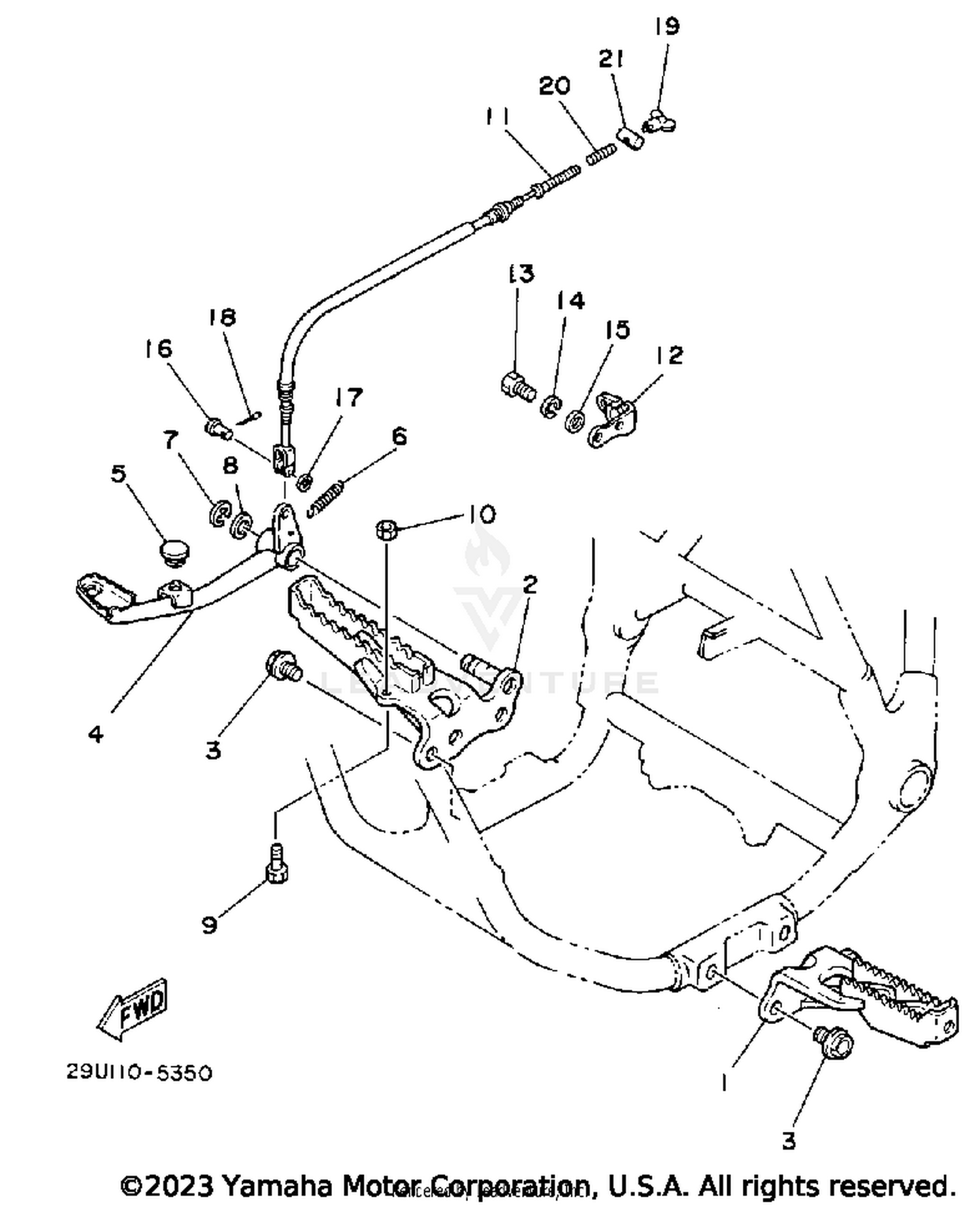

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 1
29U-27411-11-00
|
$91.99 | ||
|
Unavailable |
|||
|
#2
FOOTREST 2
29U-27421-10-00
|
$93.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95811-12020-00
Superseded by 95817-12020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PEDAL, BRAKE
29U-27211-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPPER, MAIN STAND
128-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-16318-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, E-TYPE
93430-12008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-15797-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
90101-06595-00
|
$0.50 | ||
|
Unavailable |
|||
|
#10
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CABLE, BRAKE
29U-26351-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, CABLE
29U-21161-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, CLEVIS
90240-06076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, ADJUSTING
20E-26343-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-10782-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, SPECIAL SHAPE
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
