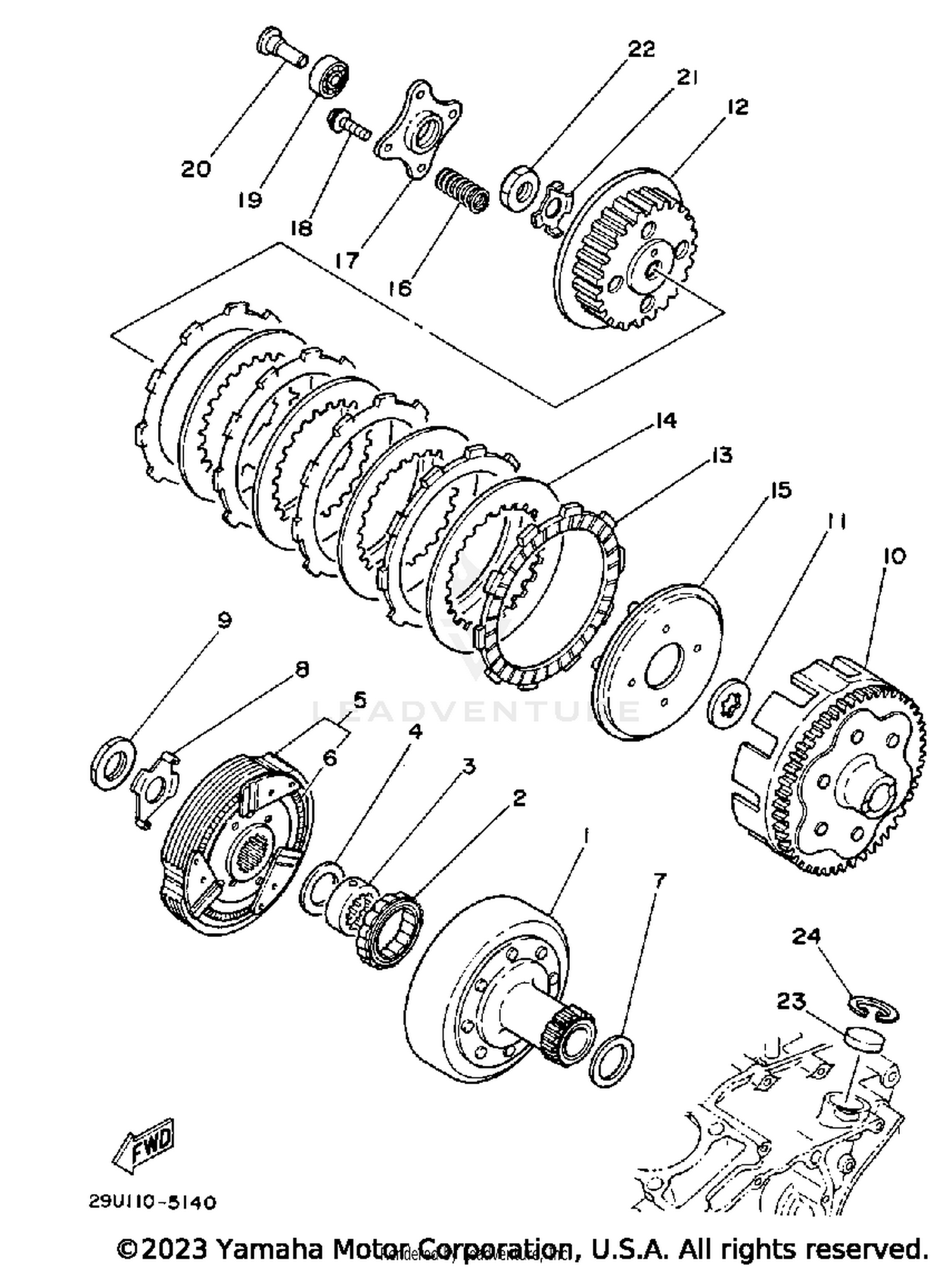

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH HOUSING COMP.
3GC-16611-00-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, ONE WAY
21V-16664-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RETAINER, BEARING
21V-16665-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-403G7-00
|
$5.99 | ||
|
Unavailable |
|||
|
#5
CLUTCH CARRIER ASSEMBLY
99999-01949-00
|
$509.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CLUTCH WEIGHT
29U-16626-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-266F6-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, LOCK
90215-22206-00
|
$4.20 | ||
|
Unavailable |
|||
|
#9
NUT
90170-22371-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRIMARY DRIVEN GEAR COMP.
2HT-16150-00-00
|
$213.99 | ||
|
Unavailable |
|||
|
#11
PLATE, THRUST 1
5H0-16154-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, CLUTCH
21V-16371-01-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, FRICTION
21V-16321-00-00
Superseded by 3XP-16321-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 1
257-16324-00-00
Superseded by 257-16324-10-00
|
$17.49 | ||
|
Unavailable |
|||
|
#15
PLATE, PRESSURE 1
21V-16351-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-24785-00
Superseded by 90501-243J7-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, PRESSURE 2
21V-16352-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, WITH WASHER
90159-05011-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING (B6000)
93306-00004-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, PUSH
1YW-16358-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, LOCK
90215-14224-00
Superseded by 90215-14186-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90170-14284-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG
90338-26136-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93420-28055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
