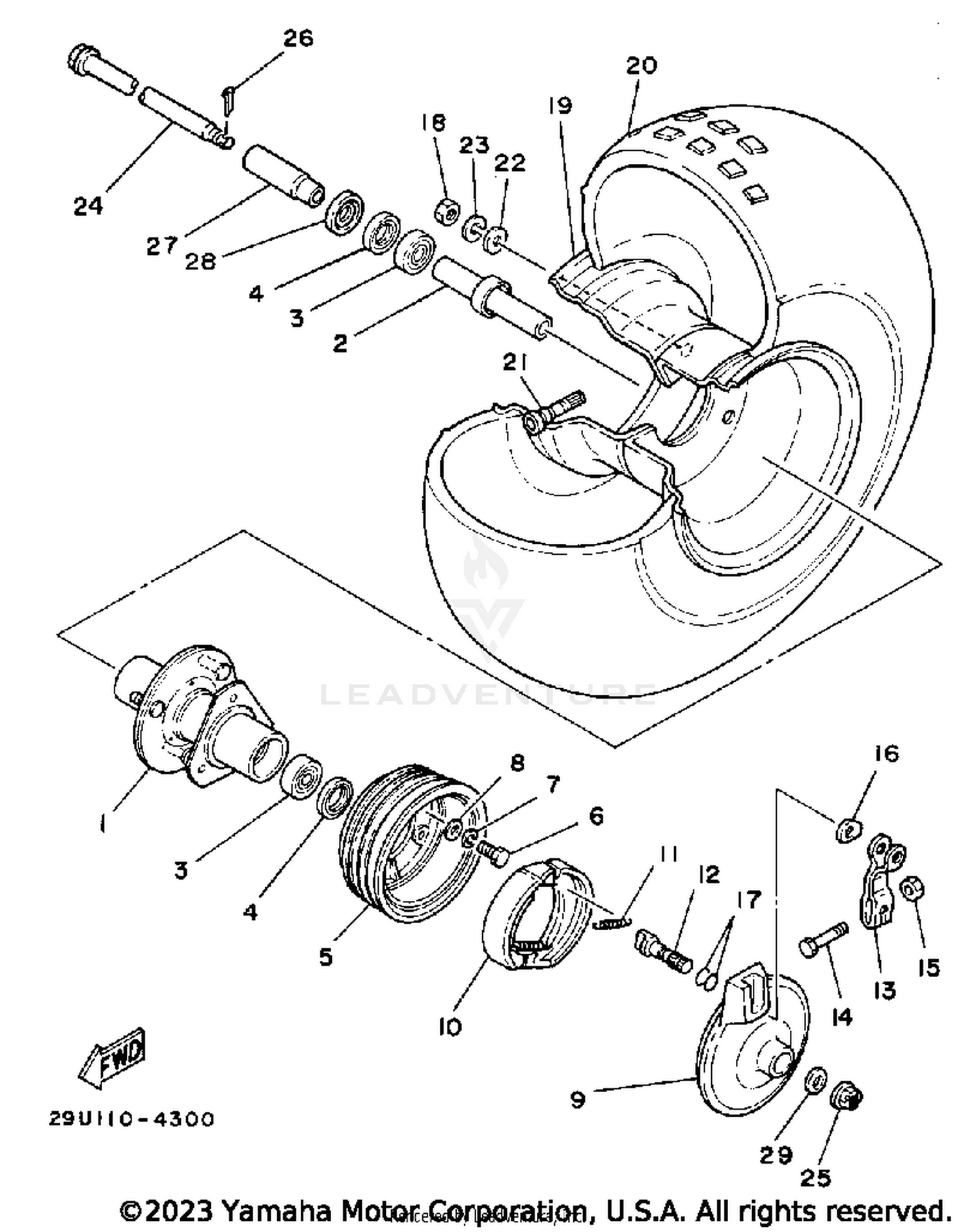

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,FRONT
29U-25111-00-00
|
$199.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
29U-25117-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#3
BEARING (B6203DU)
93306-20310-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-23252-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, BRAKE
5V7-2511E-00-00
Superseded by 5V7-2511E-00-35
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PLATE,BRAKE SHOE
21V-25121-00-35
|
$201.99 | ||
|
Unavailable |
|||
|
#9
PLATE,BRAKE SHOE
21V-25121-00-98
|
$107.99 | ||
|
Unavailable |
|||
|
#10
BRAKE SHOE KIT
5G3-W2536-00-00
Superseded by 4BE-W253E-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-15260-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT 1
21V-25155-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#14
BOLT
90101-06278-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, INDICATOR
5V7-2513A-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
WHEEL,FRONT
29U-25180-00-8L
|
$135.99 | ||
|
Unavailable |
|||
|
#19
WHEEL, FRONT
29U-25180-00-35
|
$143.99 | ||
|
Unavailable |
|||
|
#20
AT22X11-8 DUN KT755
94111-083H6-00
|
$86.99 | ||
|
Unavailable |
|||
|
#21
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
AXLE,WHEEL
29U-25181-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#25
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
COLLAR
90387-174G6-00
|
$13.99 | ||
|
Unavailable |
|||
|
#28
COVER, HUB DUST
5V6-25118-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-15785-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
