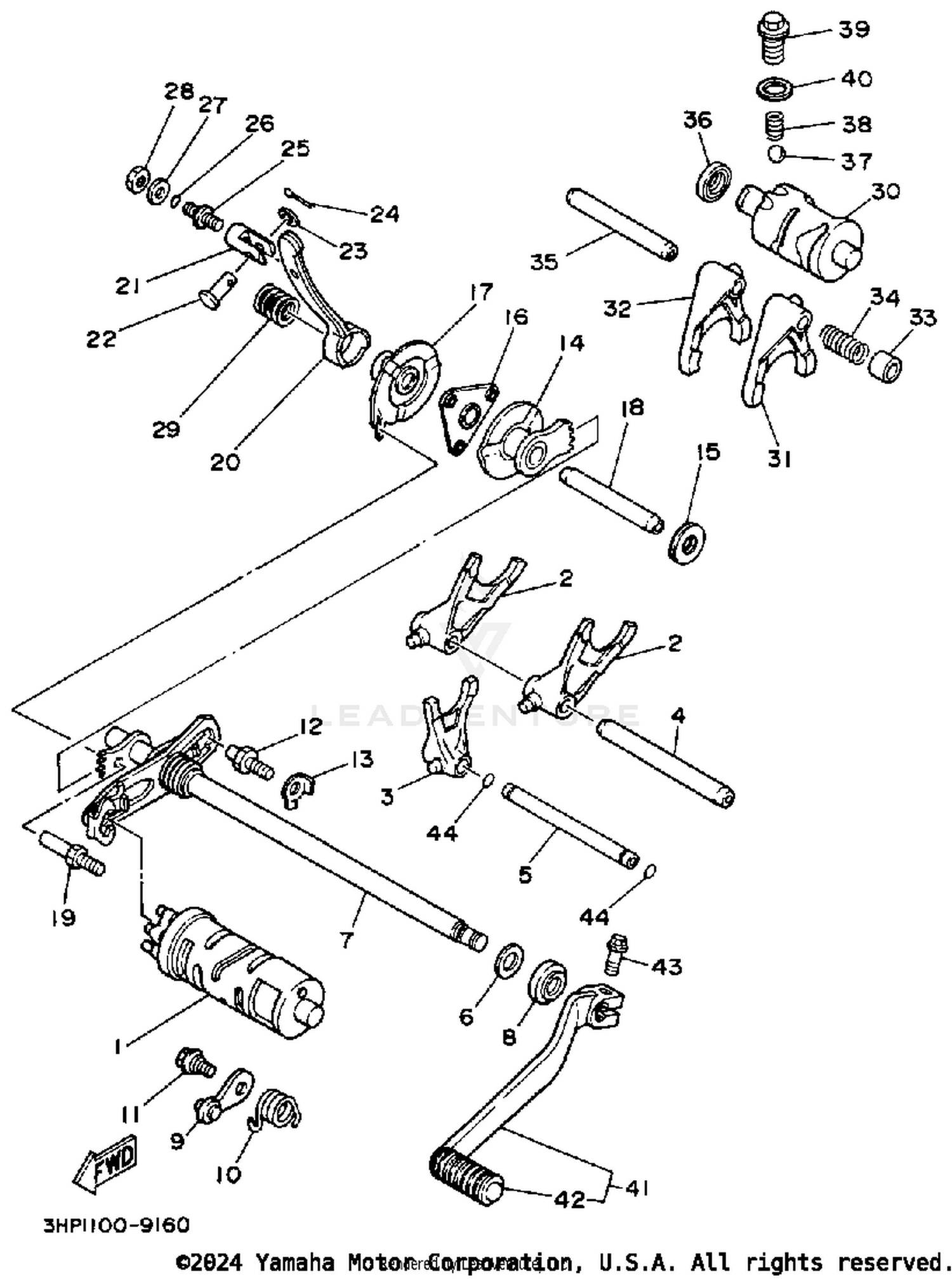

Shift Cam-fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY
4GB-18540-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, SHIFT 1
1YW-18511-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, SHIFT 2
1UY-18512-00-00
Superseded by 4GB-18512-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR, SHIFT FORK GUIDE 2
1YW-18535-00-00
Superseded by 4GB-18535-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, SHIFT FORK GUIDE 1
2NL-18531-00-00
Superseded by 4GB-18531-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-144J2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIFT SHAFT ASSY
1YW-18101-01-00
Superseded by 1YW-18101-02-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL, SD TYPE
93102-14209-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
STOPPER LEVER ASSY
1UY-18140-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TORSION
90508-25712-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-063F7-00
Superseded by 90109-06190-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER, SCREW
4G0-18127-00-00
Superseded by 5VK-18127-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-08260-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE SHIFT COMP. 2
1YW-18106-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93342-21212-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, PAWL
1YW-18181-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE SHIFT COMP.
1YW-18104-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#18
SHAFT, SHIFTER
1YW-18318-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
STOPPER, SCREW
1YW-18127-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#20
ARM, SHIFT 3
2VA-1817A-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#21
PIN, LEVER
21V-18126-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
PIN, JOINT
21V-18118-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN, COTTER (91402-16015)
91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOPPER, SCREW
21V-18127-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-07590-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-08649-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT
95316-08700-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SPRING, COMPRESSION
90501-162E4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAM, SHIFT 2
2HR-18546-06-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FORK, SHIFT 1
2HR-18311-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#32
FORK, SHIFT 2
1YW-18312-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#33
CAP, SPRING
2HR-18323-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, COMPRESSION
90501-147E8-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAR, SHIFT FORK GUIDE 2
5Y1-18535-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#36
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BALL
93503-08007-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SPRING, COMPRESSION
90501-10353-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT, WASHER BASED
90105-14367-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET
90430-14194-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
SHIFT PEDAL ASSEMBLY
1YW-18110-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#42
COVER, CHANGE PEDAL
132-18113-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
O-RING
93210-07590-00
|
$8.49 | ||
|
Unavailable |
|||
