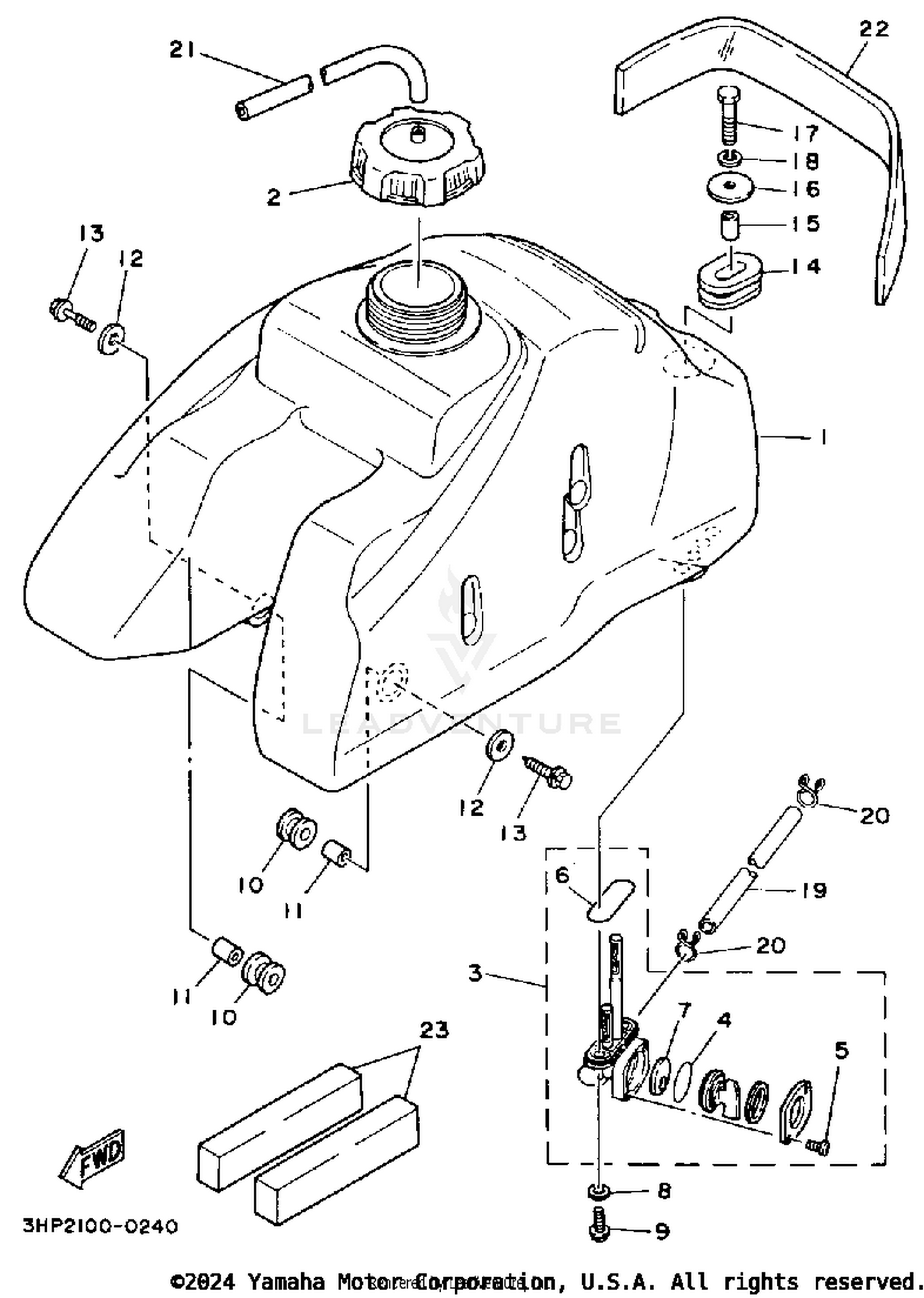

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3GH-24110-00-00
|
$247.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUEL COCK ASSY 1
21V-24500-10-00
Superseded by 21V-24500-20-00
|
$56.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-06027-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06697-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-06073-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-060L5-00
Superseded by 90201-06090-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L400)
90445-11626-00
Superseded by 90445-116K9-00
|
$26.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, LOCATING 1
59V-24181-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#23
PATCH 1
8V7-21961-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
