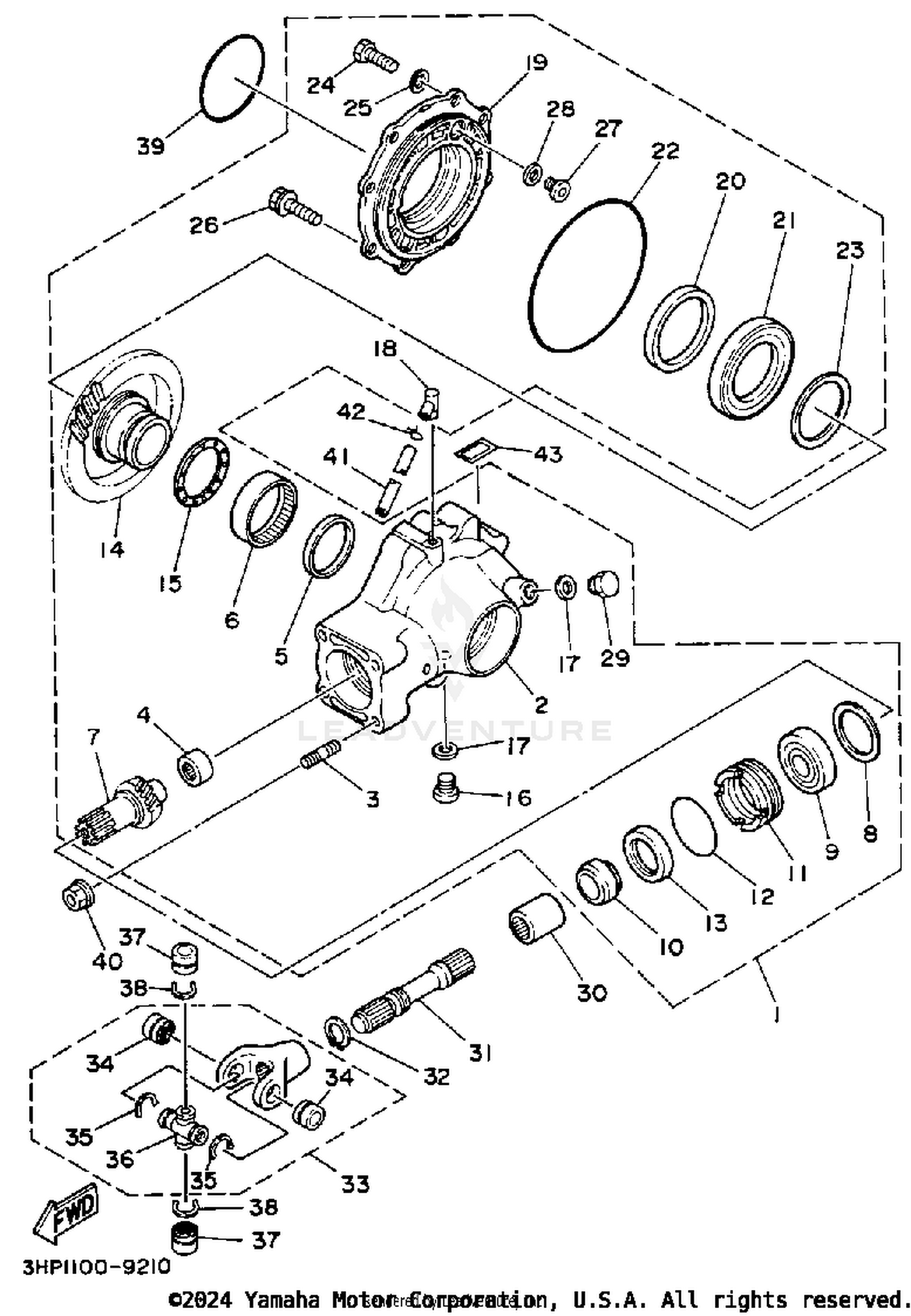

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR AXLE GEAR CASE
3HN-46101-10-00
Superseded by 3HN-46101-12-00
|
$879.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, DRIVE SHAFT
3HN-46151-00-00
Superseded by 3HN-46151-01-00
|
$417.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-10428-00
Superseded by 90116-10361-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING ASSY
2H7-46102-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93101-52116-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-85569-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, DRIVE PINION
1YW-46121-00-00
Superseded by 1YW-46121-01-00
|
$255.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30542-00
Superseded by 93306-30568-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-255H9-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER, BEARING
29U-46125-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-59531-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL, (S) TYPE
93101-38098-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING GEAR COMP
1YW-46110-00-00
|
$471.99 | ||
|
Unavailable |
|||
|
#15
WASHER, THRUST (1.2T)
24W-46118-00-12
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (1.4T)
24W-46118-00-14
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (1.6T)
24W-46118-00-16
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (1.8T)
24W-46118-00-18
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (2.0T)
24W-46118-00-20
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, STRAIGHT SCREW
90340-14046-00
Superseded by 90340-14002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BREATHER
2N4-15371-00-00
Superseded by 5UG-15371-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOUSING, BEARING
3HN-46152-00-00
Superseded by 3HN-46152-01-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-65277-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BEARING
93316-01301-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93211-54698-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SHIM, RING GEAR (0.50T)
24W-46117-00-50
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM, RING GEAR (0.25T)
24W-46117-00-25
|
$6.49 | ||
|
Unavailable |
|||
|
#23
SHIM, RING GEAR (0.30T)
24W-46117-00-30
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM, RING GEAR (0.40T)
24W-46117-00-40
|
$6.49 | ||
|
Unavailable |
|||
|
#24
BOLT, KICK CRANK
97013-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95811-10045-00
Superseded by 95817-10045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
STOPPER, RING GEAR
1FK-46156-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM, STOPPER (T=0.15)
1FK-46157-00-15
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM, STOPPER (T=0.20)
1FK-46157-00-20
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM, STOPPER (T=0.30)
1FK-46157-00-30
|
$0.70 | ||
|
Unavailable |
|||
|
#28
SHIM, STOPPER (T=0.40)
1FK-46157-00-40
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, STRAIGHT SCREW
90340-14029-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
COUPLING, GEAR
2HR-46123-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHAFT, DRIVE
1YW-46172-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#32
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CROSS JOINT COMP.
1YW-46180-00-00
Superseded by 1YW-46180-02-00
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING
93399-99938-00
Superseded by 93399-99952-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
93440-23165-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPIDER
1YW-46187-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93399-99938-00
Superseded by 93399-99952-00
|
$74.99 | ||
|
Unavailable |
|||
|
#38
CIRCLIP
93440-23165-00
|
$11.49 | ||
|
Unavailable |
|||
|
#39
O-RING
93210-85706-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
HOSE (L1700)
90445-07745-00
Superseded by 90445-070G6-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-07029-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
LABEL, OIL CAUTION
4H7-46181-10-00
|
$1.25 | ||
|
Unavailable |
|||
