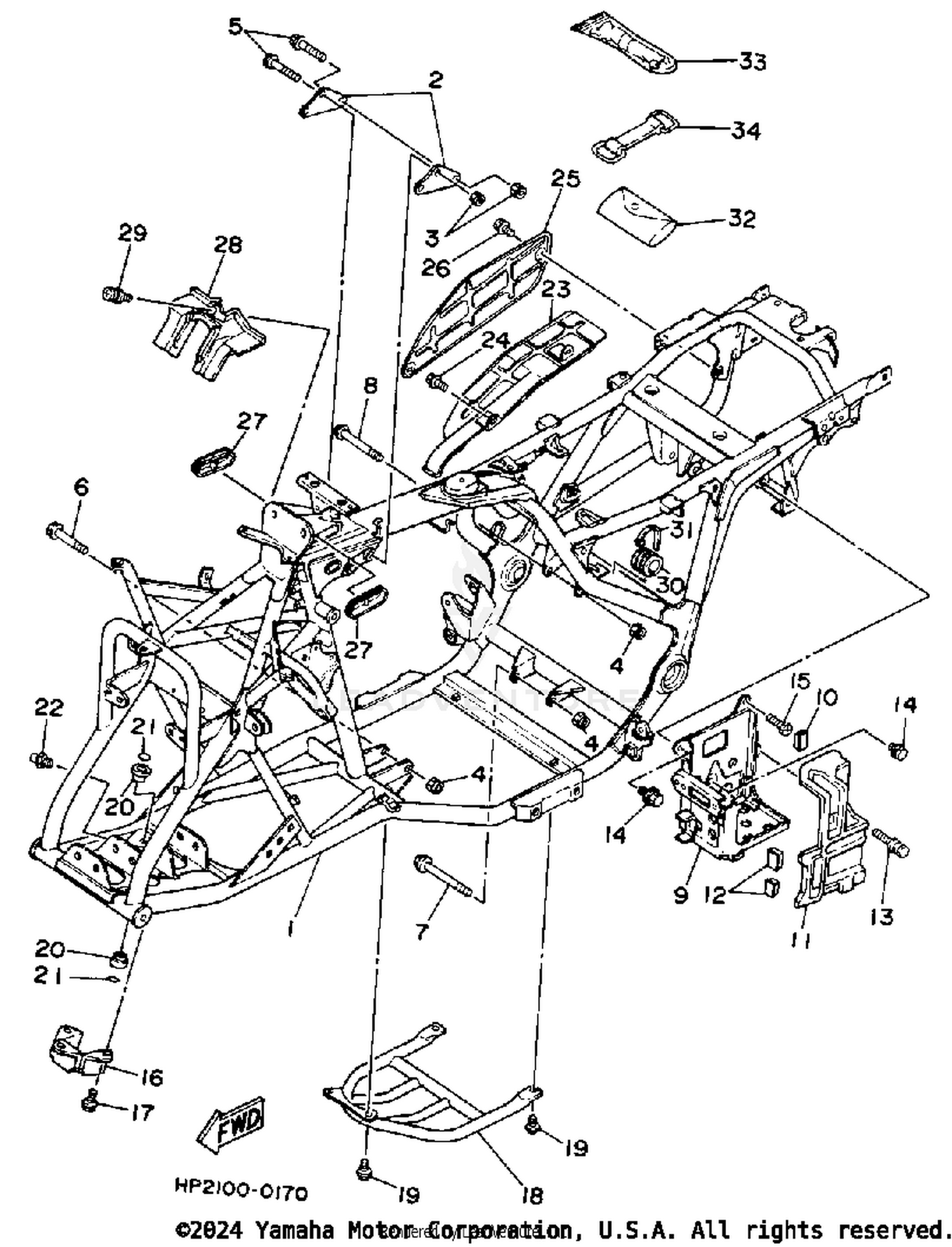

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
3HP-21110-10-33
|
$751.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, ENGINE 2
29U-21315-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WASHER BASED
90105-10323-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WASHER BASED
90105-10409-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED
90105-10480-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOX COMP.
3HP-21170-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#10
COVER 2
3FC-2139R-00-00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOX
24W-21245-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER 2
3FC-2139R-00-00
|
$2.22 | ||
|
Unavailable |
|||
|
#13
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, HEXAGON
90153-06034-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUARD, ENGINE 1
59V-2147A-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#18
PROTECTOR, ENGINE
1YW-21471-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#20
BUSH, SOLID
90381-15040-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NIPPLE, GREASE
93700-06M03-00
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COVER, REAR FENDER 3
1YW-2163F-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#24
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, REAR FENDER 2
1YW-2163E-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#26
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
GUIDE, AIR
52H-2137Y-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#28
COVER
59V-2117F-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#29
SCREW, WITH WASHER
90159-05121-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
DAMPER, LOCATING 3
1J7-24183-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
TOOL KIT
2VA-28100-00-00
Superseded by 3GH-28100-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#33
GAUGE, AIR
1NV-2811A-00-00
Superseded by 1NV-2811A-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BAND, TOOL
21V-21376-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
