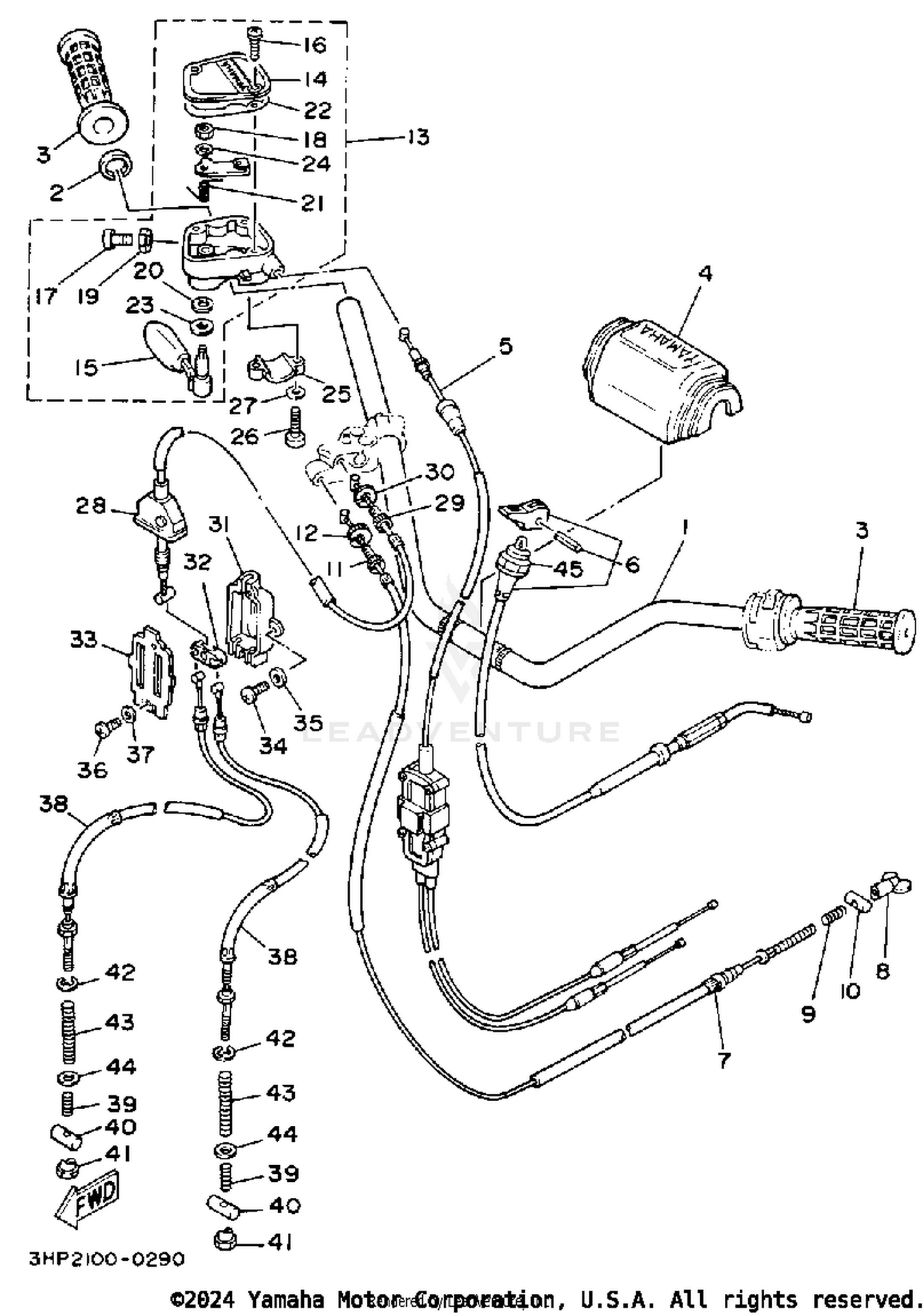

Handlebar-cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
59V-26111-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-22660-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP (L.H.) (5V6-26241-01)
3GB-26241-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, HANDLEBAR
1YW-26124-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#5
THROTTLE CABLE ASSEMBLY
2VA-26301-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, STARTER 1
1YW-26331-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, BRAKE
1YW-26341-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ADJUSTING
20E-26343-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10782-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, SPECIAL SHAPE
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
THROTTLE LEVER ASSY
1NV-26250-01-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, GEAR
1NV-2628F-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, U
95612-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95316-05700-00
Superseded by 95317-05700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93104-09025-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPRING
1NV-26304-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
1NV-2628G-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
1NV-26129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPECIAL
53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#25
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CABLE, BRAKE 4
1YW-26373-01-00
Superseded by 1YW-26373-02-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$10.49 | ||
|
Unavailable |
|||
|
#30
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$5.99 | ||
|
Unavailable |
|||
|
#31
HOUSING, BRAKE LINK
52H-26371-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT, CABLE
52H-26347-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE
52H-2631G-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CABLE, BRAKE
3GH-26361-00-00
Superseded by 3GH-26361-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, COMPRESSION
90501-10782-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
PIN, SPECIAL SHAPE
90249-12008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
NUT, SPECIAL SHAPE
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
SPRING, COMPRESSION
90501-123A0-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER
90209-06265-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
8G8-26333-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
