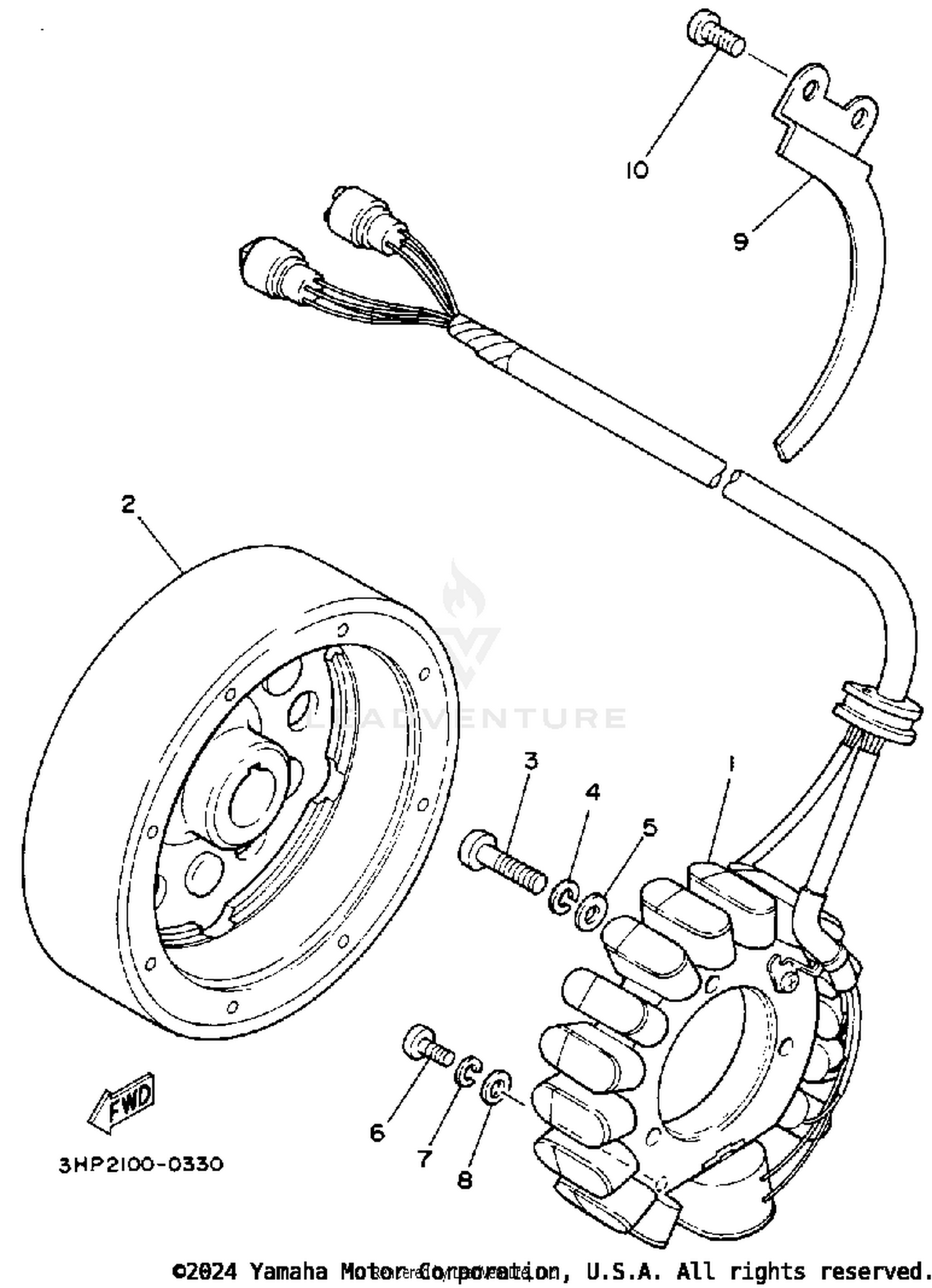

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSEMBLY
3HN-85510-00-00
|
$774.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY
3HN-85550-00-00
Superseded by 3HN-85550-01-00
|
$626.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN (646)
92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
STOPPER 1
1UY-81175-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
