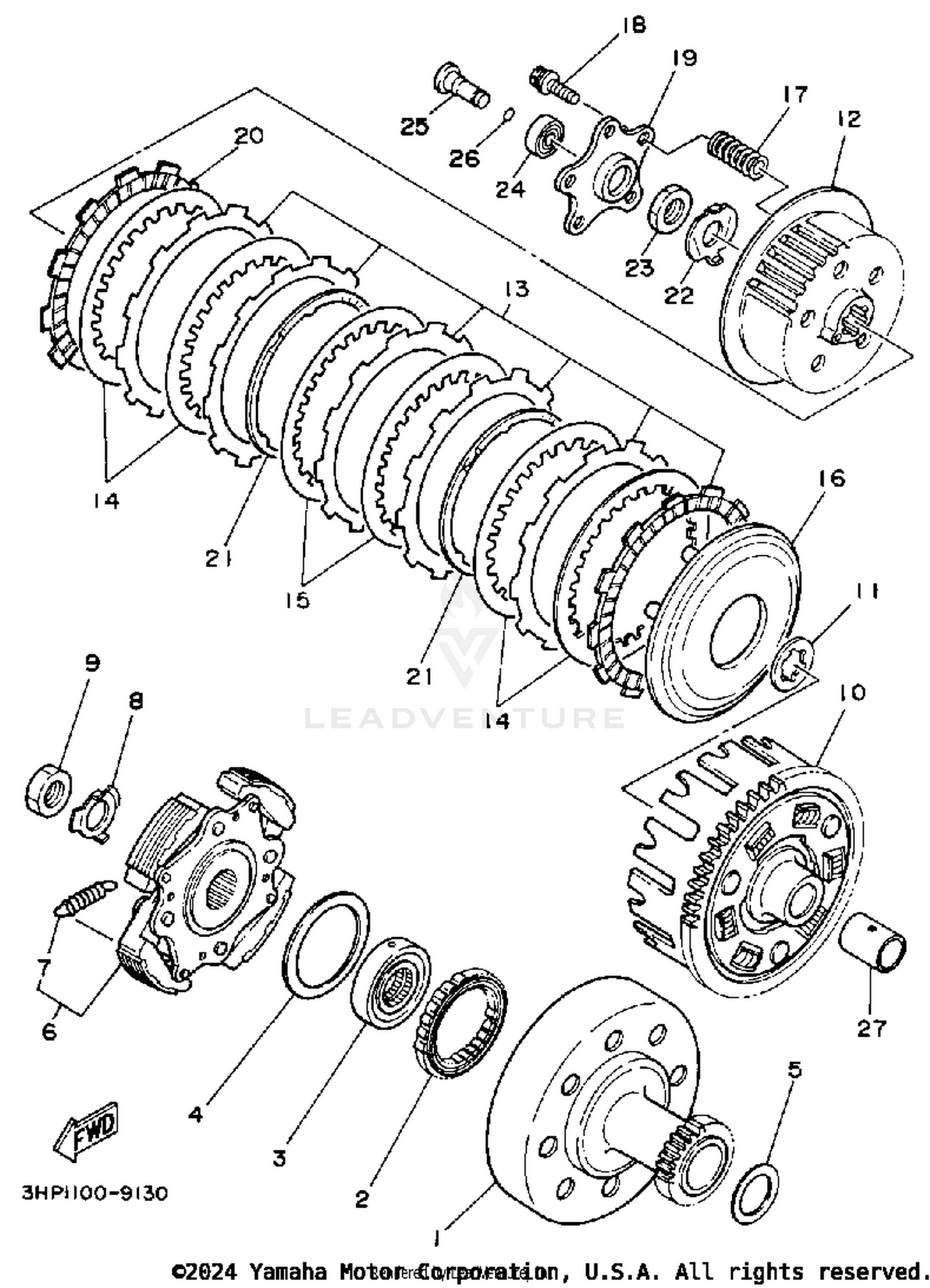

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH HOUSING COMP.
2HR-16611-03-00
Superseded by 2HR-16611-04-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, ONE WAY
1YW-16664-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#3
RETAINER, BEARING
1YW-16665-09-00
|
$102.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-574L1-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE (T1.0)
90201-286K9-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLUTCH CARRIER ASSY
3HN-16620-11-00
Superseded by 3HN-16620-12-00
|
$627.99 | ||
|
Unavailable |
|||
|
#7
SPRING, CLUTCH WEIGH
3HN-16626-00-00
Superseded by 4GB-16626-01-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, LOCK
90215-22259-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90170-22371-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRIMARY DRIVEN GEAR COMP.(76T)
1YW-16150-01-00
Superseded by 2NL-16150-00-00
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, THRUST 1
30X-16154-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, CLUTCH
1UY-16371-01-00
Superseded by 1UY-16371-02-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, FRICTION 2
5Y1-16331-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$15.99 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH 1
3J2-16324-00-00
Superseded by 3J2-16324-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, PRESSURE 1
1UY-16351-00-00
|
$123.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-231E9-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, WITH WASHER
90159-06123-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, PRESSURE 2
1UY-16352-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, FRICTION
31A-16321-00-00
Superseded by 4H7-16321-02-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPRING, CLUTCH BOSS
5Y1-16383-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK
90215-16258-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90170-16326-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (B6000)
93306-00004-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, PUSH
1YW-16358-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-06632-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SPACER 1
1YW-16181-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
