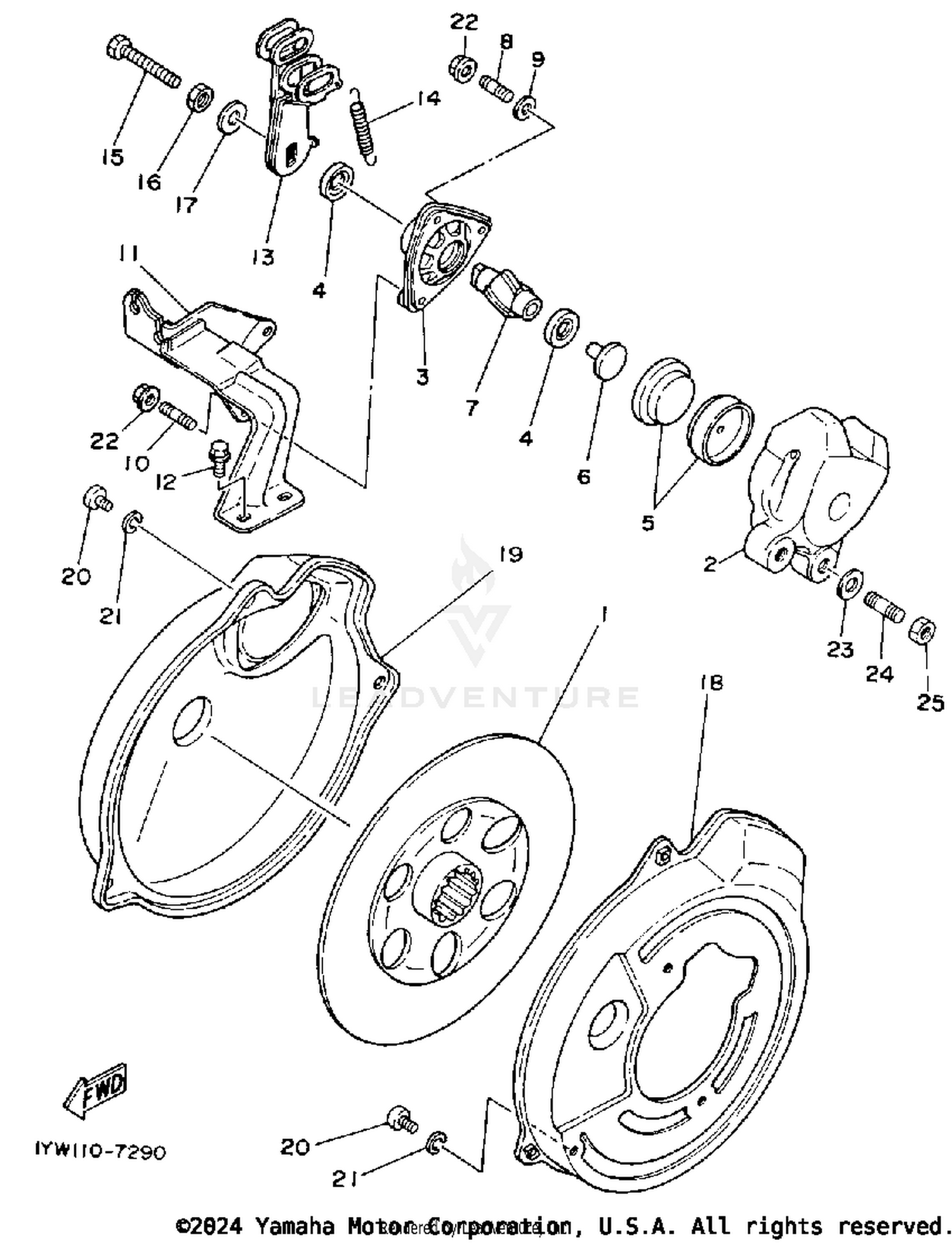

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
21V-25711-01-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY CALIPER 1
24W-25731-01-00
|
$113.99 | ||
|
Unavailable |
|||
|
#3
BODY, CALIPER 2 (21V-25741-01)
21V-25741-02-00
|
$109.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRAKE PAD KIT
2HR-W0045-00-00
Superseded by 2HR-W0045-09-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BACK UP
5V6-25733-00-00
Superseded by J45-25733-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CAM
29U-25728-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#8
BOLT, STUD
90116-06475-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, STUD
95612-06625-00
Superseded by 95617-06625-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, ADJUSTING
1YW-26381-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, BRAKE
1YW-25726-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#14
SPRING, TENSION
90506-16215-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEAD WITH HOLE
90101-08536-00
Superseded by 90103-08026-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT (6L2)
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COVER 1
29U-25715-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#19
COVER 2
29U-25716-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-104G0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, STUD
90116-10221-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
