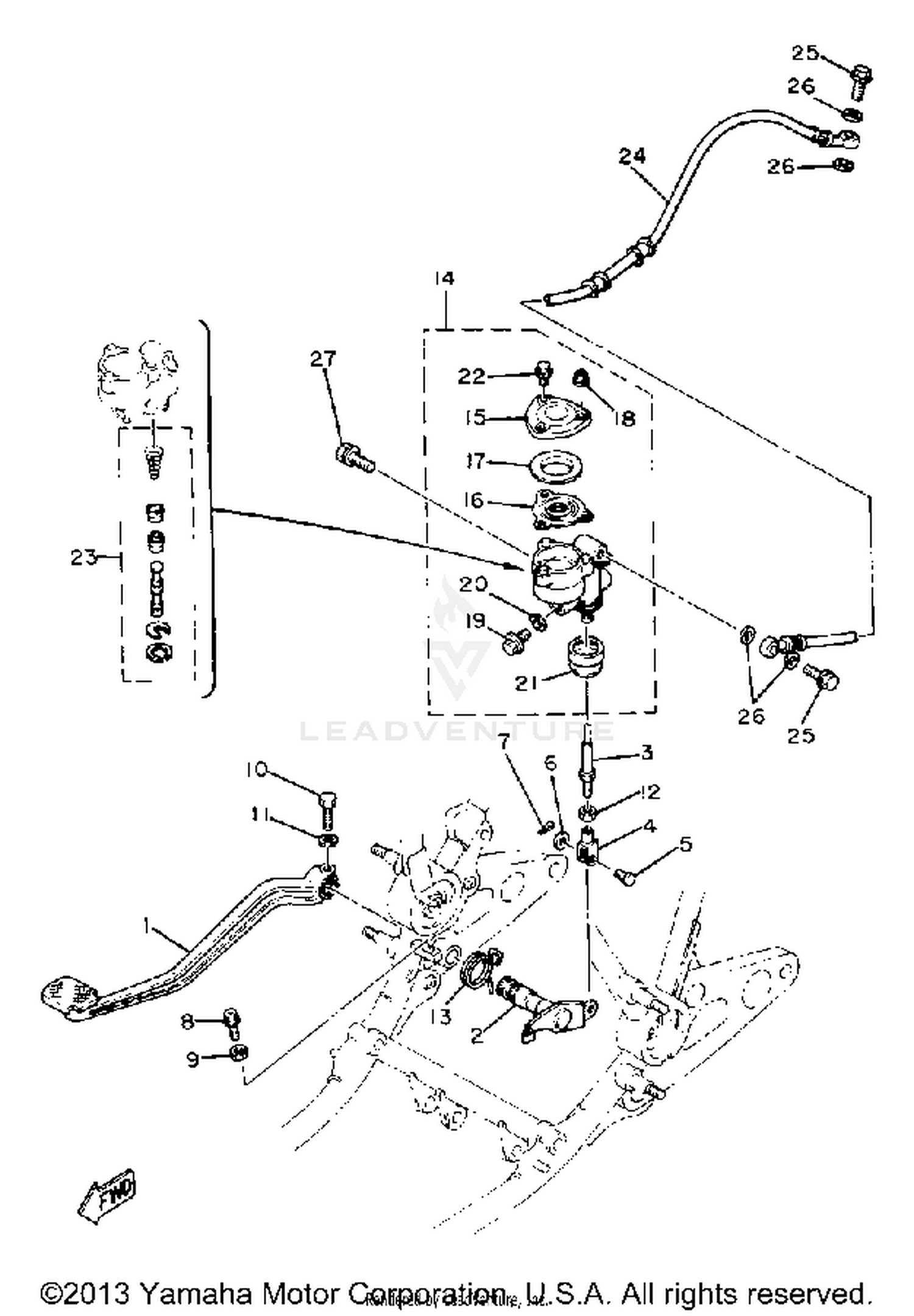

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4H1-27211-00-00
|
$45.40 | ||
|
Unavailable |
|||
|
#2
SHAFT, BRAKE PEDAL
4H1-27212-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#3
ROD, BRAKE
3J2-27231-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#4
JOINT
1J3-27222-01-00
Superseded by 47X-27222-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CLEVIS
90240-08013-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08083-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, HEXAGON
90153-06028-00
|
$0.60 | ||
|
Unavailable |
|||
|
#9
NUT
90170-06184-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
90109-06468-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-45405-00
|
$1.98 | ||
|
Unavailable |
|||
|
#14
MSTR CYLINDER ASSEMBLY
1J7-25850-52-00
|
$170.99 | ||
|
Unavailable |
|||
|
#15
CAP, RESERVOIR
1J3-25852-52-00
|
$20.99 | ||
|
Unavailable |
|||
|
#16
DIAPHRAGM RESERVOR
1J3-25854-51-00
|
$20.99 | ||
|
Unavailable |
|||
|
#17
BUSH, DIAPHRAGM
1J3-25855-51-00
|
$6.68 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, hexagon
90153-10015-00
|
$7.99 | ||
|
Unavailable |
|||
|
#20
WASHER, plate
90201-10610-00
|
$4.65 | ||
|
Unavailable |
|||
|
#21
BOOT, master cylinder
1J3-25862-51-00
|
$17.99 | ||
|
Unavailable |
|||
|
#22
BOLT, WASHER BASED
90105-05129-00
|
$2.58 | ||
|
Unavailable |
|||
|
#23
CYLINDER KIT, MASTER (1J3-200
1J3-W0042-50-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BRAKE
3J3-25874-01-00
|
$41.88 | ||
|
Unavailable |
|||
|
#25
BOLT, UNION
4H3-25877-00-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-08141-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
