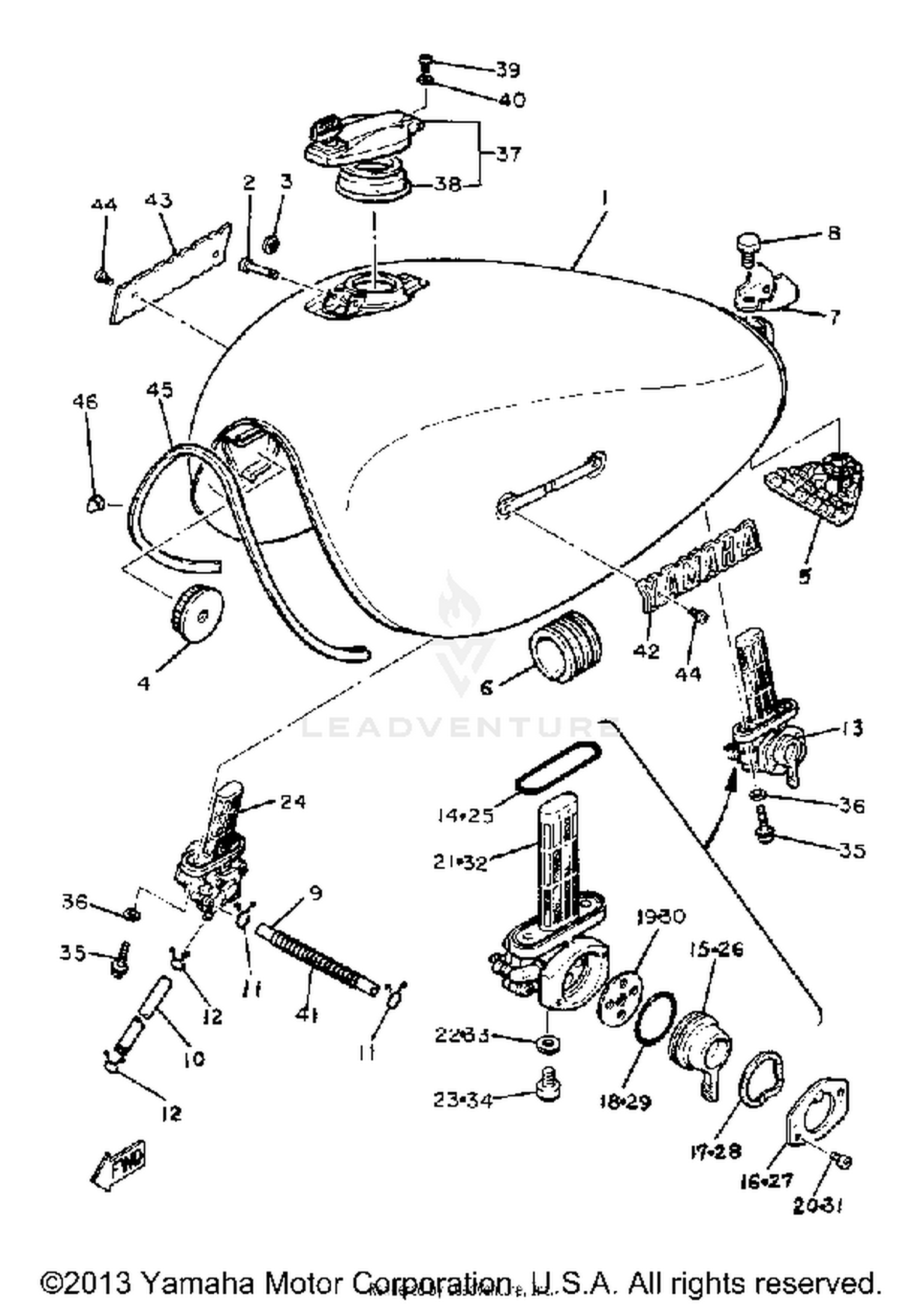

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2G2-24110-01-6G
|
$542.99 | ||
|
Unavailable |
|||
|
#2
PIN, SPECIAL SHAPE
90249-03123-00
|
$3.85 | ||
|
Unavailable |
|||
|
#3
CIRCLIP
93430-02001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
UNAVAILABLE IN PRICE BOOK
1J2-41810-10-0
|
|||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 2
1J7-24182-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
1J7-24183-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
3J2-24186-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#8
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
90445-10137-00
Superseded by 90445-10144-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L685)
90445-09489-00
Superseded by 90445-090G9-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FUEL COCK ASSEMBLY 1
2G2-24500-05-00
|
$110.99 | ||
|
Unavailable |
|||
|
#14
GASKET
2G2-24512-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, COCK
4H1-24524-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#16
PLATE, LVR FITTING
4H1-24525-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#17
WASHER, WAVE
16G-24518-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, COCK
2G2-24534-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE
16G-24523-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98506-03008-00
Superseded by 98517-03008-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
NET, FILTER 1
3Y1-24514-00-00
|
$50.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GASKET
2G2-24522-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUEL COCK ASSEMBLY 2
2G2-24510-05-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
2G2-24512-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#26
LEVER, COCK
4H1-24524-10-00
|
$4.15 | ||
|
Unavailable |
|||
|
#27
PLATE, LVR FITTING
4H1-24525-10-00
|
$2.58 | ||
|
Unavailable |
|||
|
#28
WASHER, WAVE
16G-24518-00-00
|
$3.45 | ||
|
Unavailable |
|||
|
#29
SEAL, COCK
2G2-24534-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
VALVE
16G-24523-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98506-03008-00
Superseded by 98517-03008-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
NET, FILTER 1
3Y1-24514-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#33
GASKET
2G2-24522-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN HEAD
90157-06019-00
|
$1.80 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CAP ASSEMBLY
4H1-24602-00-00
|
$54.44 | ||
|
Unavailable |
|||
|
#38
GASKET, CAP 1
2M0-24641-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
SPRING, COMPRESSION
90504-06030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
EMBLEM 1
4H1-24161-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#43
EMBLEM 2
4H1-24162-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#44
SCREW, COUNTERSUNK
90152-04006-00
|
$0.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
PLATE, MOLD
4H1-24189-00-00
|
$16.54 | ||
|
Unavailable |
|||
|
#46
CLIP
90468-03063-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
