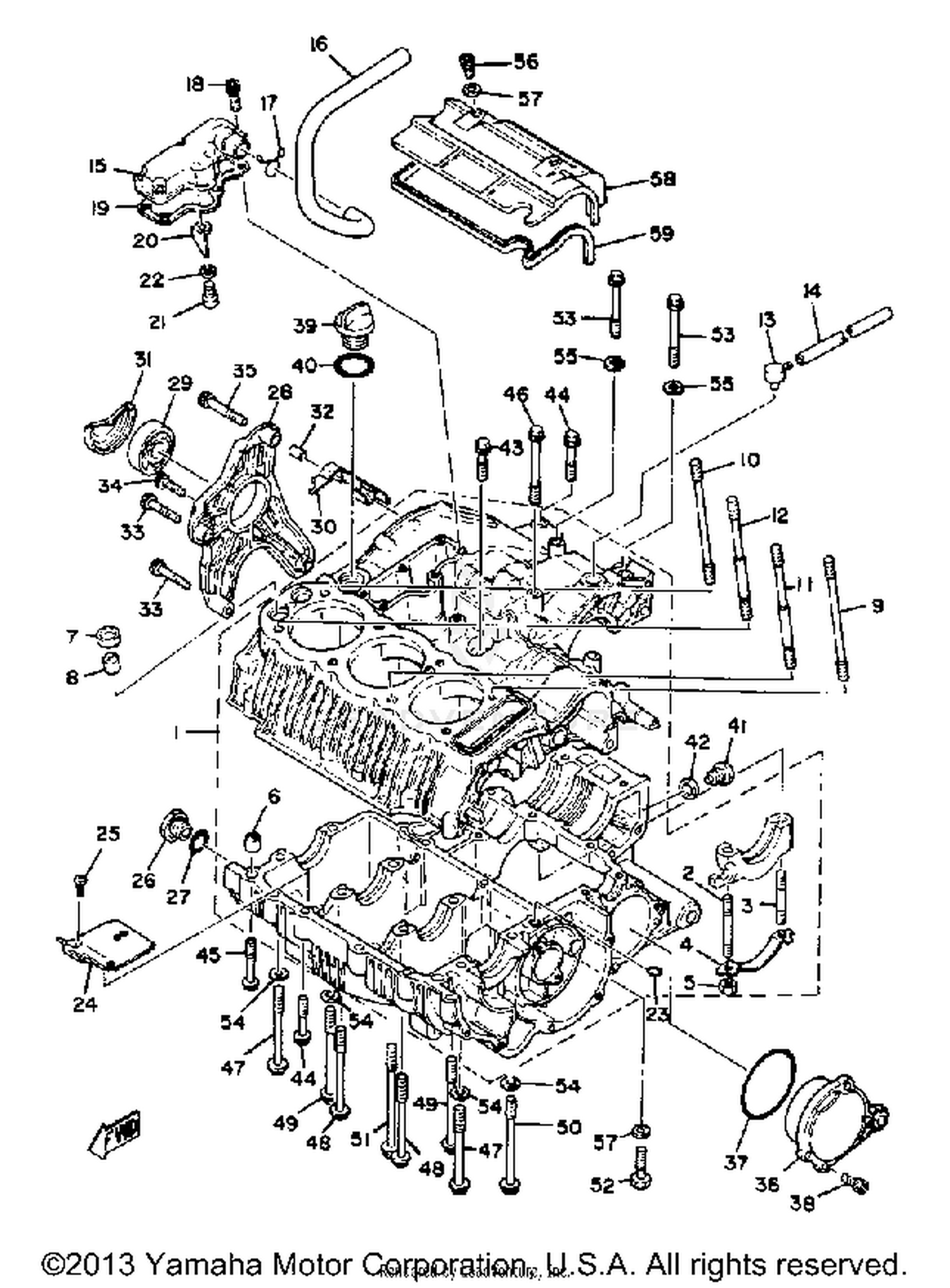

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
4H1-15100-00-00
|
$788.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08229-00
|
$1.28 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08230-00
|
$3.76 | ||
|
Unavailable |
|||
|
#4
WASHER, LOCK
2K3-15186-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#5
NUT, HEXAGON
90170-08158-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, CYLINDER 3
1J7-11357-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, STUD
90116-10273-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD
90116-10274-00
|
$5.82 | ||
|
Unavailable |
|||
|
#11
BOLT, CYLINDER HOLDING 3
2F3-11363-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
BOLT, CYLINDER HOLDING 4
2F3-11364-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#13
BREATHER
4H1-17591-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#14
HOSE (L310)
90445-07039-00
Superseded by 90445-072G8-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, BREATHER
2F3-11168-00-00
|
$12.92 | ||
|
Unavailable |
|||
|
#16
PIPE, BREATHER 1
2F3-11166-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#17
CLIP, PIPE
4H1-11189-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#18
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GASKET,BRTHR COVER
1J7-11169-00-00
Superseded by 1J7-11169-10-00
|
$4.25 | ||
|
Unavailable |
|||
|
#20
PLATE, BREATHER
1J7-11165-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-09350-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PLATE, BUFFLE 1
2F3-15123-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#25
SCREW, TAPPING
90167-05002-00
|
$0.75 | ||
|
Unavailable |
|||
|
#26
BOLT, UNION
90401-18042-00
|
$2.52 | ||
|
Unavailable |
|||
|
#27
O-RING
93210-18319-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOUSING, BEARING
1J7-15442-02-00
|
$29.38 | ||
|
Unavailable |
|||
|
#29
BEARING
93306-30407-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLECTOR, OIL
2F3-15432-01-00
|
$10.18 | ||
|
Unavailable |
|||
|
#31
RING, RUBBER
2F3-15449-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#32
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#33
BOLT
91316-08040-00
Superseded by 91317-08040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOUSING, BEARING 2
4E2-15164-00-00
|
$25.04 | ||
|
Unavailable |
|||
|
#37
O-RING
93210-71462-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
PLUG, OIL
2F3-15363-00-00
Superseded by 371-15363-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
O-RING
93210-29198-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
PLUG, STRAIGHT SCREW
90340-14118-00
Superseded by 90340-14004-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT, FLANGE
95816-08035-00
Superseded by 95817-08035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
BOLT, FLANGE
95816-08045-00
Superseded by 95817-08045-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE
95826-08050-00
|
$1.15 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE
95826-08085-00
|
$1.74 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE
95826-10095-00
|
$1.83 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE
95826-10100-00
|
$1.98 | ||
|
Unavailable |
|||
|
#49
BOLT, FLANGE
95826-10105-00
|
$1.83 | ||
|
Unavailable |
|||
|
#50
BOLT, FLANGE
95826-10115-00
|
$2.39 | ||
|
Unavailable |
|||
|
#51
BOLT, FLANGE
95826-10125-00
|
$2.39 | ||
|
Unavailable |
|||
|
#52
BOLT, HEXAGON
97313-08040-00
Superseded by 97014-08040-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
BOLT, FLANGE
95816-08075-00
|
$2.10 | ||
|
Unavailable |
|||
|
#54
WASHER, PLATE
90201-10128-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, PLATE
90201-084G3-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
WASHER
92906-06200-00
Superseded by 92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
COVER, STRTG MOTOR
1J7-15436-00-00
|
$17.60 | ||
|
Unavailable |
|||
|
#59
GSKT, STRTG MTR CVR
1J7-15446-00-00
|
$7.26 | ||
|
Unavailable |
|||
