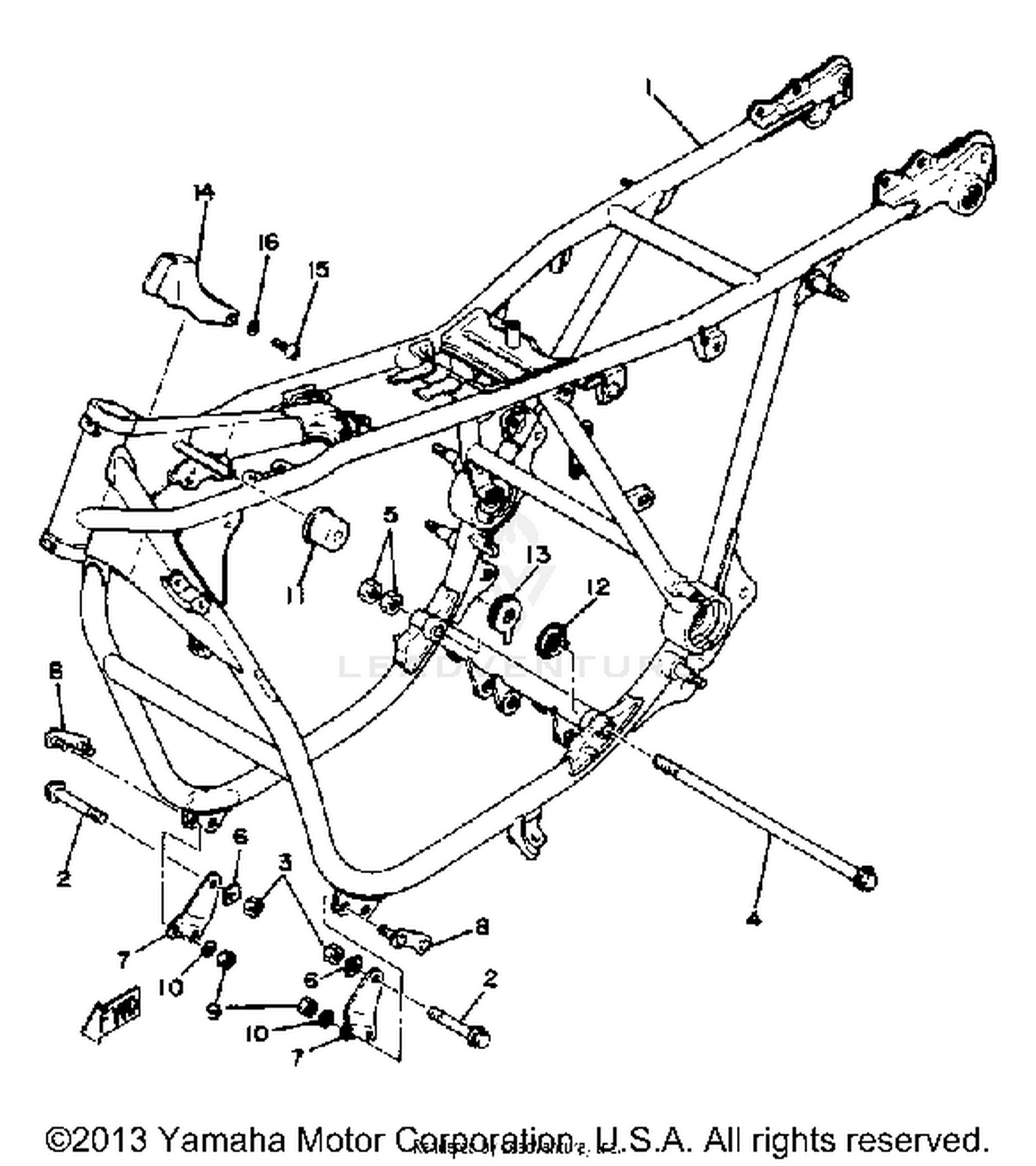

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4H1-21110-01-98
|
$595.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95816-10040-00
Superseded by 95814-10040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT
90109-12595-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
NUT
95316-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPEC''L SHAP
90209-10147-00
|
$0.94 | ||
|
Unavailable |
|||
|
#7
STAY, ENGINE 3
4H1-21316-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#8
BRACKET, FRT LWR 2
4H1-21418-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#9
NUT(6TA)
95336-08600-00
Superseded by 95337-08600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, TANK FTNG
2G2-21347-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#12
DAMPER, RUBBER 1
2G2-21485-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#13
DAMPER 2
2G2-21486-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#14
COVER 2
4H1-2139R-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER
92906-05200-00
Superseded by 92907-05200-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
