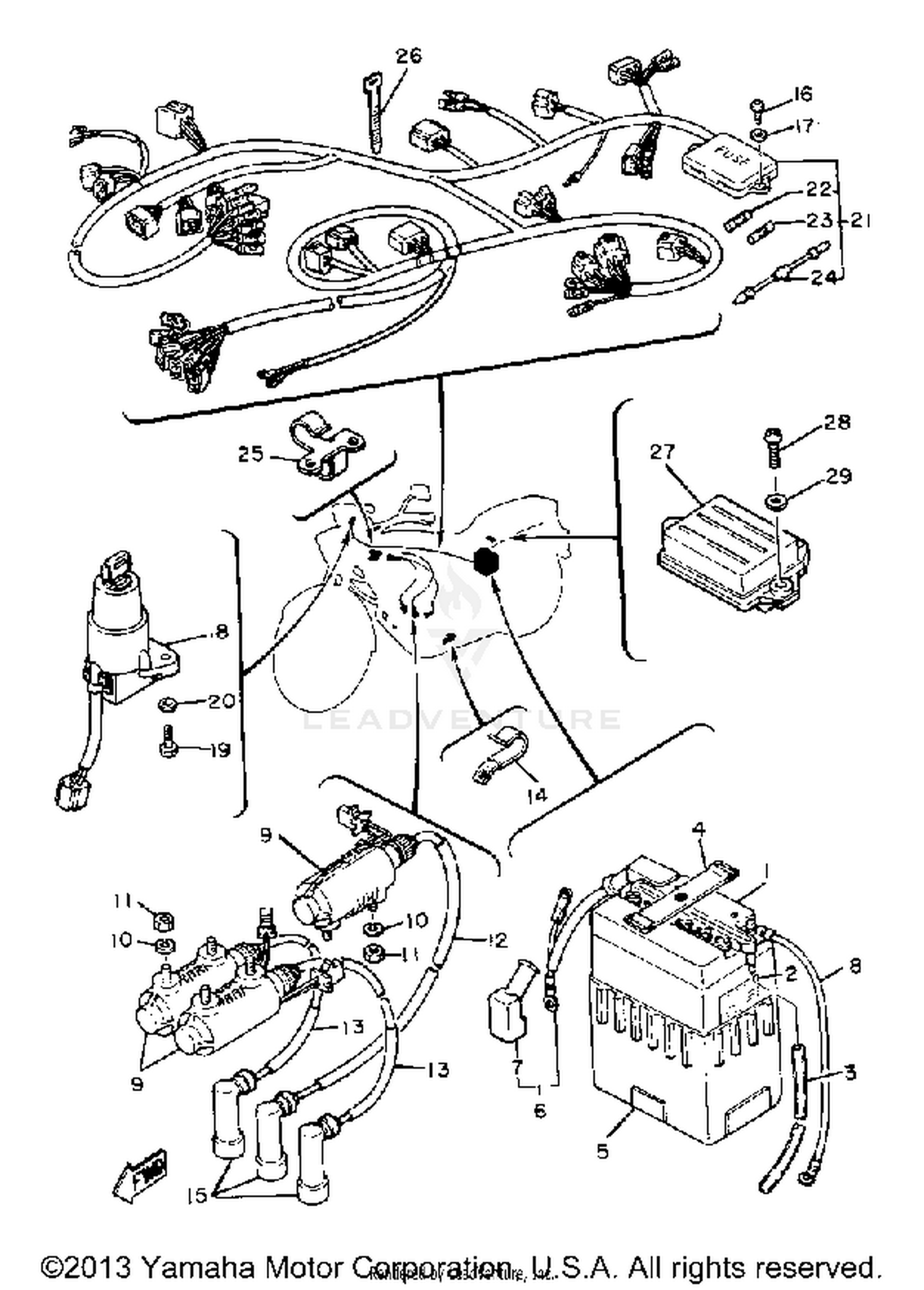

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YB14LA2 YUASA BATTE
BTY-YB14L-A2-00
Superseded by YB1-4LA20-00-00
|
$63.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#3
PIPE, BREATHER
2G2-82112-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#4
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, BATTERY
447-82122-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#6
WIRE, PLUS LEAD
1J7-82115-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#7
COVER, LEAD WIRE
1J7-82119-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#8
WIRE, MINUS LEAD
1J7-82116-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#9
IGNITION COIL ASS''Y
3Y6-82310-60-00
|
$161.99 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CORD, high tension 2
41R-82342-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CORD, HIGH TENS 1
4X7-82341-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90462-08056-00
Superseded by 90465-06376-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLUG CAP ASSEMBLY
1J7-82370-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
|
$0.60 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
MAIN SWCH STEER LOCK
3JV-82501-00-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WIRE HARNESS ASSEMBLY
4R2-82590-50-00
|
$129.99 | ||
|
Unavailable |
|||
|
#22
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE (12V-20A)
1A0-82161-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
DIODE
3H5-81980-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
2G2-82594-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#26
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
IGNITOR UNIT ASSEMBLY 1
4R2-82305-10-00
|
$344.99 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
