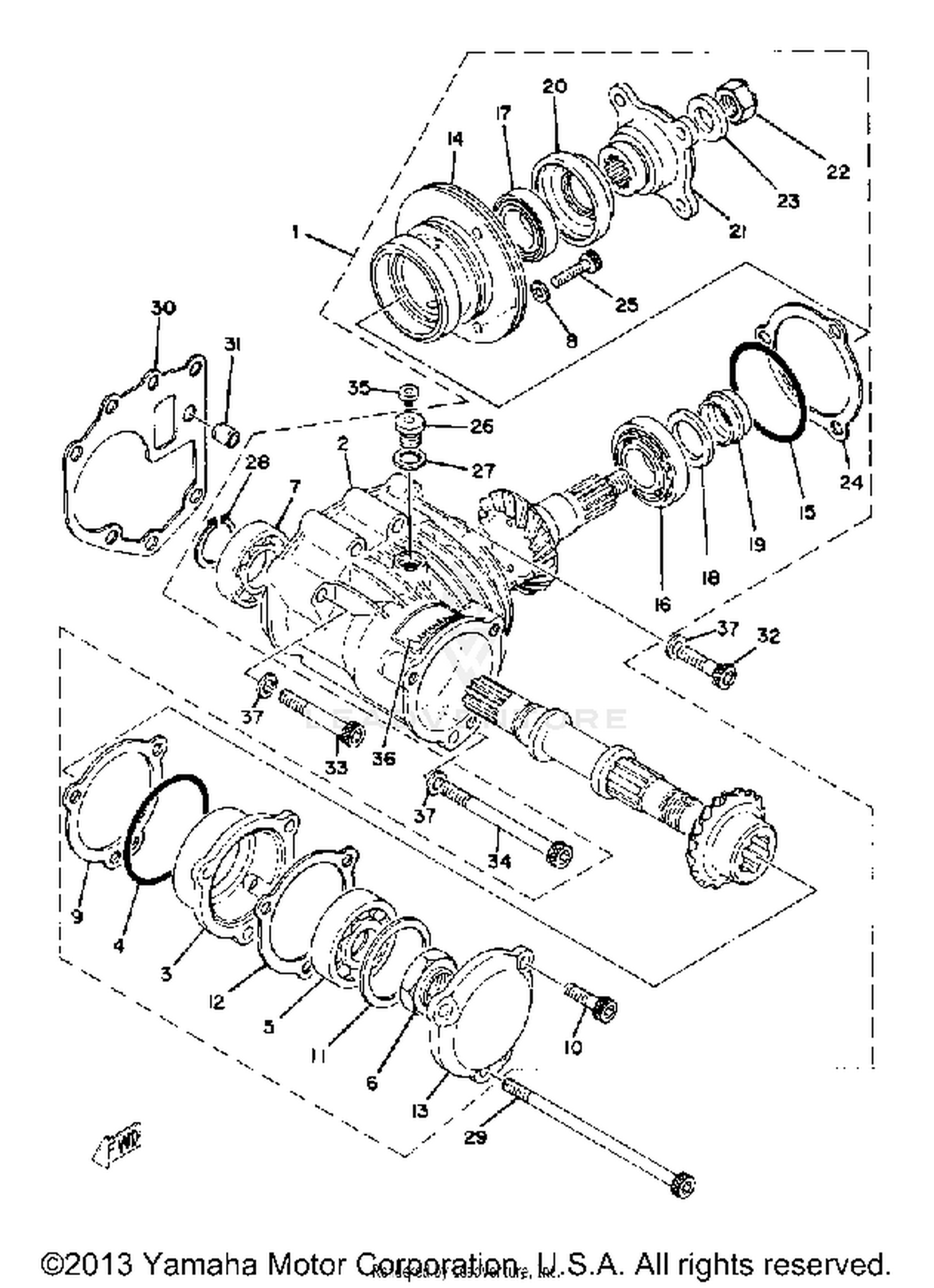

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MIDDLE GR CASE ASSEMBLY
4H1-17501-00-00
|
$570.99 | ||
|
Unavailable |
|||
|
#2
HOUSING, MIDDLE GR
2H9-17511-00-00
|
$186.99 | ||
|
Unavailable |
|||
|
#3
HOUSING, BEARING
1J7-17521-Y0-00
|
$16.32 | ||
|
Unavailable |
|||
|
#4
O-RING
93210-68347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-30533-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPEC''L SHAPE
90179-24230-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
BEARING
93306-00612-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08675-00
Superseded by 90201-086J0-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHIM, PINION
1J7-17531-Y0-15
|
$6.99 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91311-08030-00
Superseded by 91314-08030-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET,HOUSING CAP
1J7-17519-Y0-00
Superseded by 1J7-17519-10-00
|
$9.99 | ||
|
Unavailable |
|||
|
#13
CAP, HOUSING
4H1-17538-00-00
|
$24.50 | ||
|
Unavailable |
|||
|
#14
HOUSING, BEARING
2H7-17551-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-71360-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93332-00028-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93332-00024-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-25634-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER, EXPANSION
2H7-17571-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93101-35085-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FLANGE, MIDDLE GEAR
1J7-17555-Y0-00
|
$68.99 | ||
|
Unavailable |
|||
|
#22
NUT, SELF-LOCKING
90185-14070-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-14633-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHIM, PINION
2H7-17531-00-15
|
$8.99 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
91311-08030-00
Superseded by 91314-08030-00
|
$2.55 | ||
|
Unavailable |
|||
|
#26
PLUG, STRAIGHT SCREW
90340-14046-00
Superseded by 90340-14002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT,SOCKET HEAD
91316-08160-00
Superseded by 91317-08160-00
|
$14.99 | ||
|
Unavailable |
|||
|
#30
GASKET,MDL GR CASE
1J7-17518-00-00
Superseded by 1J7-17518-10-00
|
$18.99 | ||
|
Unavailable |
|||
|
#31
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT
91316-08035-00
Superseded by 91317-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT,SOCKET HEAD
91316-08060-00
Superseded by 91317-08060-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, SOCKET HEAD
91316-08100-00
|
$3.27 | ||
|
Unavailable |
|||
|
#35
CAP, BOLT
341-23469-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
LABEL, OIL CAUTION
1J7-46181-11-00
|
$1.90 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-08675-00
Superseded by 90201-086J0-00
|
$10.49 | ||
|
Unavailable |
|||
