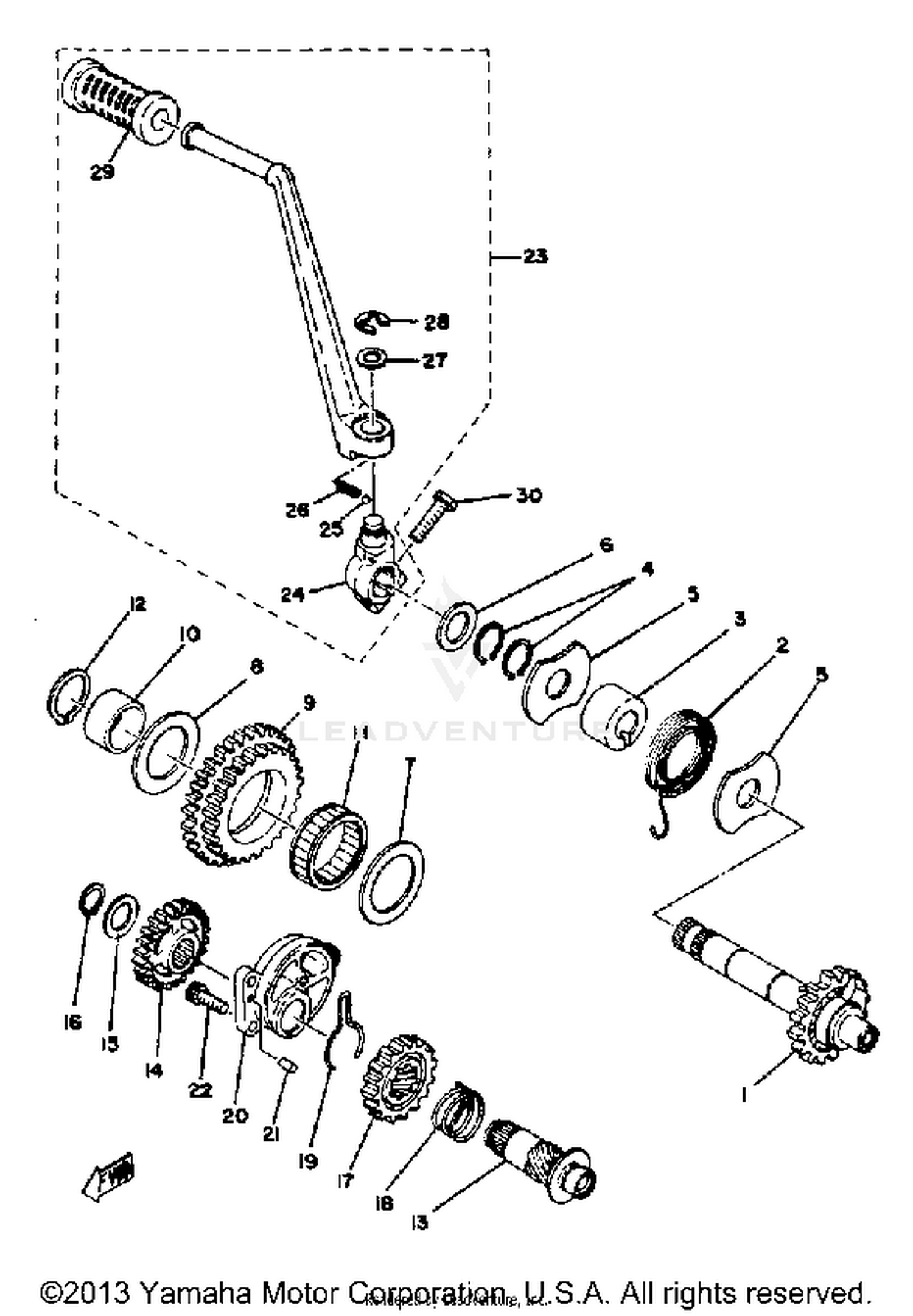

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
4H1-15660-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-30051-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
371-15666-00-00
|
$9.40 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER, SPRING
278-15676-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-20722-00
|
$4.16 | ||
|
Unavailable |
|||
|
#7
SHIM
1J7-15644-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#8
SHIM, KICK SHAFT
1J7-15645-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#9
IDLE GEAR ASSEMBLY
1J7-15650-00-00
|
$41.41 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-35544-00
|
$5.59 | ||
|
Unavailable |
|||
|
#11
BEARING, CYLINDER.#11
93311-84026-00
|
$10.80 | ||
|
Unavailable |
|||
|
#12
CIRCLIP, S-TYPE (S-35)
93410-35027-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
SHAFT
1J7-15659-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
GEAR 4
1J7-15516-01-00
|
$16.96 | ||
|
Unavailable |
|||
|
#15
SHIM 1
150-17417-00-10
|
$3.25 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
99009-17400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GEAR, KICK 5
1J7-15527-02-00
|
$60.99 | ||
|
Unavailable |
|||
|
#18
SPRING, COMPRESSION
90501-15469-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
CLIP
90468-26066-00
|
$2.60 | ||
|
Unavailable |
|||
|
#20
HOLDER, KICK GEAR
1J7-15654-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#21
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
KICK CRANK ASSEMBLY
4H1-15620-00-00
|
$43.24 | ||
|
Unavailable |
|||
|
#24
BOSS, KICK CRANK
4H1-15621-00-00
|
$47.66 | ||
|
Unavailable |
|||
|
#25
BALL 7-32
93507-32031-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SPRING, COMPRESSION
90501-12081-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER
4H1-15613-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#28
CIRCLIP
99006-10600-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
COVER, KICK LEVER
156-15618-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT
97326-08030-00
Superseded by 97017-08030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
