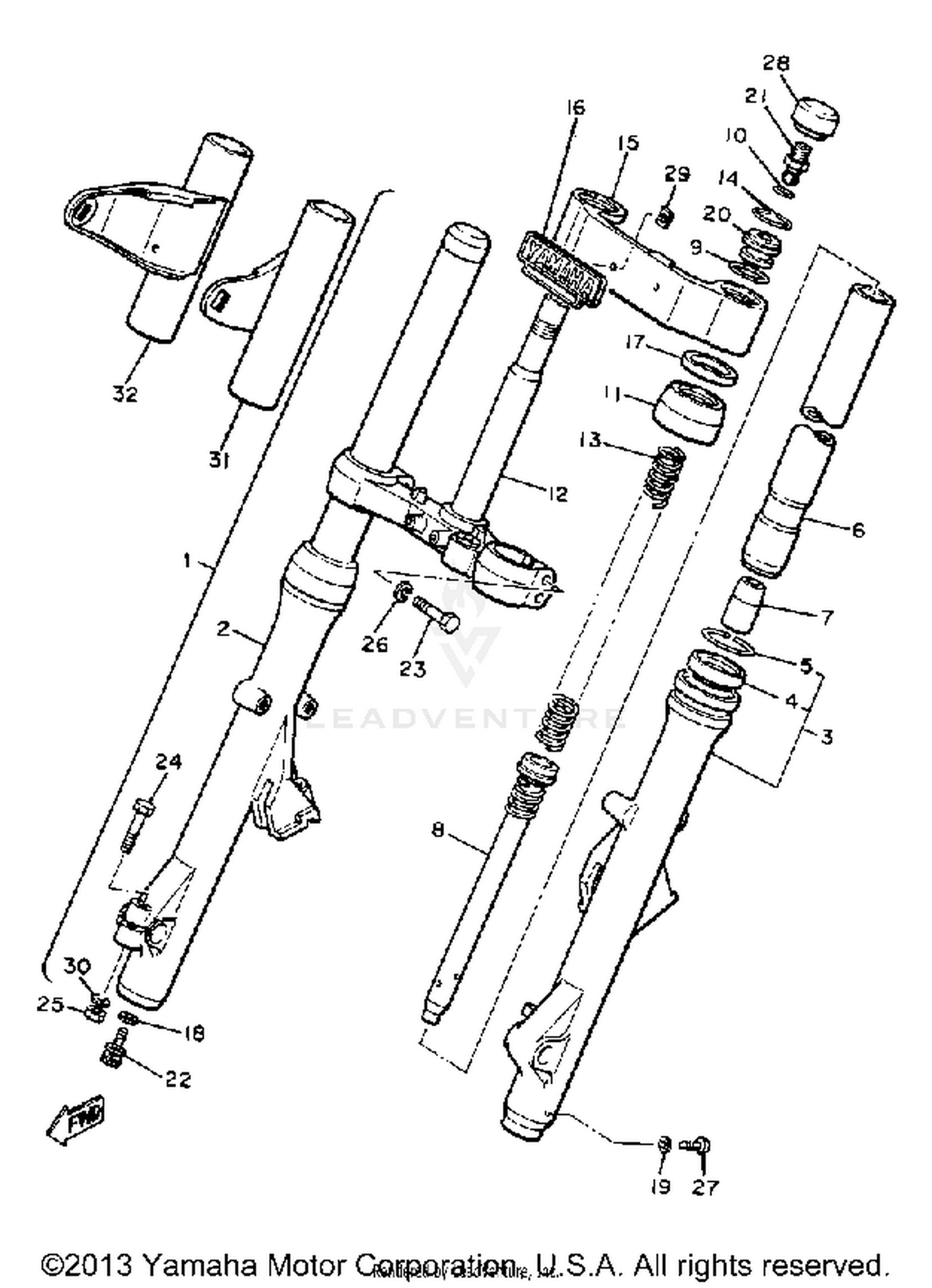

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
4H1-23101-00-00
|
$492.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
4H1-23136-00-6G
|
$147.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 1
4H1-23126-00-6G
|
$139.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
49A-23145-00-00
Superseded by 4ES-23145-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RING, SNAP
4A1-23156-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER TUBE 1
3J2-23110-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#7
SPINDLE, TAPER
1W1-23173-L0-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER, FRTFRK
3J2-23170-00-00
|
$47.04 | ||
|
Unavailable |
|||
|
#9
O-RING
3J2-23114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
3J2-23147-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
3J2-23144-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
UNDER BRACKET
3J2-23340-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#13
SPRING, FRONT FORK
3J2-23141-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#14
CIRCLIP
3J2-23183-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, OUTER 1
4H1-23122-00-00
|
$21.12 | ||
|
Unavailable |
|||
|
#16
EMBLEM
4H3-23395-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#17
GASKET (42H-23163-00-00)
2H7-23163-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
509-23158-L0-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, DRAIN PLUG
122-23129-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CAP
3J2-23111-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#21
AIR VALVE
4V4-23190-L0-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08262-00
|
$1.83 | ||
|
Unavailable |
|||
|
#24
BOLT
97026-08045-00
Superseded by 97017-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT(6TA)
95336-08600-00
Superseded by 95337-08600-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CAP, FRONT FORK
4X7-23168-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SPRING
90183-04012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 1
4H1-23121-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#32
COVER, UPPER 2
4H1-23131-00-00
|
$112.99 | ||
|
Unavailable |
|||
