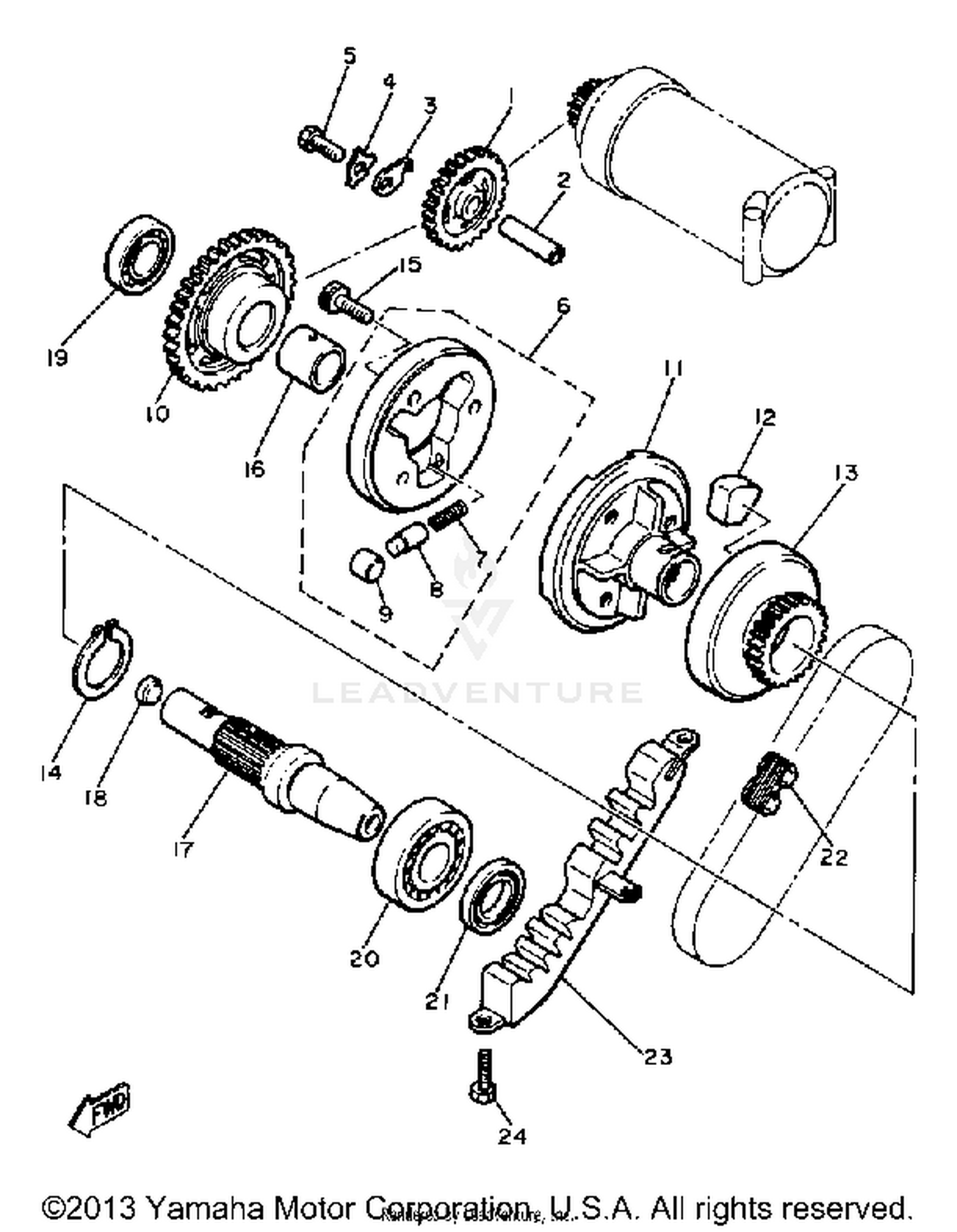

Starting Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1
4H7-15512-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
4H7-15521-00-00
Superseded by 3TJ-15521-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, STOPPER
2H7-15531-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
90215-06040-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER CLUTCH OUTER ASSY
4H7-15580-10-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-04596-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH SPRING
341-15583-05-00
Superseded by 1J7-15583-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93615-12088-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GEAR, IDLER 2
4H7-15517-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#11
WHEEL, STARTER
4H7-15524-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#12
ABSORBER 1
4H7-16155-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, STARTER 2
4H7-15519-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#14
CIRCLIP
93410-32052-00
Superseded by 93410-32075-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
91316-08014-00
Superseded by 91317-08014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-202A7-00
|
$19.49 | ||
|
Unavailable |
|||
|
#17
SHAFT 2
4H7-15522-00-00
|
$34.30 | ||
|
Unavailable |
|||
|
#18
PLUG, TIGHT
90331-12028-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-00426-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING (B6205)
93306-20541-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-25218-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAIN, PRIMARY
4H7-11456-00-00
Superseded by 4SV-11456-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUIDE, UPPER
4H7-11474-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
