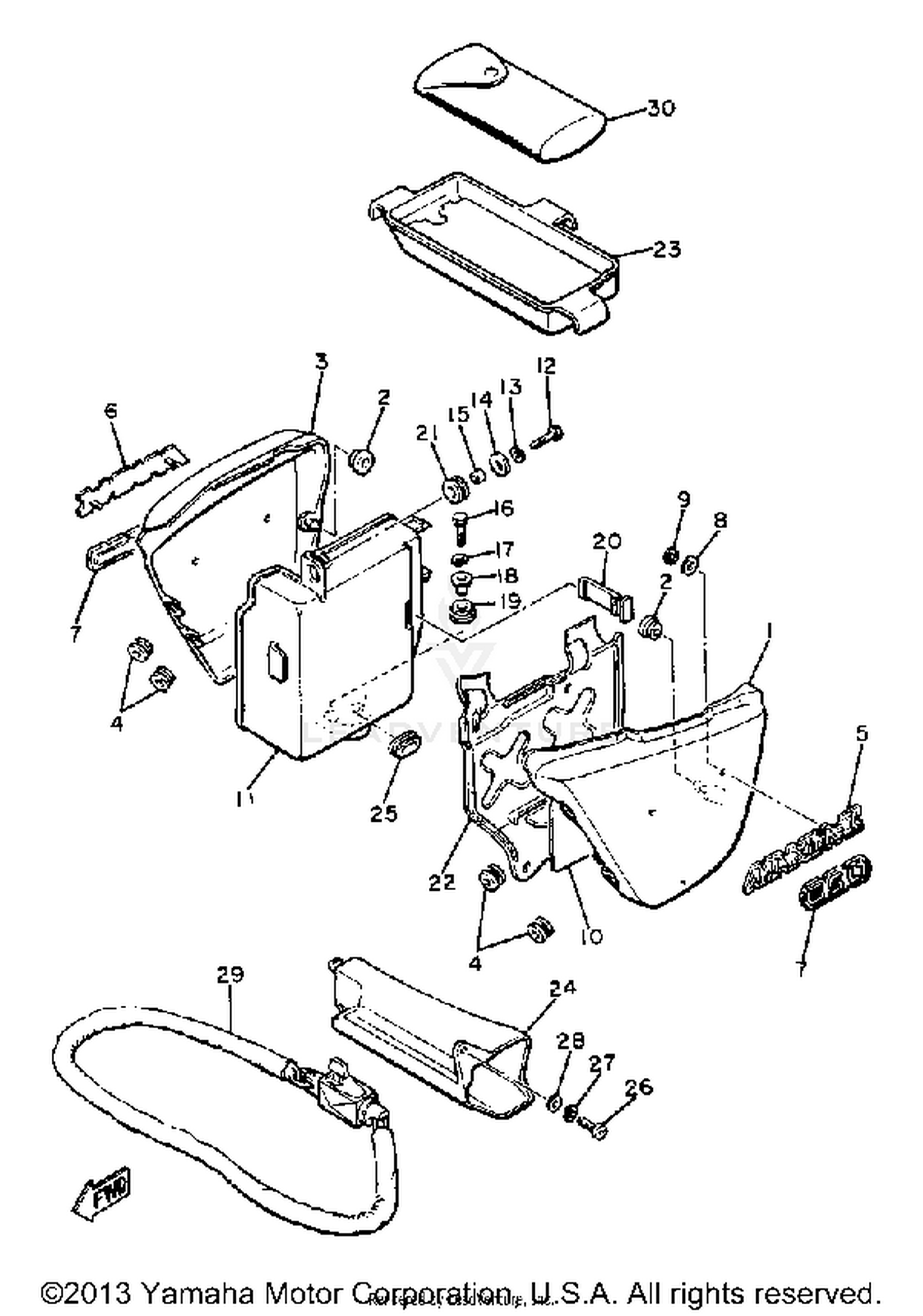

Side Cover Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
4H7-21711-00-2J
|
$64.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
4H7-21711-00-9G
|
$64.99 | ||
|
Unavailable |
|||
|
#2
GROMMET (41Y)
90480-01401-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COVER, SIDE 2
4H7-21721-01-2J
|
$57.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
4H7-21721-01-9G
|
$57.99 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-12053-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
EMBLEM 1
4H7-21781-10-00
|
$18.99 | ||
|
Unavailable |
|||
|
#6
EMBLEM 2
4H7-21782-10-00
|
$18.99 | ||
|
Unavailable |
|||
|
#7
EMBLEM 3
4H7-21783-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90202-04003-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, SPRING
90183-04005-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLATE, SPEC
4H7-21683-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
BOX
4H7-21240-01-00
|
$13.98 | ||
|
Unavailable |
|||
|
#12
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97013-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92902-08100-00
Superseded by 92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR (46Y)
90387-093H1-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
4H7-21746-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
HOOK, BANK
4H7-2175R-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-16233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, BRIDGE
4H7-21243-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#23
BOX
4H7-21170-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#24
BOX
4H7-21258-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
GROMMET
90480-22084-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WHEEL LOCK ASSEMBLY (4X7-W2171-
4W5-W2171-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#30
TOOL KIT
1FX-28100-00-00
|
$211.99 | ||
|
Unavailable |
|||
