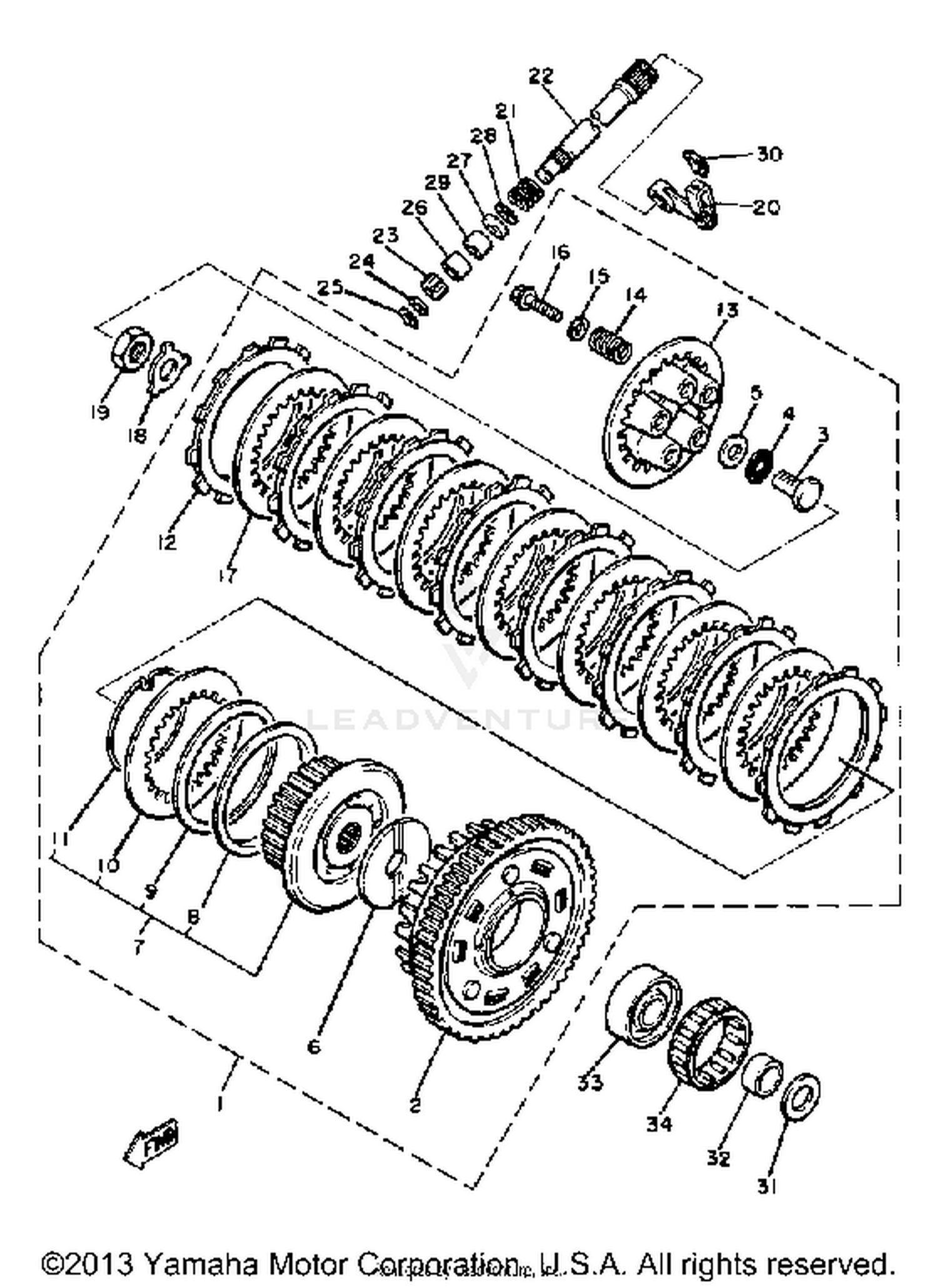

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
4H7-16300-10-00
|
$194.99 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEARCOMP. (97T)
4H7-16150-10-00
|
$329.99 | ||
|
Unavailable |
|||
|
#3
ROD, PUSH 1
4H7-16356-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93340-21505-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-154E9-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLATE, THRUST 1
4H7-16154-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLUTCH BOSS ASSY
4H7-16370-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, SEAT
1J7-16384-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH BOSS
1J7-16383-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 1
168-16324-00-00
Superseded by 168-16324-10-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
RING, CLUTCH BOSS
1J7-16385-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION
4H7-16321-01-00
Superseded by 4H7-16321-02-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, PRESSURE 1
4H7-16351-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#14
SPRING, COMPRESSION
90501-23598-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$15.99 | ||
|
Unavailable |
|||
|
#18
WASHER, LOCK
90215-20231-00
|
$3.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT
90170-20327-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PUSH LEVER ASY
4H7-16340-00-00
Superseded by 4HM-16340-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TORSION
90508-16459-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
AXLE, PUSH LEVER
4H7-16382-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PINION, RELEAS
4H7-16398-00-00
Superseded by 3LD-16398-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLIP
99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BEARING
93317-11020-00
Superseded by 93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93102-12224-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-12M34-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93315-11206-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, THRUST 1
2K7-16154-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-252A8-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER 1
4H7-16181-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, CYLINDER 10
93310-365H3-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
