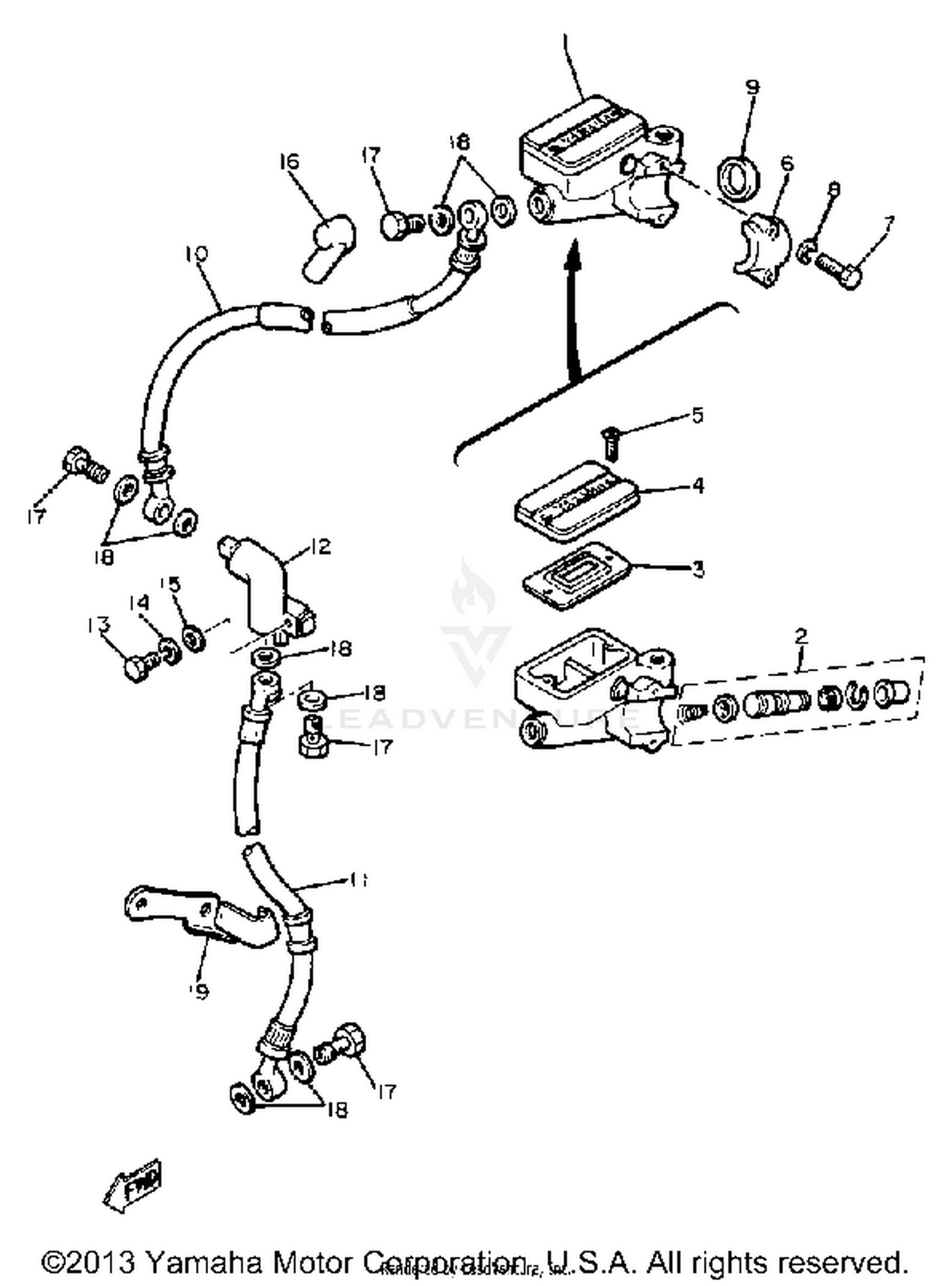

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSEMBLY
4H7-25850-02-00
|
$283.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4H7-W0041-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04010-00
Superseded by 98707-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COLLAR
90387-22660-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
2G2-25872-01-00
|
$92.99 | ||
|
Unavailable |
|||
|
#11
HOSE, BRAKE 2
4H7-25873-00-00
|
$42.12 | ||
|
Unavailable |
|||
|
#12
JOINT
1J7-25885-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOOT, MASTER CYLINDER
306-25862-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRKE HOSE 2
1J3-25876-02-00
|
$42.99 | ||
|
Unavailable |
|||
