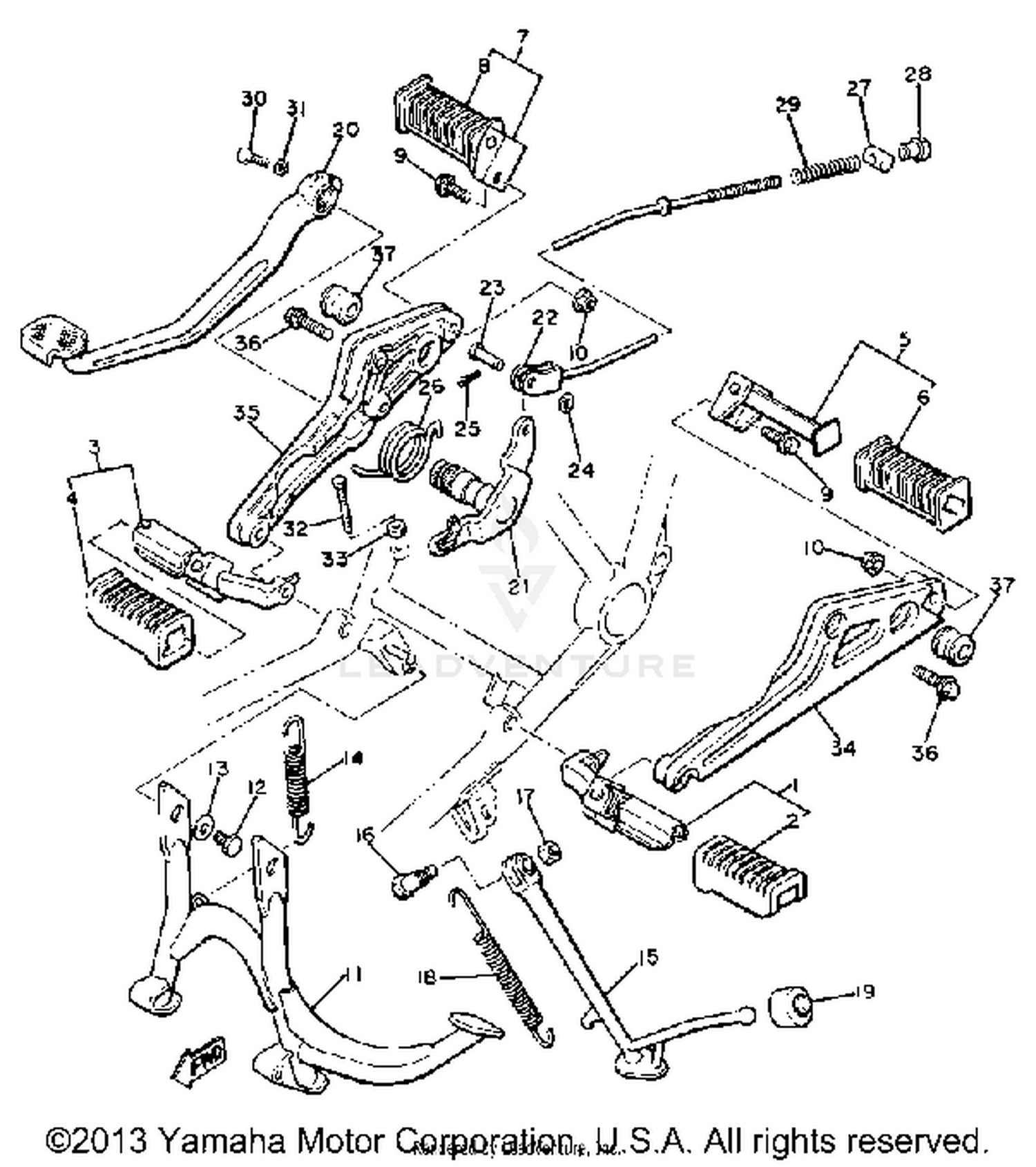

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FOOTREST ASSEMBLY L
4W5-27410-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#2
COVER, FOOTREST
4L0-27423-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRT FOOTREST ASSEMBLY R
4W5-27420-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#4
COVER, FOOTREST
4L0-27423-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#5
RR FOOTREST ASSEMBLY 1
4H7-27430-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#6
COVER, RR FOOTREST
1J7-27433-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR FOOTREST ASSEMBLY 2
4H7-27440-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#8
COVER, RR FOOTREST
1J7-27444-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95811-10035-00
Superseded by 95817-10035-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
STAND, MAIN
4H7-27111-00-R4
|
$79.48 | ||
|
Unavailable |
|||
|
#12
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING, TENSION
90506-35149-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAND, SIDE
4H7-27311-01-R4
|
$27.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TENSION
90506-28146-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, MAIN STAND
1A0-27114-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PEDAL, BRAKE
4H7-27211-00-00
|
$55.86 | ||
|
Unavailable |
|||
|
#21
SHAFT, BRAKE PEDAL
4H7-27212-00-00
|
$21.15 | ||
|
Unavailable |
|||
|
#22
ROD, BRAKE
4H7-27231-00-00
|
$10.58 | ||
|
Unavailable |
|||
|
#23
PIN, CLEVIS
90240-06103-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, TORSION
90508-45446-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
BOLT
90109-06468-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, HEXAGON
90153-06009-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
NUT
90170-06184-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BRACKET 2
4H7-27442-00-00
|
$88.10 | ||
|
Unavailable |
|||
|
#35
BRACKET 3
4H7-27443-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE
95811-10030-00
Superseded by 95817-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER, FOOTREST
3H3-27414-00-00
|
$11.18 | ||
|
Unavailable |
|||
