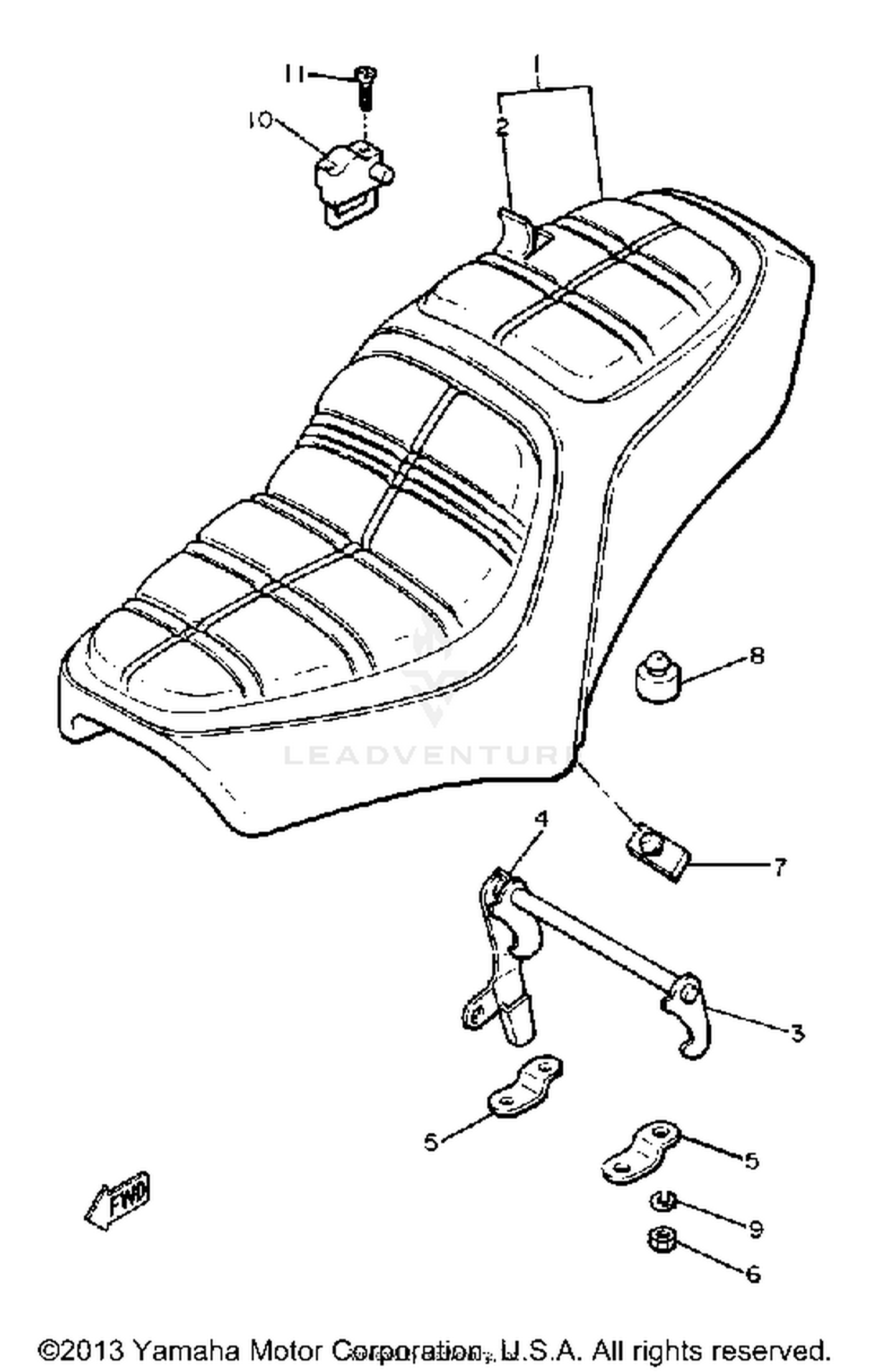

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
4H7-W2472-10-00
|
$303.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
4H7-24731-00-00
|
$160.99 | ||
|
Unavailable |
|||
|
#3
LEVER, SEAT
4H7-24776-00-00
|
$34.15 | ||
|
Unavailable |
|||
|
#4
SPRING, TORSION
90508-20412-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BRACKET, SEAT LEVER
4H7-24775-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#6
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
DAMPER, SEAT
4H7-24723-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#8
STOPPER, MAIN STAND
278-27114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT LOCK ASSEMBLY
4H7-24705-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#11
SCREW, FLAT HEAD
98701-05016-00
Superseded by 98707-05016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
