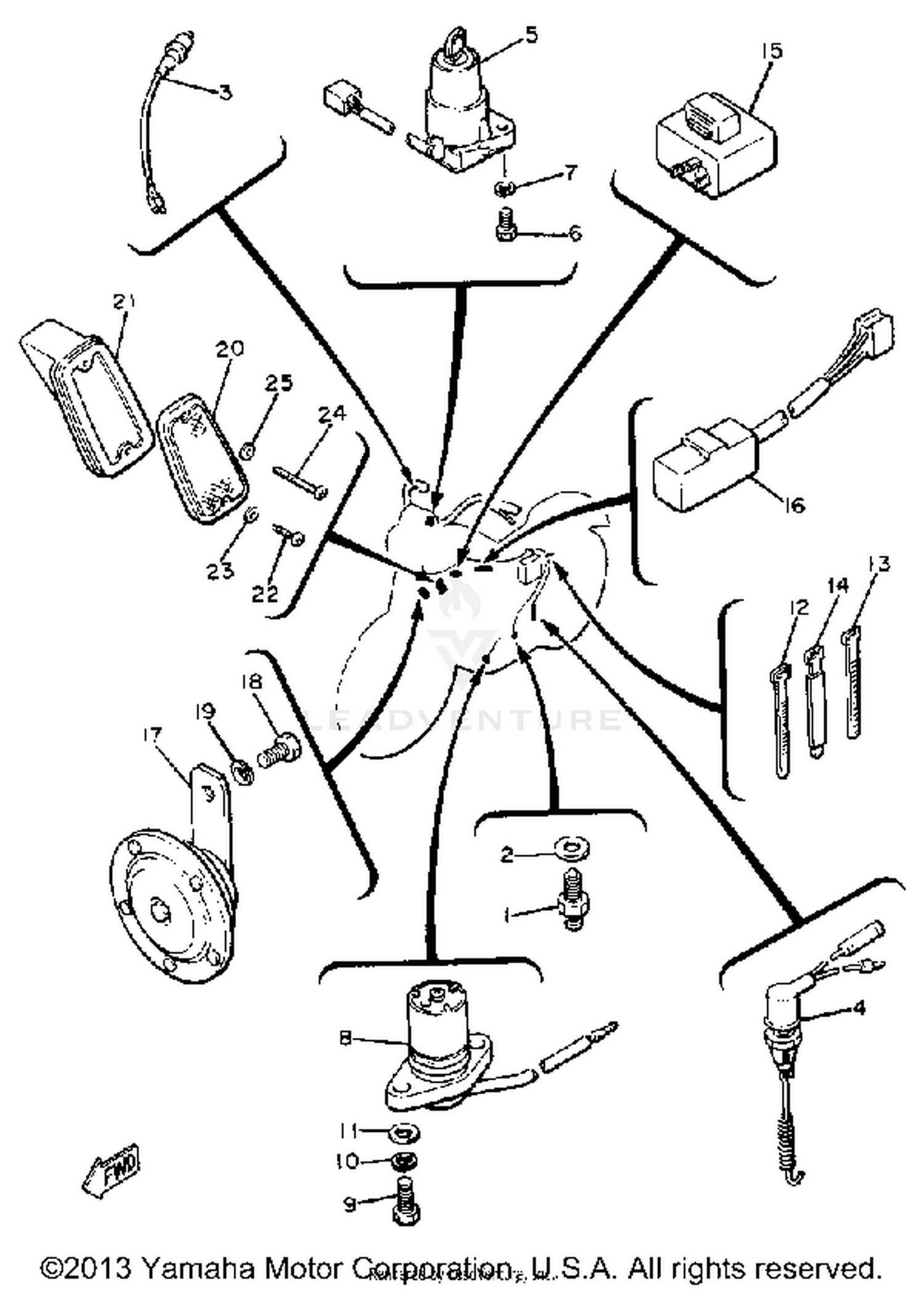

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
2H7-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOP SWITCH ASSEMBLY (1E9-82530
1E9-82530-02-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAIN SWCH STEER LOCK
3JV-82501-00-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
OIL LEVEL GAUGE ASSY
4H7-85720-01-00
Superseded by 4H7-85720-02-00
|
$178.99 | ||
|
Unavailable |
|||
|
#9
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#12
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, SWITCH CORD
25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLASHER RELAY ASSEMBLY
4H7-83350-70-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLASHER CANCELING UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#17
HORN
1J7-83371-22-00
|
$67.99 | ||
|
Unavailable |
|||
|
#18
BOLT
97011-08016-00
Superseded by 97017-08016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
FRONT REFLECTOR ASSEMBLY
3G1-85110-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#21
BASE, REFLECTOR
4H7-85127-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
849-84724-00-00
Superseded by 98580-04540-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Unavailable |
|||
