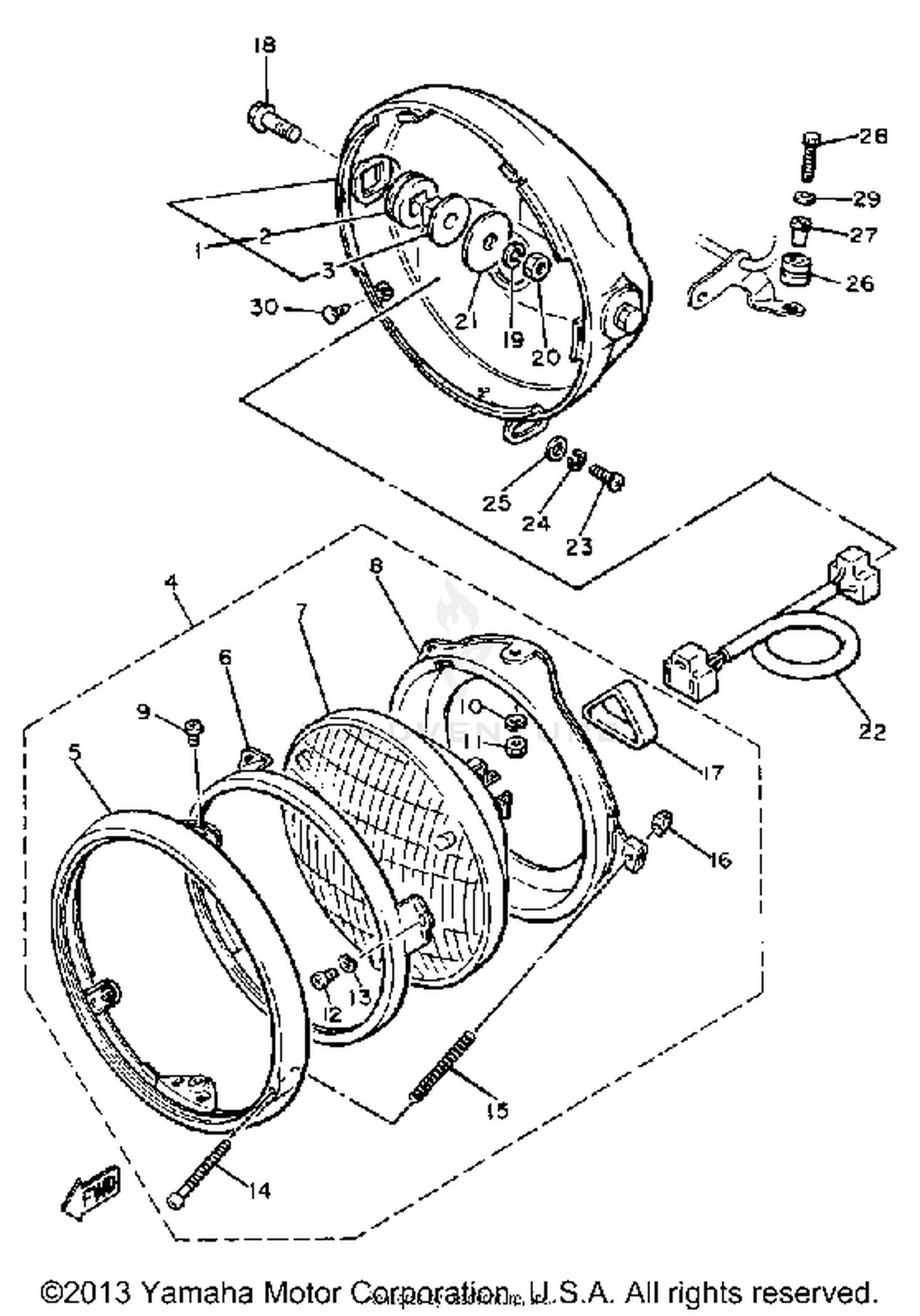

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
3J6-84330-00-93
|
$104.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, HEADLIGHT
584-84345-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, BODY FTNG
584-84338-60-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HEADLIGHT UNIT ASSEMBLY
2J2-84310-60-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM, HEADLIGHT
341-84315-40-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, RETAINING
2F9-84395-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LENS ASSEMBLY
341-84320-60-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, MOUNTING
2F9-84394-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT
95380-05600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, LENS FITTING
98580-04055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, SCREW
341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08174-00
Superseded by 95027-08030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92903-08100-00
Superseded by 92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CORD, HEADLIGHT
2H7-84359-00-00
|
$10.41 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-14023-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW, COUNTERSUNK
90152-05005-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
