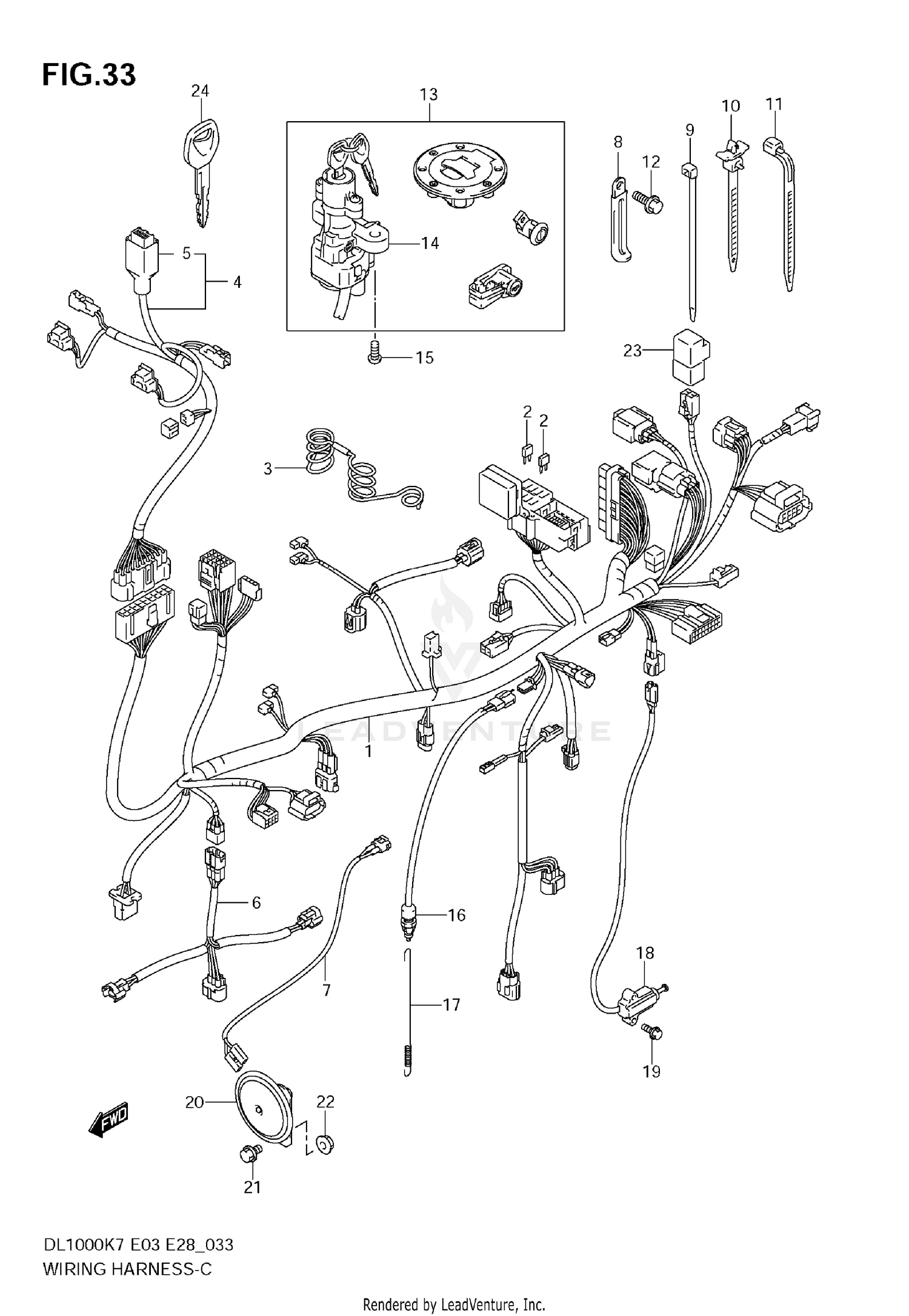

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-06G70
|
$1,062.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (15A)
09481-15501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, WIRING HARNESS
36619-06G01
|
$21.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
HARNESS, WIRING NO.2
36620-27G30
|
$223.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SPEEDOMETER
36618-18G10
|
$8.94 | ||
|
Unavailable |
|||
|
#6
WIRE, INJECTOR LEAD
36859-06G00
|
$24.76 | ||
|
Unavailable |
|||
|
#7
WIRE, HORN LEAD
36852-06G00
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#8
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:150)
09407-17402
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:95)
09407-11401
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT
01547-0610B
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK SET
37000-06860
Superseded by 37000-06863
|
$477.57 | ||
|
Unavailable |
|||
|
#13
LOCK SET
37000-06870
|
$415.66 | ||
|
Unavailable |
|||
|
#14
LOCK ASSY,STEER
37100-06G00
Superseded by 37100-06G01
|
$211.74 | ||
|
Unavailable |
|||
|
#15
SCREW (8X20)
09139-08016
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY, STOP LAMP
37740-45D00
|
$19.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, STOP LAMP
43259-06G00
|
$8.52 | ||
|
Unavailable |
|||
|
#18
SWITCH ASSY,SIDE STAND
37840-06G00
Superseded by 37840-06G02
|
$65.20 | ||
|
Unavailable |
|||
|
#19
.BOLT
01550-0616B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN ASSY
38500-41F00
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0812B
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
.NUT
08316-1008B
|
$3.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY, BLANK
37146-33E00
|
$26.20 | ||
|
Available to order. Add to View Price |
|||
