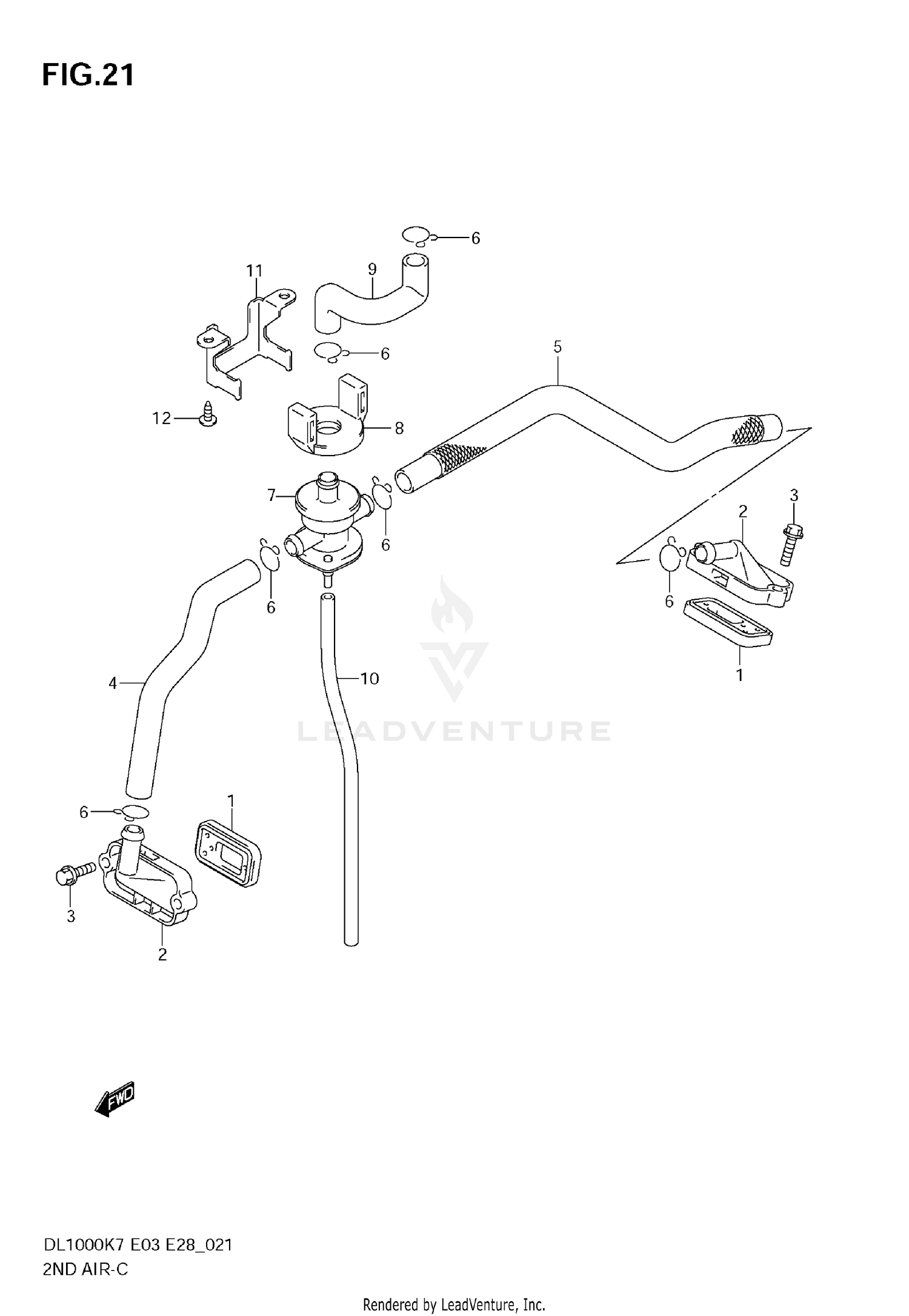

2nd Air Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
.VALVE ASSY,2ND AIR REED
18450-06G00
|
$38.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, 2ND AIR
18531-06G01
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09103-06201
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, 2ND AIR VALVE FRONT
18461-06G00
|
$11.34 | ||
|
Unavailable |
|||
|
#5
HOSE, 2ND AIR VALVE REAR
18471-06G00
|
$19.12 | ||
|
Unavailable |
|||
|
#6
CLIP (ID:15.5)
09401-15101
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE ASSY, AIR CUT
18510-35F00
|
$210.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, 2ND AIR CLEANER
18517-06G10
|
$6.69 | ||
|
Unavailable |
|||
|
#9
HOSE, 2ND AIR CLEANER
18711-06G10
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, 2ND AIR VALVE VACUUM
13697-02A00
|
$4.56 | ||
|
Unavailable |
|||
|
#11
BRACKET, 2ND AIR VALVE
18610-06G00
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
03541-0612B
|
|||
|
Unavailable |
|||
