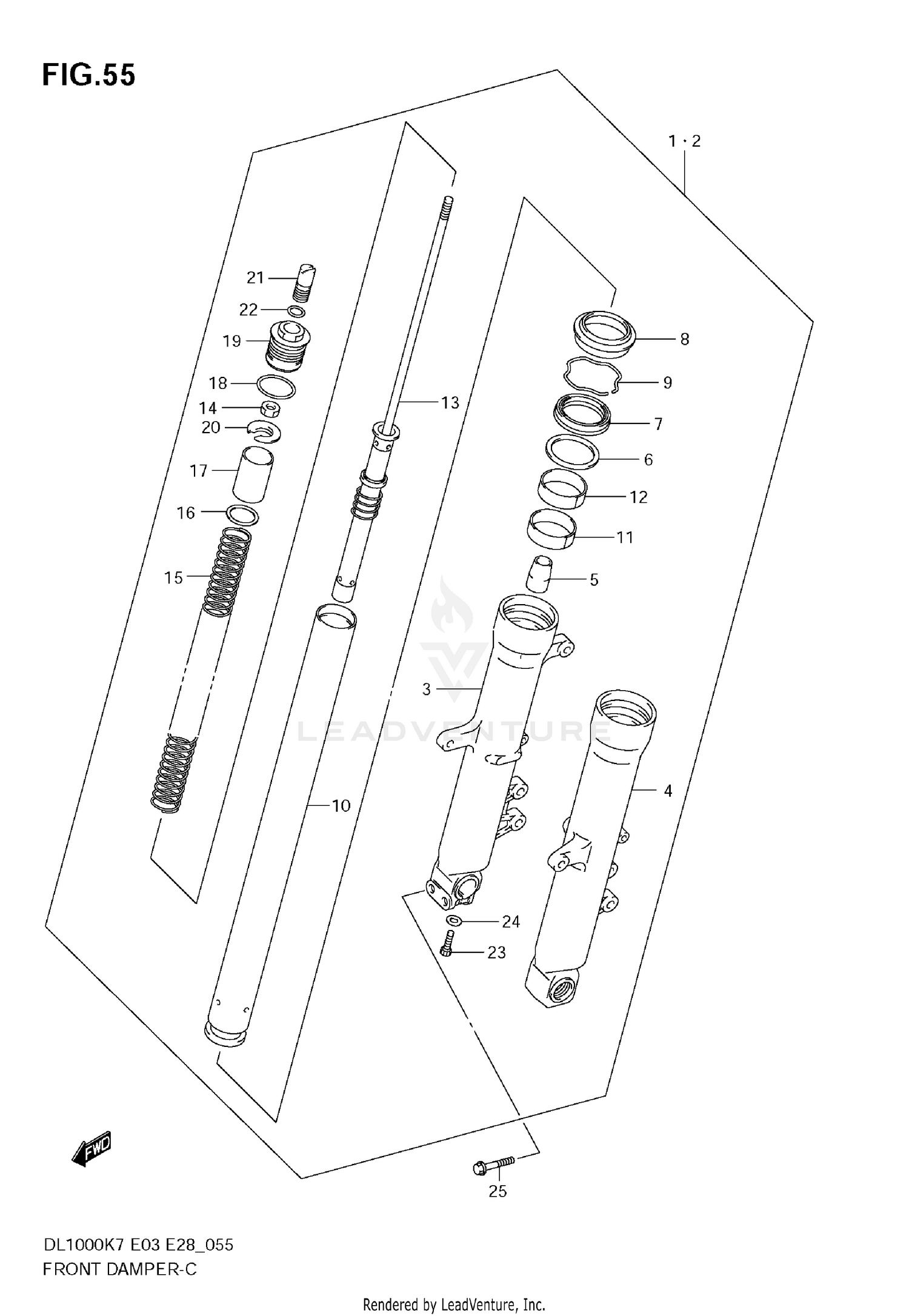

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-06G20
|
$973.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-06G20
|
$1,336.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTER RH
51130-06G00
|
$645.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, OUTER LH
51140-06G00
|
$645.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIECE, OIL LOCK
51195-31E00
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SPACER,SEAL
51168-17C00
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, OIL
51153-14D00
|
$28.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SEAL, DUST
51173-29E00
|
$32.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, OIL SEAL STOPPER
51556-38B00
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, INNER
51110-06G20
|
$530.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, SLIDE
51121-13E00
|
$23.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, GUIDE
51152-13E00
|
$24.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, FRONT DAMPER
52110-06G20
|
$389.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
.NUT
51827-27E00
|
$7.42 | ||
|
Unavailable |
|||
|
#15
SPRING, FRONT
51171-06G20
|
$112.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SEAT,SPRING,LOWER
51186-17C00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, SPRING
51176-12C10
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING
51117-17C00
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FORK
51189-14D00
|
$68.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT, SPRING UPPER
51172-17C00
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER, SPRING
51185-31E00
|
$70.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING
09280-14011
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
51147-48130
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#24
.GASKET (8.2X13X1.5)
51148-36011
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, RH
51166-06G00
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
