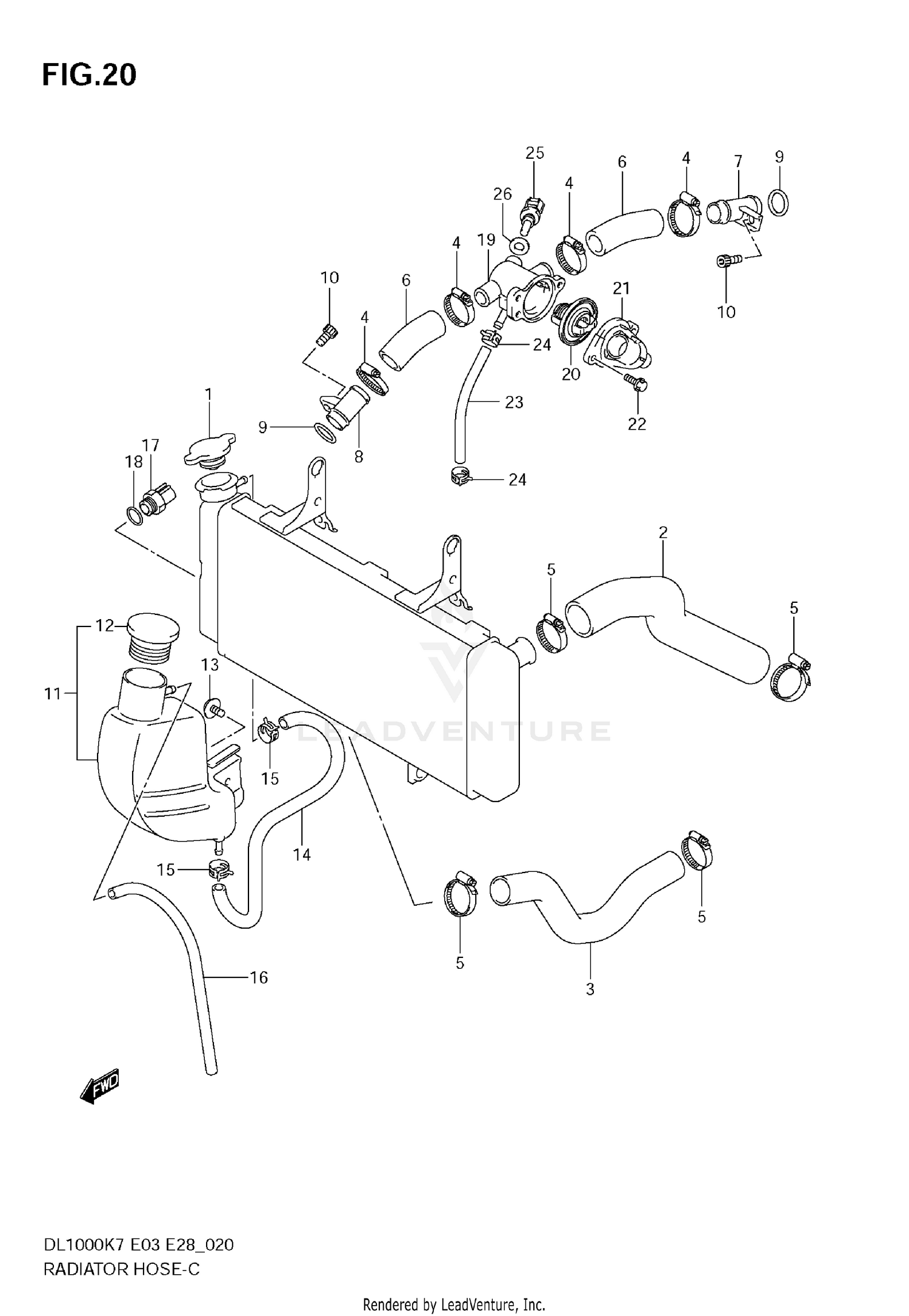

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP,RADIATOR (1.1)
17730-12C20
Superseded by 17730-08J00
|
$52.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, RADIATOR INLET
17851-06G00
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, RADIATOR OUTLET
17852-06G00
|
$30.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09402-28513
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
09402-38512
|
$14.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, CONNECTOR INLET
17853-02F00
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNION, CONNECTOR HOSE
17890-06G20
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNION, CONNECTOR HOSE
17890-06G20
|
$18.34 | ||
|
Unavailable |
|||
|
#9
O RING
09280-18009
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK ASSY, RESERVOIR
17910-06G10
|
$76.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
17931-06G00
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
09111-06085
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, RESERVOIR TANK INLET
17981-19F00
|
$15.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
09401-08411
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, RESERVOIR TANK
09352-50901-00B
|
$33.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH,RDTR FAN
17680-33E00
Superseded by 17680-33E01
|
$59.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING
17689-50F00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
CONNECTOR,THERMOSTAT,INLET
17662-02F11
|
$69.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
THERMOSTAT,WATER
17670-06G50
Superseded by 17670-06G51
|
$31.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP,THERMOSTAT CONNECTOR
17663-42E00
|
$59.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
.BOLT
01550-0616B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, WATER BYPASS
17856-16G10
|
$24.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
09401-12409
Superseded by 09401-12414
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
SENSOR, WATER TEMP
13650-57F00
|
$131.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, TEMP SENSOR
09168-12017
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
