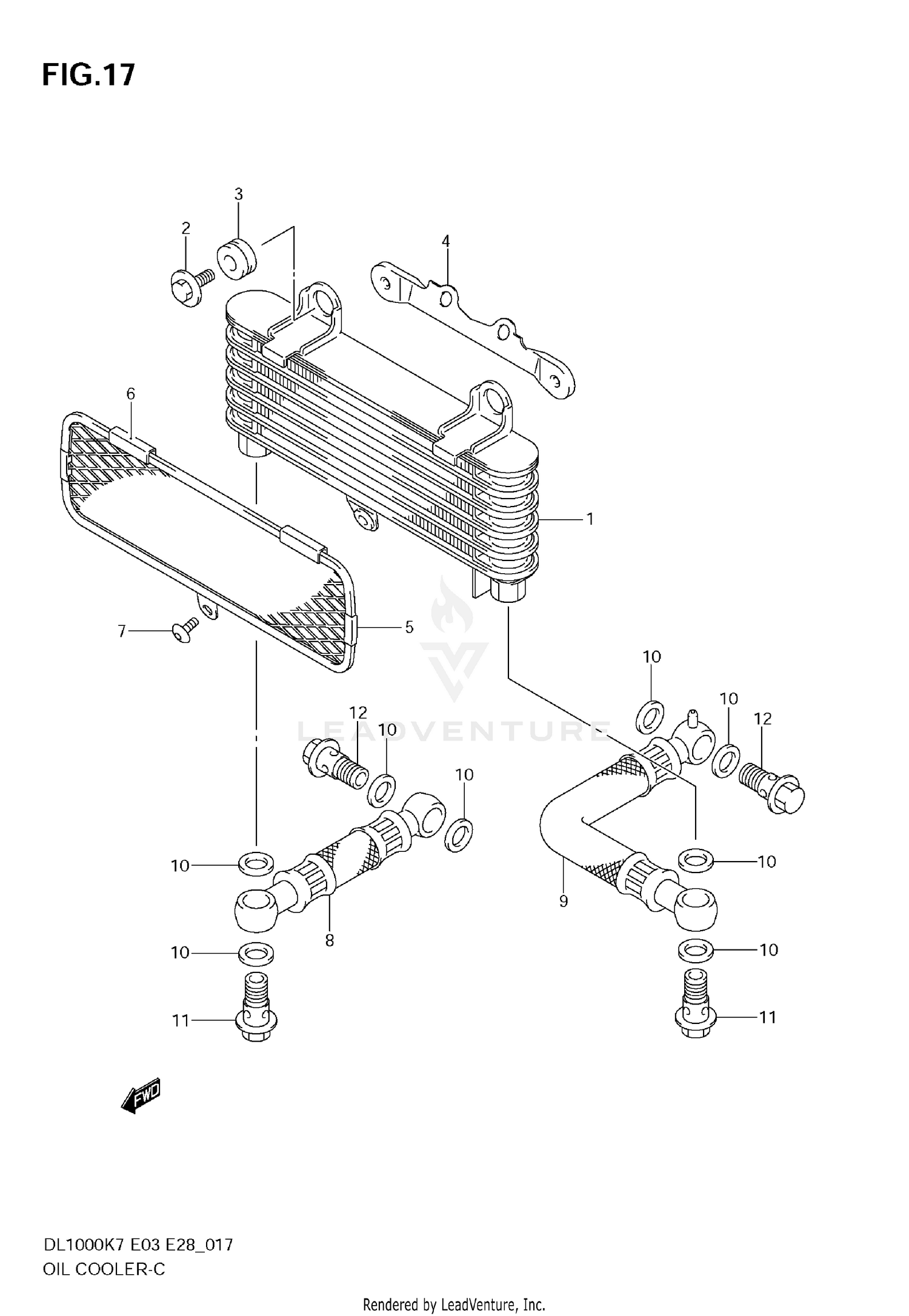

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-16G00
|
$873.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
09116-06167
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
09320-09009
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, OIL COOLER
16620-02F00
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUARD,OIL COOLE
16650-16G00
Superseded by 16650-16G01
|
$53.80 | ||
|
Unavailable |
|||
|
#6
.PROTECTOR,CTR
17765-09F00
Superseded by 17765-09F01
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, OIL COOLER, RH
16460-16G00
|
$165.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, OIL COOLER, LH
16470-16G00
|
$143.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET (14X20X1.5)
09168-14015
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, UNION
09360-12012
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09360-14015
Superseded by 09360-14012
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
