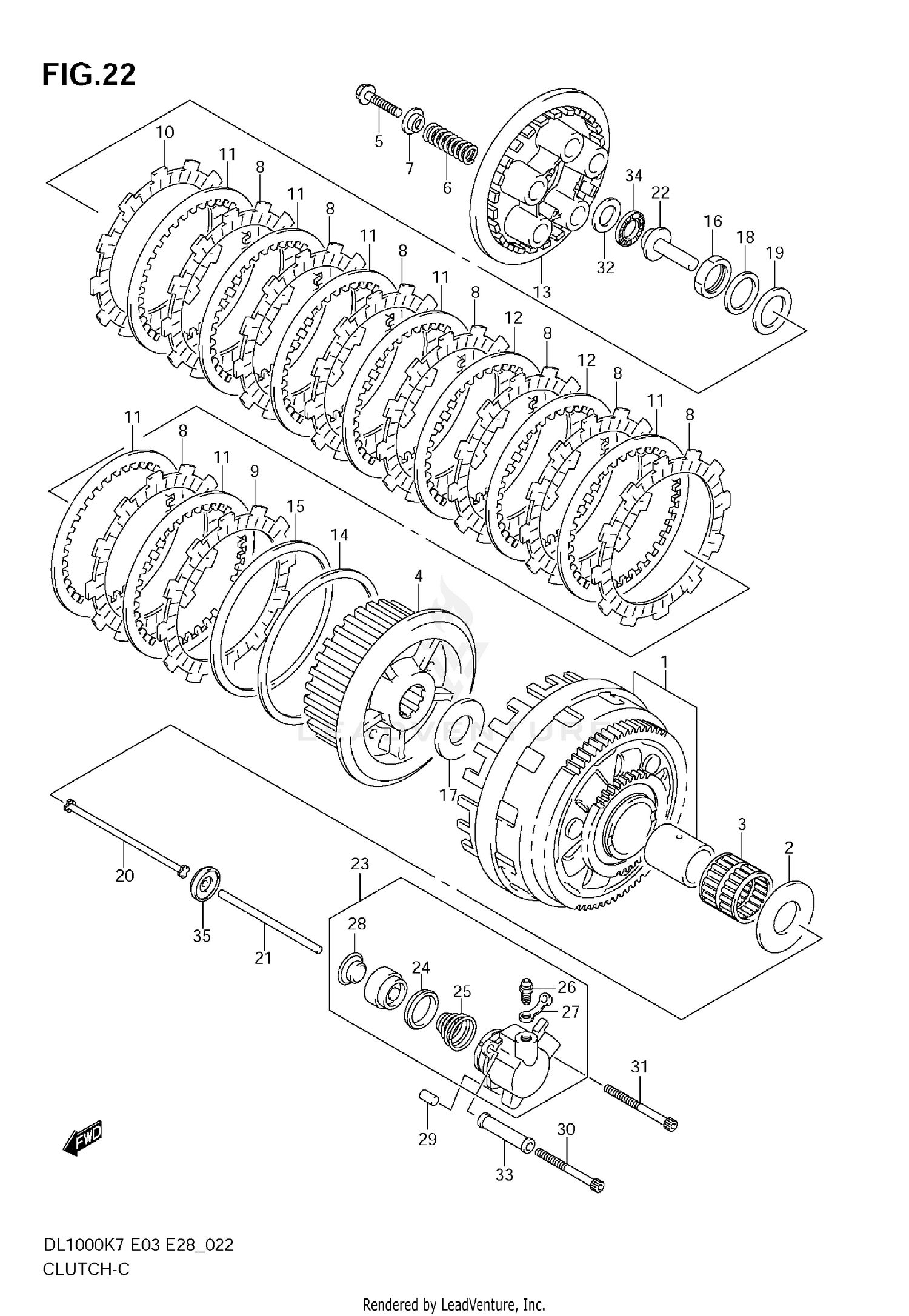

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-06811
|
$568.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (25X52X2.5)
09160-25074
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (35X40X39.8)
09263-35013
|
$43.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, CLUTCH SLEEVE
21410-06G00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SPRING SUPPORT
21412-06G00
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CLUTCH
21413-06G10
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
21414-29F00
|
$7.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVE
21441-24F20
Superseded by 21441-24F00
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,CLUTCH DRIVE,NO.3 (T:3.
21442-24F00
|
$29.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE,CLUTCH DRIVE,NO.2 (T:3.
21441-24F10
|
$29.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE,CLUTCH DRIVEN (T:2.0)
21451-24F00
|
$14.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE,CLUTCH DRIVEN (T:2.3)
21451-24F10
|
$14.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, CLUTCH PRESSURE
21462-06G00
|
$73.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, WAVE WASHER
21471-06G00
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,CLUTCH PLATE WAVE
21472-06G00
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CLUTCH SLEEVE HUB
09159-24010
|
$16.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER (25X50X2.5)
09160-25056
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (24.2X35X2)
09164-24006
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SLEEVE HUB NUT
09181-25223
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, CLUTCH PUSH RH
23110-27A00
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD,CLUTCH PUSH LH (L:132.5)
23111-26D00
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIECE, CLUTCH PUSH
23121-31E00
|
$30.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
CYLINDER,CLUTCH RELEASE
23160-06G02
Superseded by 23160-06G21
|
$131.86 | ||
|
Unavailable |
|||
|
#24
CUP
23163-06B00
|
$8.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SPRING
23164-05A00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#26
BLEEDER
59121-01A00
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, BLEEDER
59122-01A00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, DUST
23166-06G00
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, CL RLSE CYL
04221-08149
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, CL RLSE CYL
07130-0665A
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, CL RLSE CYL
07130-0670A
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, CLUTCH PUSH
09160-15045
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER, CL RELEASE
23171-06G00
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, CLUTCH PUSH
09263-15003
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (6X34X10.5)
09283-06008
|
$20.46 | ||
|
Available to order. Add to View Price |
|||
