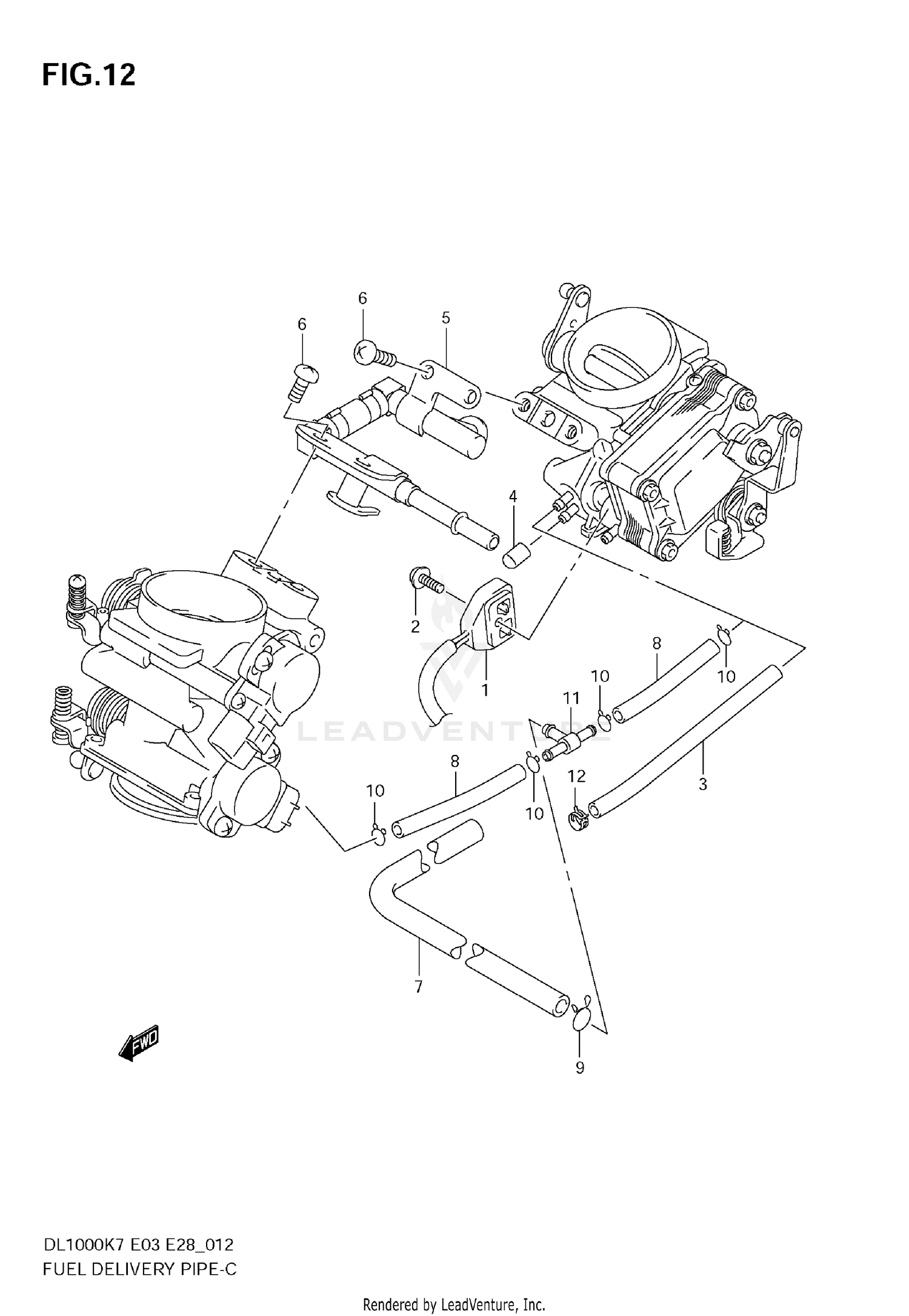

Fuel Delivery Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS ASSY
13477-39F00
|
$84.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-34163
Superseded by 02112-3416B
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
.HOSE
13683-10F60
Superseded by 13683-10F61
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP
13274-84000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
DELIVERY PIPE ASSY
15730-06G01
|
$327.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
13602-06128
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE
13683-06G11
|
$102.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13681-06G40
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
09401-10410
Superseded by 09401-10401
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP
09401-06101
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
NIPPLE
13685-04F10
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
09401-09403
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
