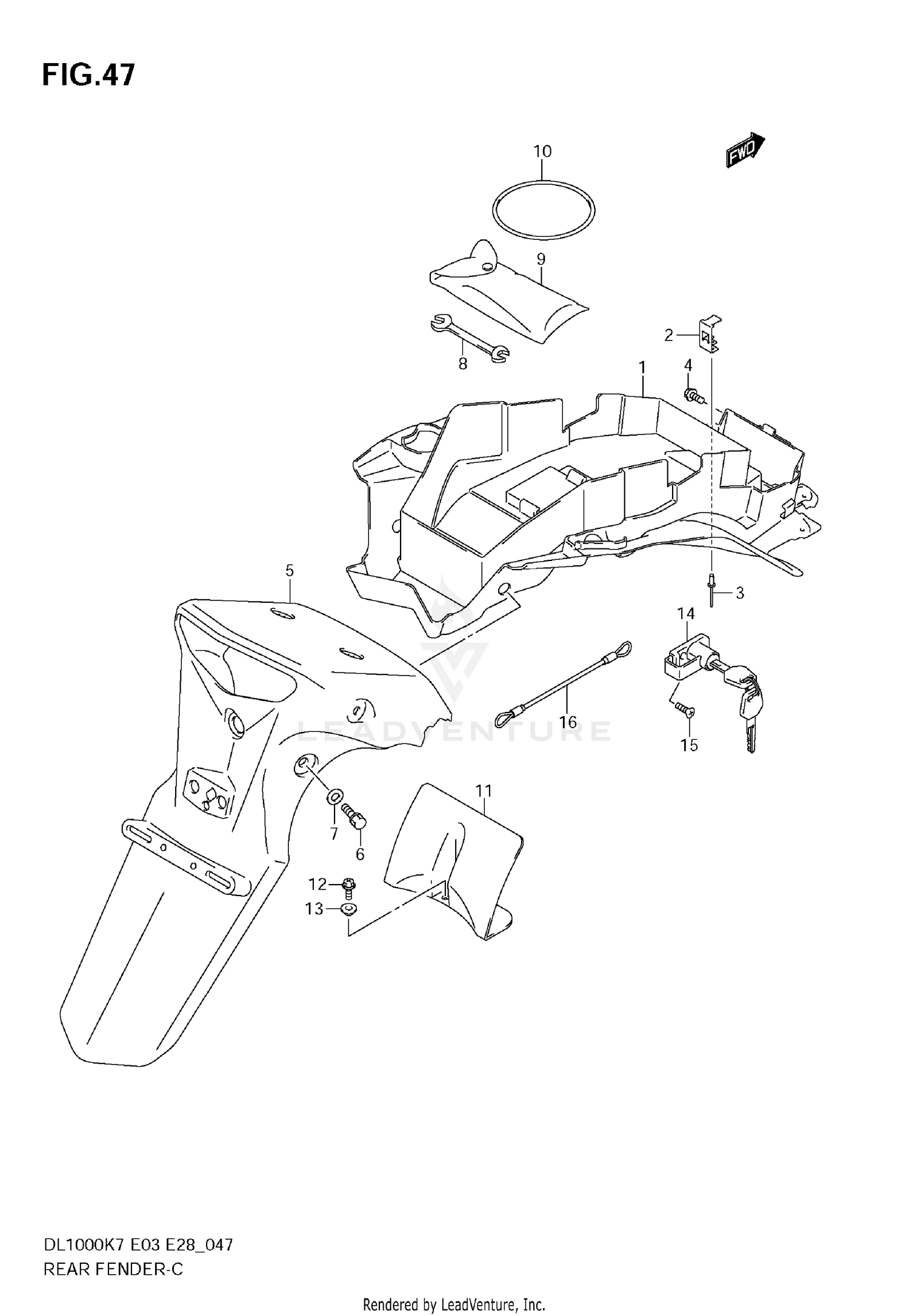

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR FRONT
63111-06G00
Superseded by 63111-06G10
|
$182.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, REAR FRONT
63111-06G10
|
$182.53 | ||
|
Unavailable |
|||
|
#2
BRACKET, FUEL SENSOR
47412-06G01
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIVET
09229-04020
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
09116-06210
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, REAR (BLACK)
63112-06G10-291
|
$230.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-0612B
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER
09160-06156
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPANNER, 8X10
09813-00027
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
TOOL ASSY
09800-21035
|
$117.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING(D:3.5,ID
09280-61002
Superseded by 09280-61004
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUD GUARD, REAR FENDER LOWER
63421-19F00
|
$24.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X16)
02162-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09169-06071
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
LOCK SET, HELMET
95700-42810
|
$116.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02122-0620B
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE,HELMET LO
95740-06G00
Superseded by 95740-06G01
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
