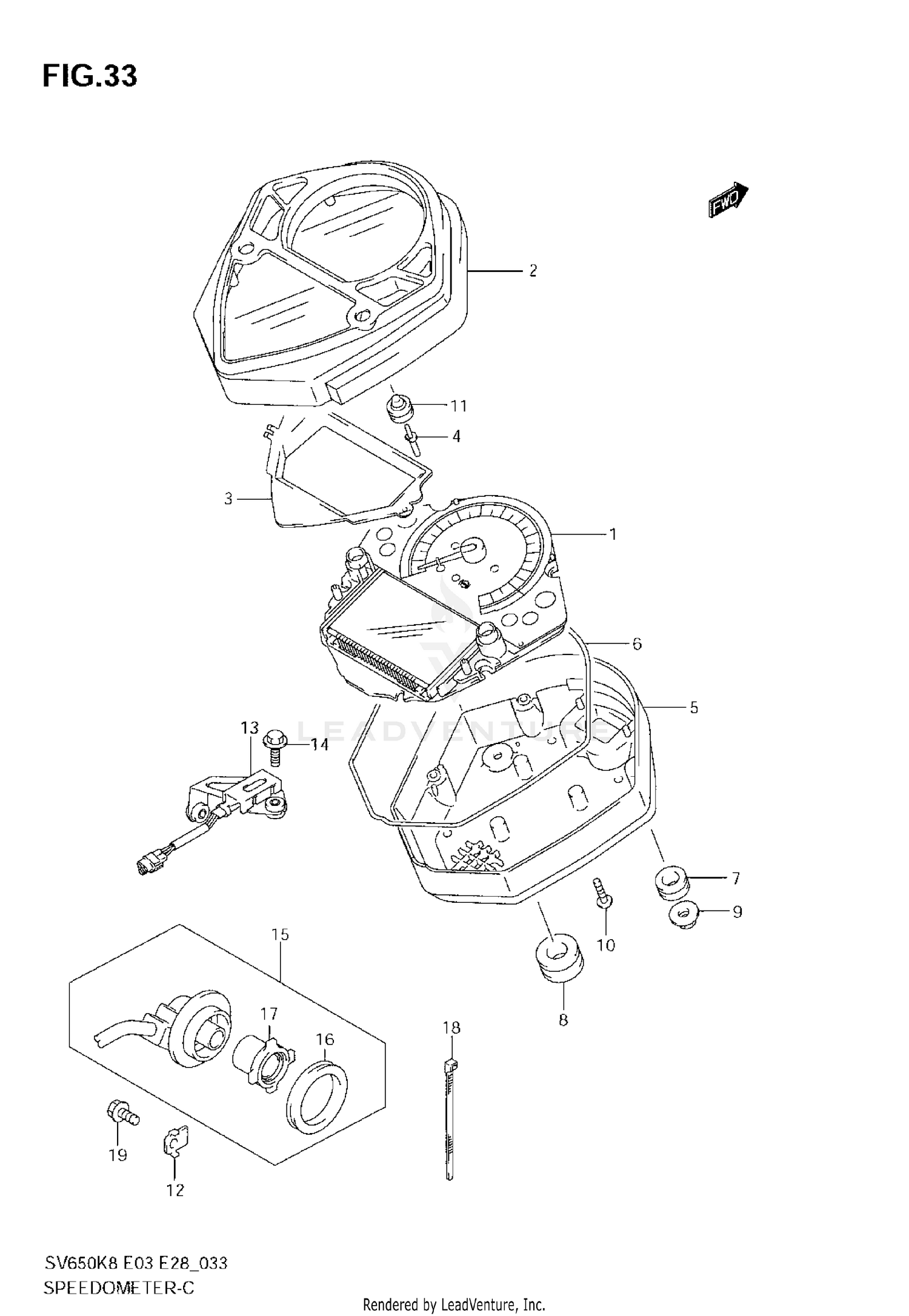

Speedometer (sv650sak8) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER (MILE/KILO)
34120-17GH0
|
$693.59 | ||
|
Unavailable |
|||
|
#1
SPEEDOMETER (KILO)
34120-17GF0
|
|||
|
Unavailable |
|||
|
#2
CASE, SPEEDOMETER UPPER
34150-16G00
|
$178.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, SPEEDOMETER
34125-16G00
|
$12.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
KNOB, SPEEDOMETER
34124-16G00
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, SPEEDOMETER LOWER
34152-16G00
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, METER CASE
34153-16G00
|
$17.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION, SPEEDOMETER
34189-32B00
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-05044
Superseded by 09159-05049
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SPEEDOMETER
34183-16G30
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
34126-16G00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE,SENSOR LEAD
34938-14F00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
RESISTOR ASSY
36510-16G00
|
$87.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X25)
09116-06047
|
$1.82 | ||
|
Unavailable |
|||
|
#15
SENSOR, SPEED
34990-17G50
|
$244.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, SENSOR OIL
09286-44001
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
MAGNET
34983-27G00
|
$42.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, SENSOR LEAD GUIDE
01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
