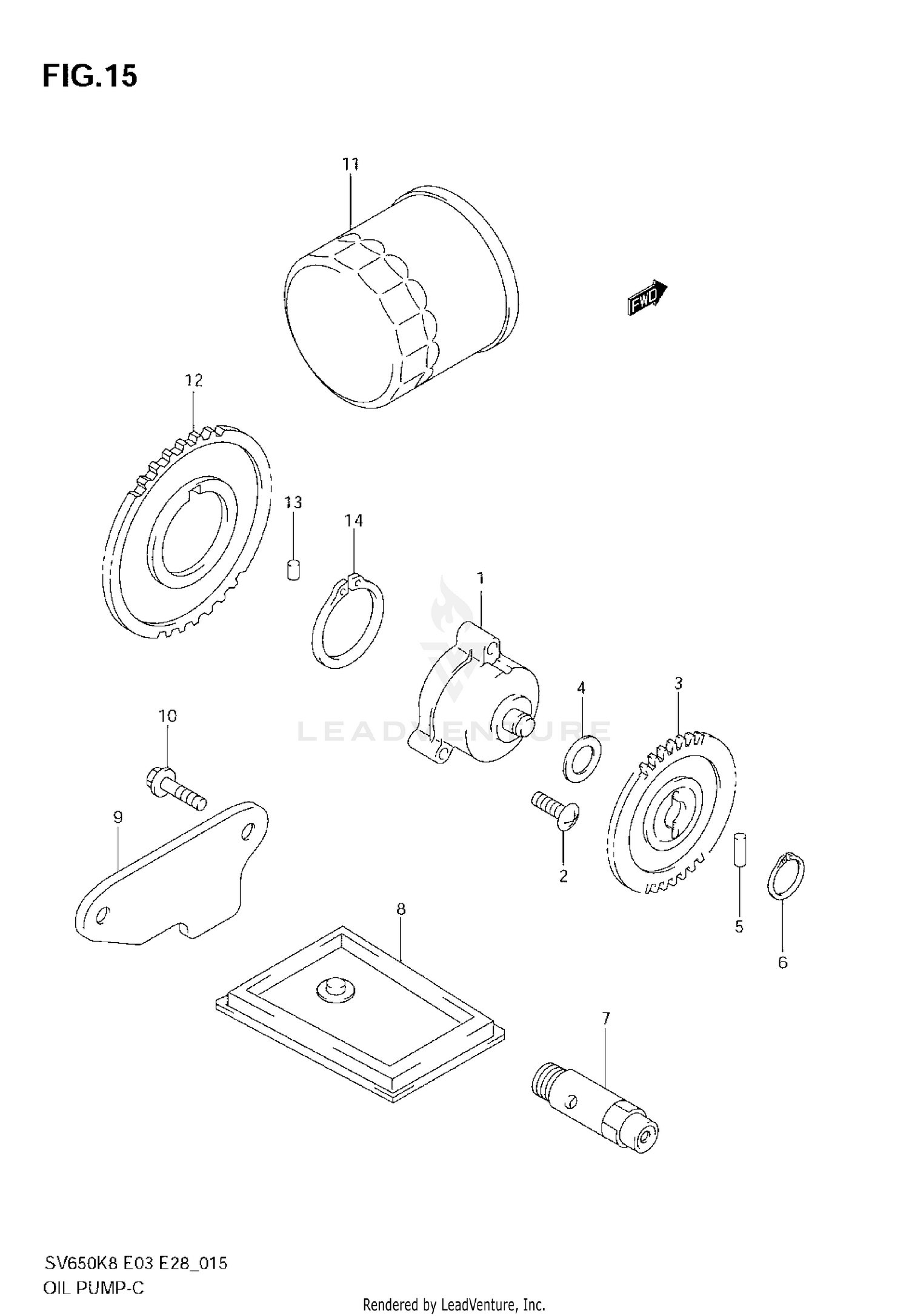

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,ENG OIL
16400-20F00
|
$231.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,ENG OIL PUMP DRIVEN (NT:
16331-19F00
|
$39.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN (4X18.5)
09261-04001
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE ASSY,OIL RELIEF
16440-17C20
|
$71.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
STRAINER,ENG OIL
16520-32E00
Superseded by 16520-32E01
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP,OIL STRAINER
16523-17G00
|
$8.07 | ||
|
Unavailable |
|||
|
#10
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
FILTER ASSY,ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GEAR,ENG OIL PUMP DRIVE (NT:4
16321-19F00
|
$74.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN (OD:6,L:6)
09261-06002
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
08331-31383
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
