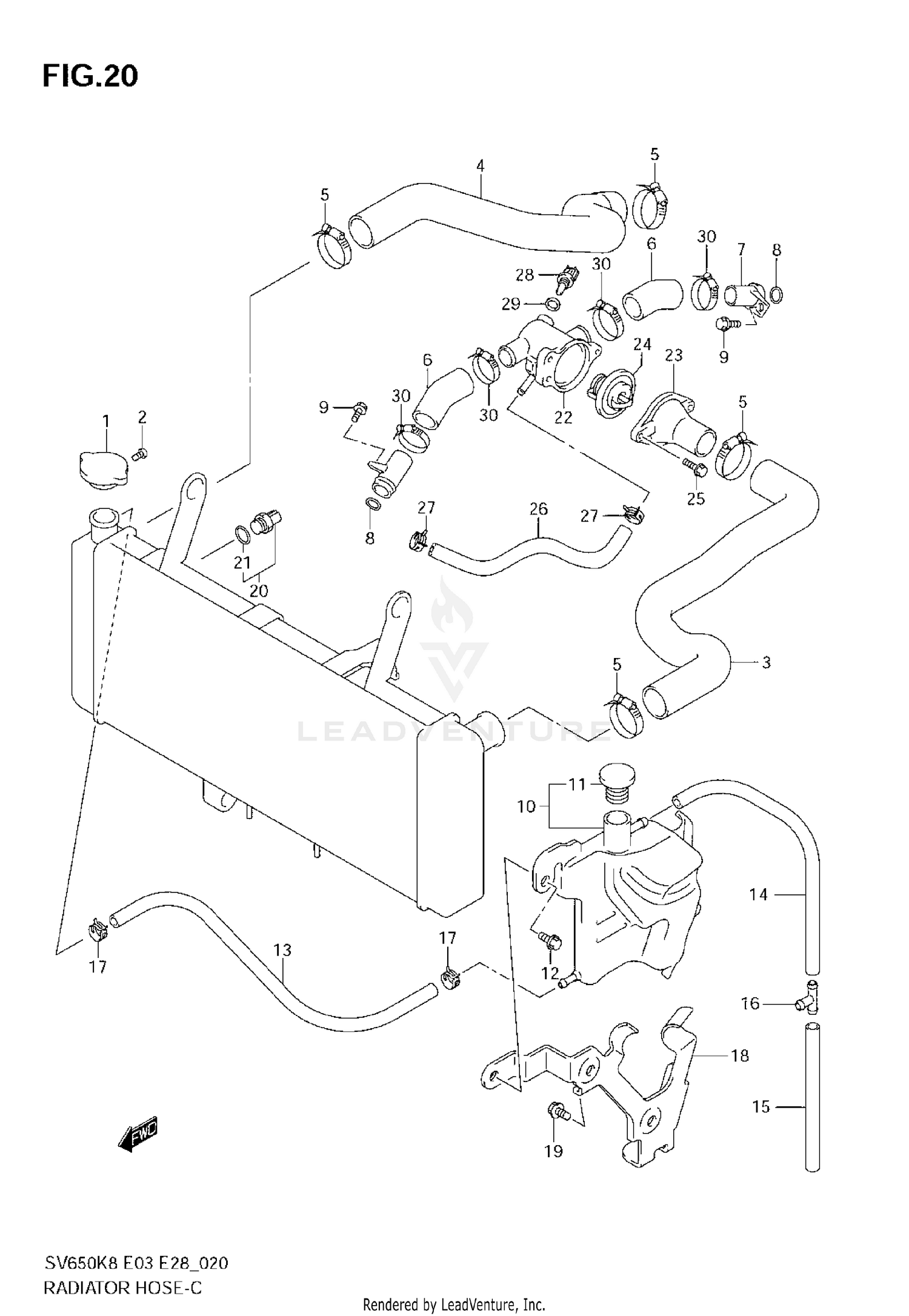

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP,RADIATOR (1.1)
17730-19D11
|
$54.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,RADIATOR CAP
17733-03D10
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, RADIATOR INLET
17851-17G10
|
$39.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, RADIATOR OUTLET
17852-17G20
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
09402-38512
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE,CONNECTOR INLET
17853-19F00
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNION, CONNECTOR HOSE
17890-06G20
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING
09280-18009
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK ASSY, RESERVOIR
17910-17G10
|
$72.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
.CAP
17931-02FA0
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE (5X9X600)
09352-50901-600
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE (5X9X600)
09352-50901-600
|
$10.30 | ||
|
Unavailable |
|||
|
#15
HOSE(7X10.2X600
09352-70103-600
Superseded by 09352-70104-600
|
$7.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT
09367-08005
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, RESERVOIR TANK
17920-17G10
|
$14.82 | ||
|
Unavailable |
|||
|
#19
BOLT
01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH COMP,FAN
17680-50F10
Superseded by 17680-50F11
|
$88.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING
17689-50F00
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#22
CONNECTOR,THERMOSTAT,INLET
17662-02F11
|
$72.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP,THERMOSTAT CONNECTOR
17663-17G00
|
$33.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
THERMOSTAT,WATE
17670-06G70
Superseded by 17670-06G71
|
$46.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
.BOLT
01550-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, CONNECTOR TO WATER PUMP
17856-19F00
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
09401-12409
Superseded by 09401-12414
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
SENSOR, WATER TEMPERATURE
13650-57F00
|
$136.54 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
09402-28513
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
